10. Sections are assembled on the ground in the following order;
bottom section (410044 base extension); second section (10468
3-step ladder); third section (10470 3-step ladder w/ stabilizer bar
mount); fourth section (10468 3-step ladder); top section (assem-
bled top platform section). sEE fINIshED RElAX WIDE lADDER.
11. With all sections assembled together on ground, secure all sec-
tions together using (8) provided spring lock pins. Handle of
spring lock pin must be put to the outside of ladder side rails. sEE
fIGuRE 8.
12. a. Attach the removable shooting rail by setting rail down over
the bolt-on posts. sEE fIGuRE 9. Lubrication is recommended to
prevent binding and noise.
b. Attach the (2) provided 9” and (1) provided 18” camo foam
pads to the main side rails (armrests) and shooting rail by
wrapping around tubing and attaching velcro together.
13. a. Attach the stabilizer bar extension tube (1ML23) to the second
ladder section mounting bracket using (1) provided spring lock
pin. sEE fIGuRE 10.
b. Slide the stabilizer bar (L17) into the extension tube and attach
the two pieces together using (1) provided spring lock pin. Spring
lock pin must go through both the extension tube and stabilizer
bar at appropriate hole to achieve desired distance from tree.
Adjustment in length may be needed when ladder is uprighted
later in instructions. sEE fIGuRE 10.
14 a. Tie one end of the provided 9’ rope to the link welded onto the
stabilizer bar, just in front of the tree hugger. Be sure your double
knots are secure. sEE fIGuRE 11.
b. Tie one end of each of the provided 15’ ropes to the square tube
of tree blade frame, just in front of the tree blades. Be sure your
double knots are secure. sEE fIGuRE 11.

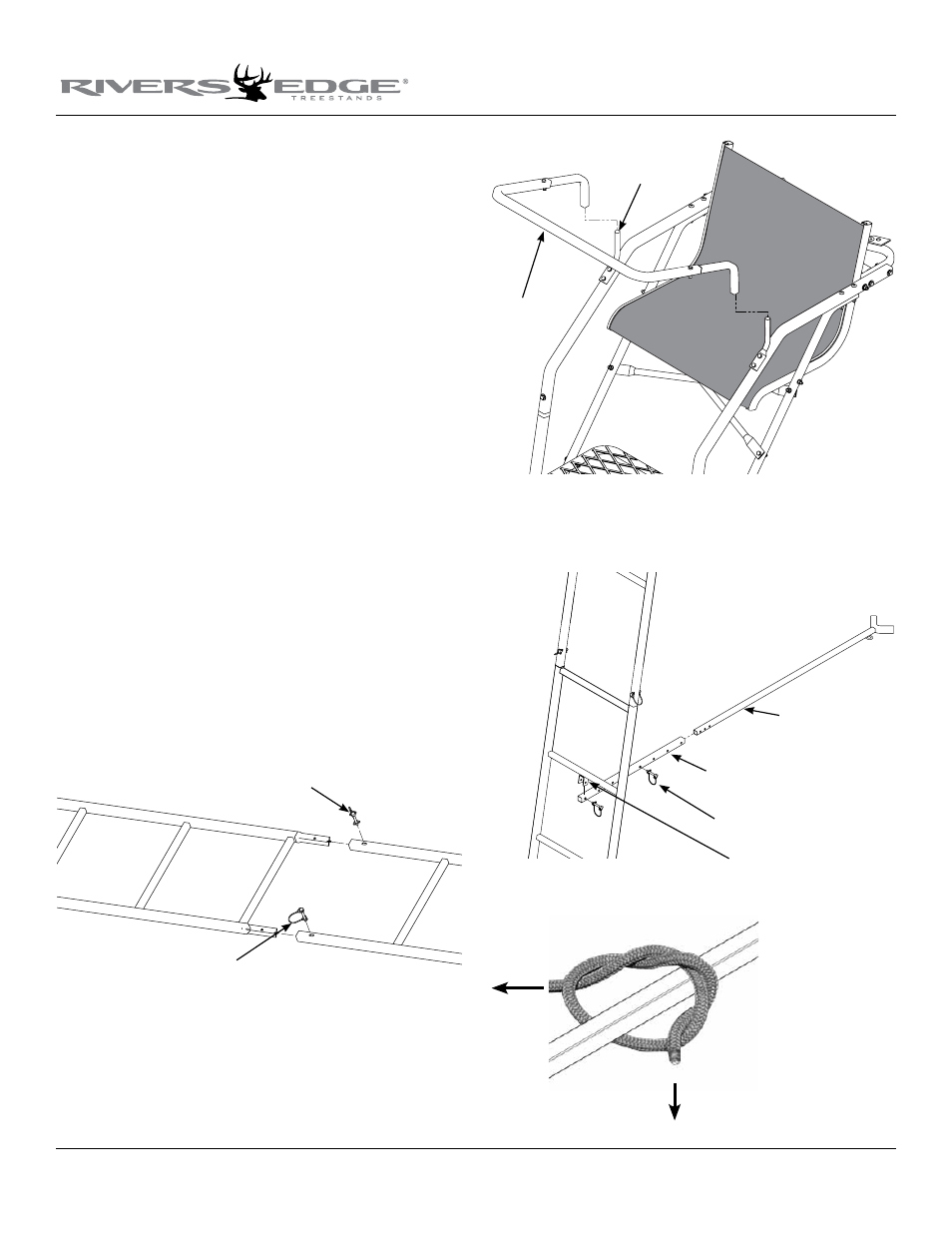

Figure 9
Figure 8
Figure 10
Figure 11
spring lock pins
spring lock pins
removable
shooting rail
shooting rail posts
spring lock pins
stabilizer bar extension
tube
stabilizer bar
mounting bracket
