10. Attach the (2) provided 9” camo foam pads to the main side
rails (armrests) by wrapping around tubing and attaching velcro
together.
11. a. Attach the stabilizer bar extension tube (1ML23) to the second
ladder section mounting bracket using (1) provided spring lock
pin. sEE fIGuRE 7.
b. Slide the stabilizer bar (L17) into the extension tube and attach
the two pieces together using (1) provided spring lock pin. Spring
lock pin must go through both the extension tube and stabilizer
bar at appropriate hole to achieve desired distance from tree.
Adjustment in length may be needed when ladder is uprighted
later in instructions. sEE fIGuRE 7.
12. a. Tie one end of the provided 9’ rope to the link welded onto the
stabilizer bar, just in front of the tree hugger. Be sure your double
knots are secure. sEE fIGuRE 8.
b. Tie one end of each of the provided 15’ ropes to the square
tube of tree blade frame, just in front of the tree blades. Be sure
your double knots are secure. sEE fIGuRE 8.

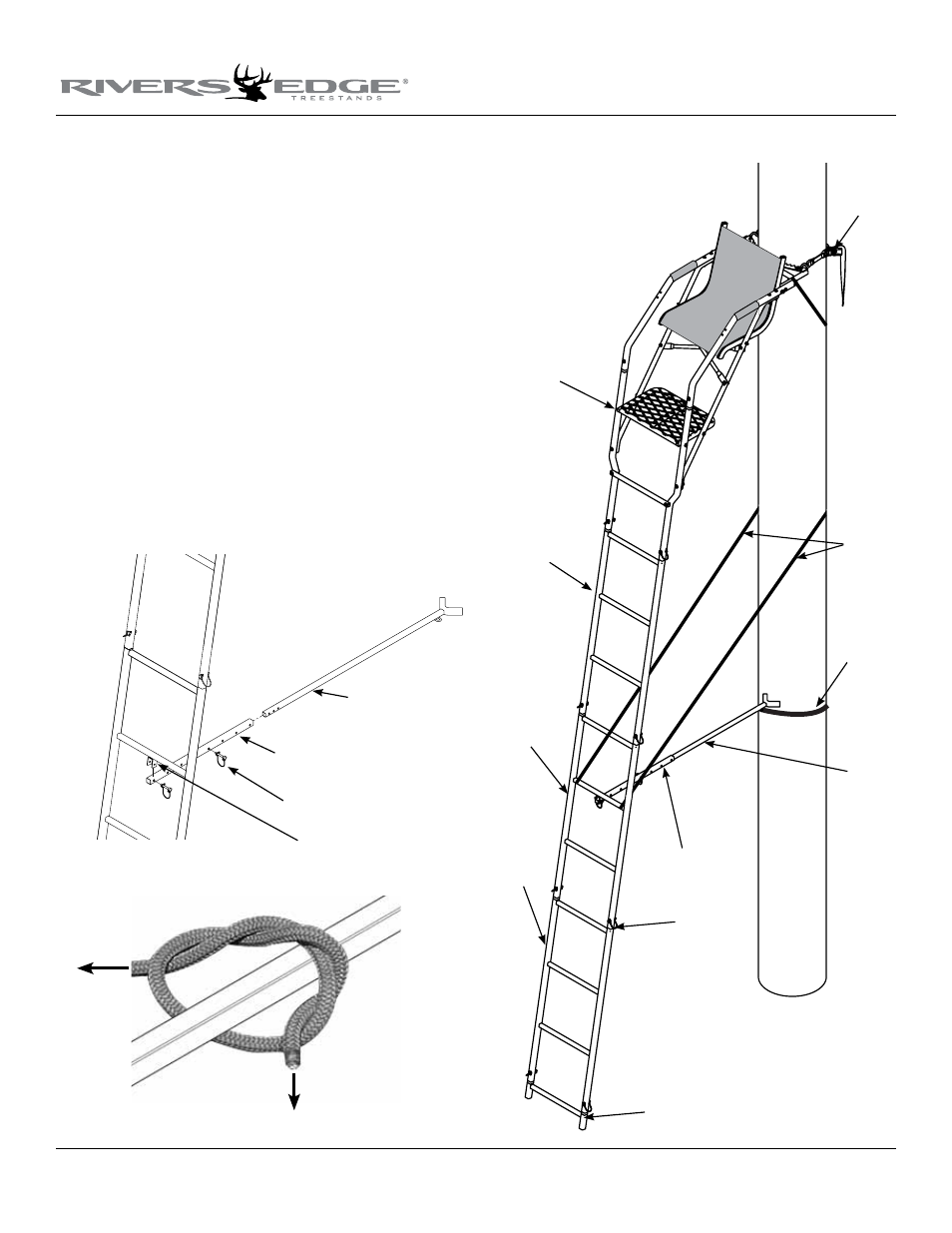

Figure 7
Figure 8
spring lock pins
stabilizer bar extension
tube
stabilizer bar
mounting bracket
second
section
third
section
fourth
section
top
section
ratchet
strap
15' tie-off
ropes
9' stabilizer
bar rope
stabilizer
bar
stabilizer bar
extension tube
spring
lock pins
finished Relax™ ladder
bottom section
