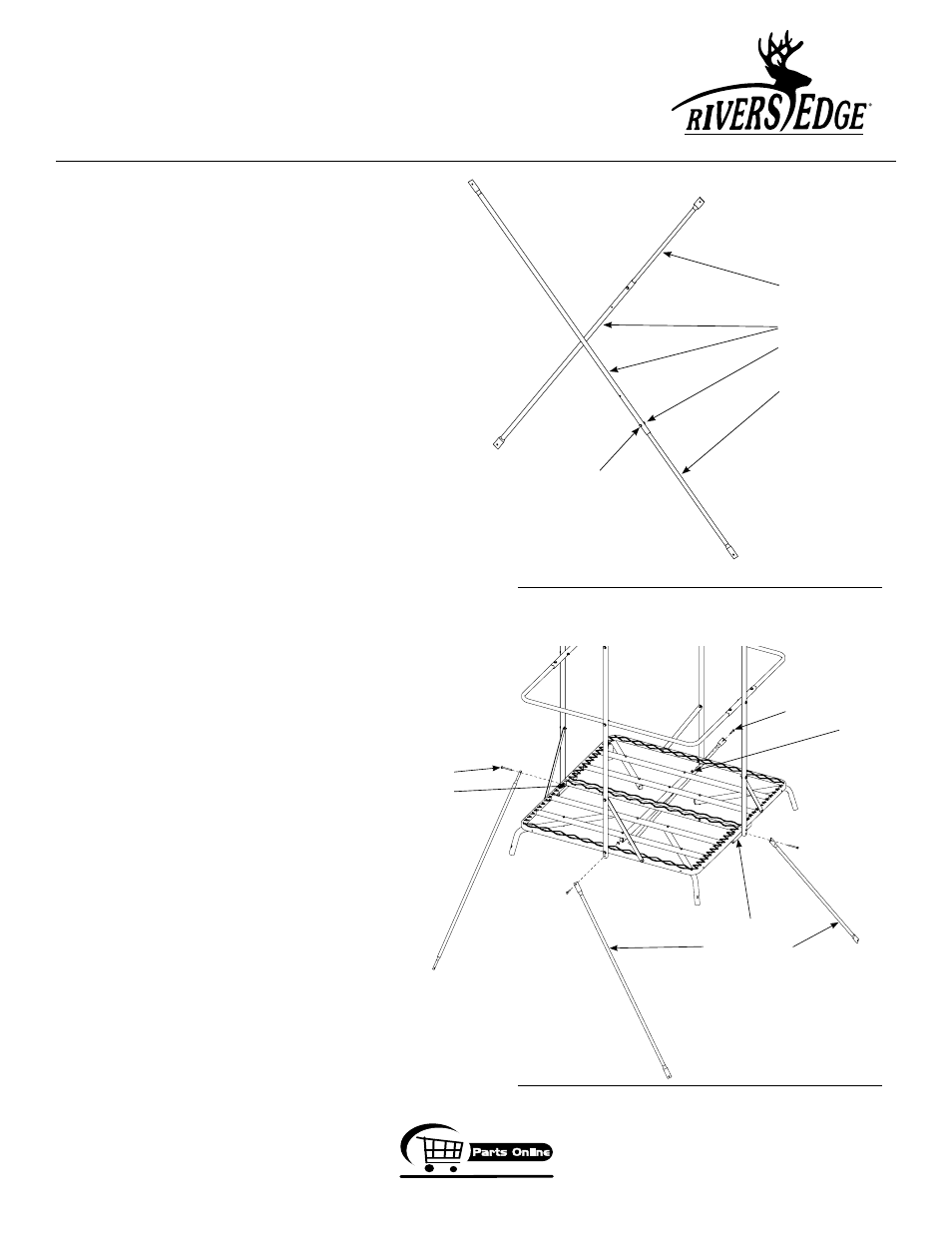

15. a. Locate the (8) male cross braces (TP132) and the (8) female cross
braces (TP131). Insert the male cross braces into the female cross
braces.
b. Using (8) provided 1/4-20 x 1-1/4” bolts and locknuts, secure the cross
braces in the hole location listed in
fIGURE 9. When assembled together,
all eight cross brace assemblies should measure approximately 88-3/4"
from end to end.
16. a. Attach (2) double flat braces (TP135) to the bottom hole of each blind
upright (TWr18) that is already attached to the long side of each platform
using (2) provided 1/4-20 x 1-1/2” bolts and locknuts.
SEE fIGURE
10.
b. Attach remaining (2) double flat braces to blind uprights/platform joiner
tubes using (2) provided 1/4-20 x 2-1/2” bolts and locknuts.
SEE fIGURE
10.
NOTE: You will use the same 2-1/2" bolt and locknut that is already
holding the blind uprights to the platform joiner tubes.
fIGURE 9
male cross braces
female cross braces
locknuts
male cross braces
1/4-20 x 1-1/4" bolts
1/4-20 x 2-1/2" bolts
locknuts
1/4-20 x 1-1/2" bolts
locknuts
platform joiner tubes
double flat braces
fIGURE 10
