12. Attach foot pads (TP113) to four of the eight leg sections (TWr20) using
(4) provided 1/4-20 x 1-1/2” bolts and locknuts. SEE fIGURE 8. This
step now makes these four legs, the bottom section legs.
NOTE: Be sure foot pads are oriented correctly in relation to the
welded on bracket of leg section. Channel on foot pads should
touch on three sides of the leg sections. SEE FIgURE 8.
13. Insert each of the four remaining (top) leg sections into the bottom leg
sections by inserting into pocketed end of bottom leg section. Attach
each section together using (4) 1/4-20 x 1-1/2” bolt and locknut.
SEE
fIGURE 8.
NOTE: Be sure the welded on brackets on each leg section are
oriented correctly in relation to each other. SEE FIgURE 8.
14. With assembled platform section laying on its side, insert all four
assembled leg sections onto each leg receiver J-pipe using (4) provided
1/4-20 x 1-1/2” bolts and lock nuts.
SEE fIGURE 8.
NOTE: Be sure the foot pads are oriented outward from the platform.
SEE FIgURE 8.

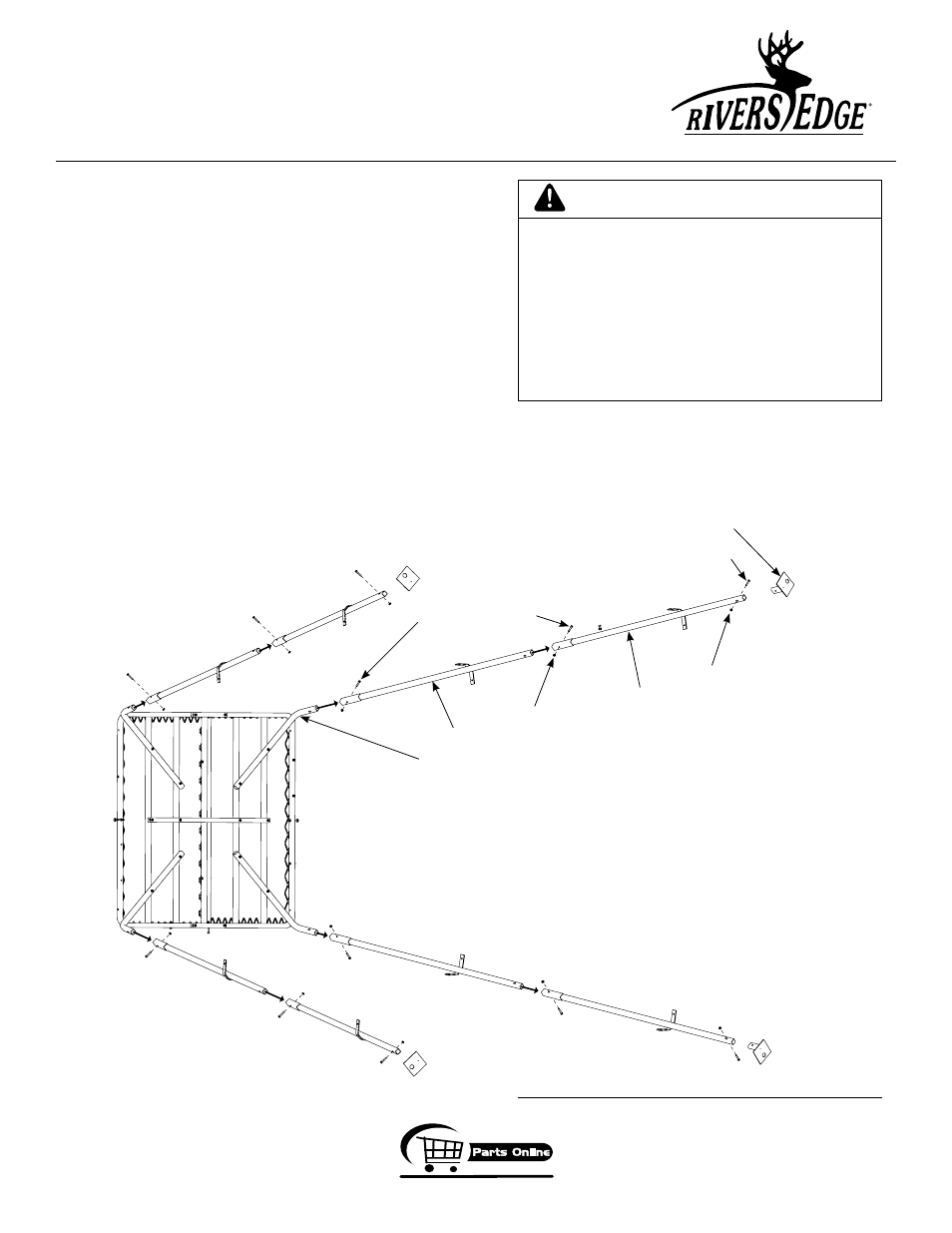

fIGURE 8
wARNING
LUBRICATION IS HIGHLY RECOMMENDED AT SLIDE TO-
GETHER POINTS Of EACH SECTION TO PREVENT BIND-
ING. SECTIONS ARE STACKED TOGETHER BY SLIDING
SECTIONS TOGETHER, INSIDE Of EACH OTHER.
BE SURE ALL LEG SECTIONS ARE SEATED COMPLETE-
LY TOGETHER ON POCKETED ENDS Of PIPE.
CHECK EVERY LADDER/LEG SECTION CONNECTION
EVERY TIME YOU USE STAND BEfORE LEAVING THE
GROUND. DO NOT USE If SECTIONS ARE SEPARAT-
ING.
foot pads
1/4-20 x 1-1/2" bolts
locknuts
bottom leg sections
1/4-20 x 1-1/2" bolts
locknuts
top leg sections
leg receiver J-pipes
