10' Outpost ™ Tower w/ Blind Kit (RE703)
HuntRiversEdge.com
800-450-EDGE (3343)
9. Insert (2) rail extension tubes (TWr27) into the two blind uprights that are
attached to the outside platform joiner using (2) provided 1/4-20 x 1-1/4”
bolts, locknuts and washers.
SEE fIGURE 7.
10. Insert blind roof rail (TWr28) into the two blind uprights that are attached
to the long side of both platforms using (2) provided 1/4-20 x 1-1/4” bolts,
locknuts and washers.
SEE fIGURE 7.
11. a. Insert (2) blind rim rails (TWr19) into (2) rail spanner tubes (TWr26)
forming a square. Align the four holes and insert (4) provided 1/4-20 x
1-1/4” bolts, locknuts and washers.
SEE fIGURE 7.
b. Assemble this square to the inside the rail extension tubes and blind
roof rail by attaching (2) rail spanner tubes to the blind roof rail using (2)
provided 1/4-20 x 2-1/4” bolts, locknuts and washers.
SEE fIGURE 7.
c. Attach the two blind rim rails to the two rail extension tubes using (2)
provided 1/4-20 x 2” bolts, locknuts and washers.
SEE fIGURE 7. You
must now tighten all nut & bolt assemblies. Be sure not to over tighten
or crush tubing when tightening!

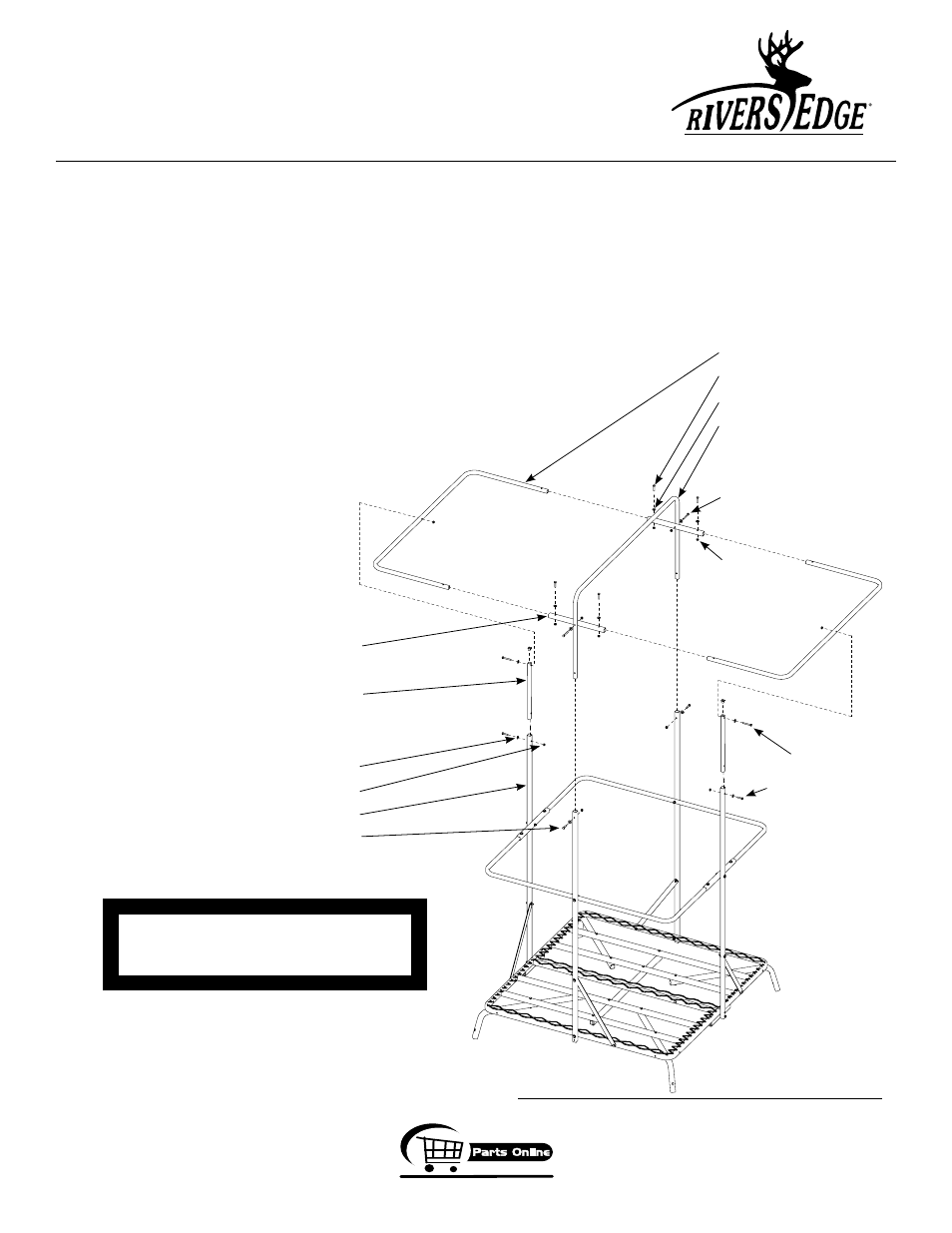

fIGURE 7
rail spanner tubes
rail extension tubes
washers
locknuts
blind uprights
1/4-20 x 1-1/4" bolts
blind rim rails
1/4-20 x 1-1/4" bolts
washers
blind roof rail
1/4-20 x 2-1/4" bolts
locknuts
1/4-20 x 2" bolts
1/4-20 x 1-1/4" bolts
NOTE: Blind roof rail must be assembled
as shown or camo blind cover door will
not line up with ladder.
