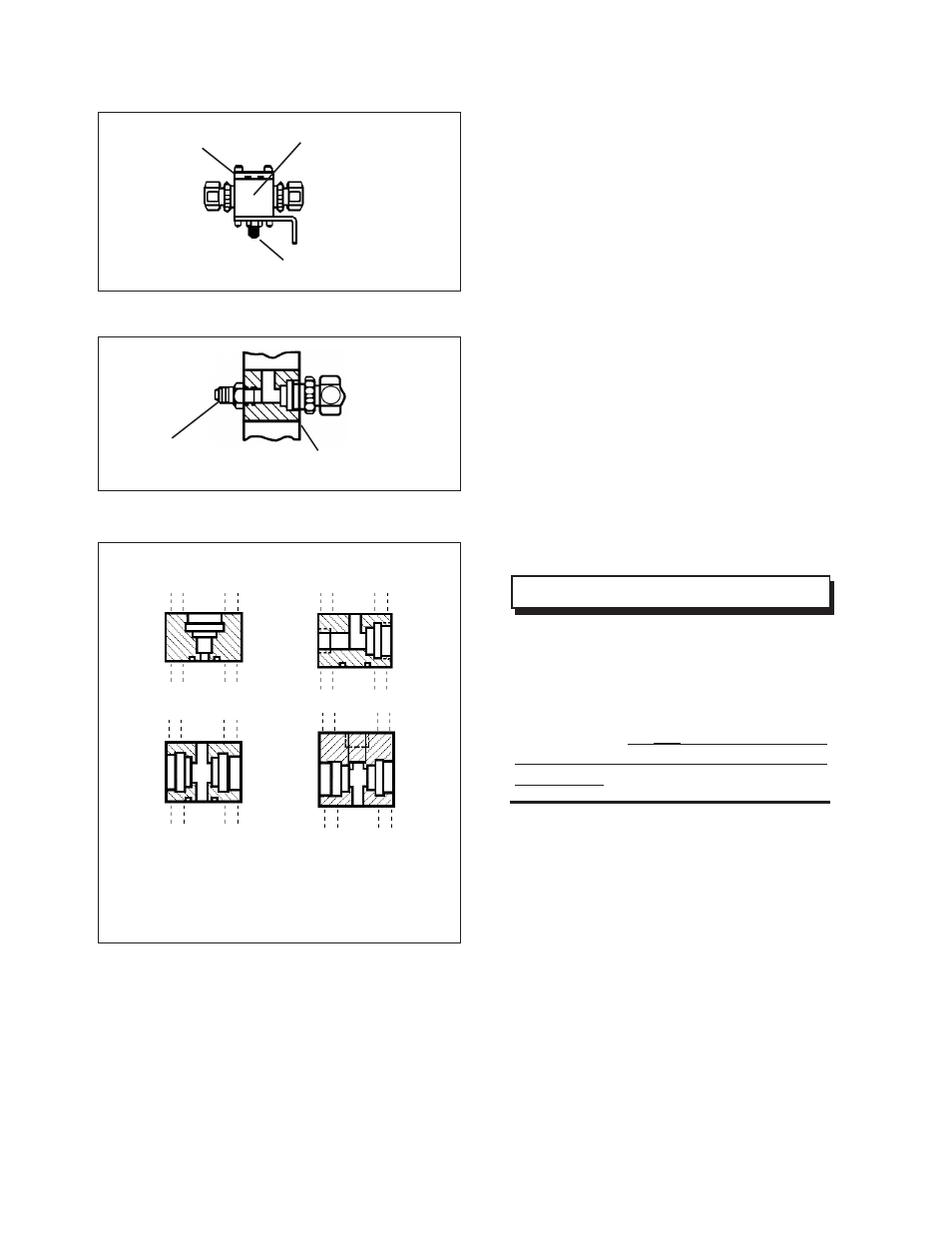

Figure 2: Two Valve Manifold Assembly
Figure 3: Manifold Divider Block
Figure 4: Available Manifold Blocks
Figure 3 shows the four manifold blocks that can
be used in a manifold system. In additon, CCV-
36-SS separator plate (Figure 2) can also be used.
In Figure 4, shown by the block inlets/outlets, are
numbers indicating hardware to be installed at
these locations. T`he dotted lines indicate the
path of the mounting studs which hold the blocks
in place. The o-ring slots are shown (o-rings are
not included on CCV-18-SS). O-rings are included
in KK-4901 Manifold Assembly Kit.
KK-4901 Manifold Assembly Kit
The kit includes threaded rod, lockwashers, nuts,
two (2) mounting brackets, and twelve (12) o-rings
which will allow assembly. A spanner tool, part
CCV-7, is also included in this kit. This tool in-
serts into any one of the holes in the spanner nut
and is used to tighten or loosen the nut. This is
convenient in close clearances where a wrench
may not fit.
>
Tighten CCV-403-SS valve assembly
and KK-4370 plug kit (when used) to man-
ifold using 132-156 lbs•in torque. Do Not
Over-Tighten. Use a good quality pipe
sealant on all threads of air and fluid
connections. Do not use sealant or tape
on CCV-403-SS valve when assembling
to manifold.
NOTE
1 = CCV-403-SS = Valve Assembly
2 = KK-4370 = Plug Kit
3 = LSFI0033 = Adapter
LSFI0033 Adapter
CCV-17-SS End Valve
Manifold Block
CCV-38-SS Manifold
Divider Block
CCV-16-SS
Manifold Block
CCV-18-SS Open
Manifold End Cap
1 or 2
1 or 2
1 or 2 1 or 2
1 or 2
1 or 2
3
3
CCV-36-SS
Separator Plate
CCV-18-SS
Open Manifold End Cap
41-FTC-1002 Adapter
