Ransburg, Mcv color changer - parts identification – Ransburg MCV Series Module Color Changer 78011-XX User Manual
Page 32
1 7924400 Plug
1
2
79001-19
O-Ring, Solvent Proof
1
3
79001-14
O-Ring, Solvent Proof
1
4
77618-00
Plug, Seat
1
Item #
77620-00 VALVE PLUG KIT (Optional)
(Use in place of Valve & Seat) (Figure 20b)
Part #
Description
Qty
1
79001-01
O-Ring, Solvent Proof
1
2
79001-02
O-Ring, Solvent Proof
2
3
79001-14
O-Ring, Solvent Proof
1
Item #
78949-00 VALVE & 77367-00 SEAT REPLACEMENT PARTS (Figure 20a)
Part #
Description
Qty

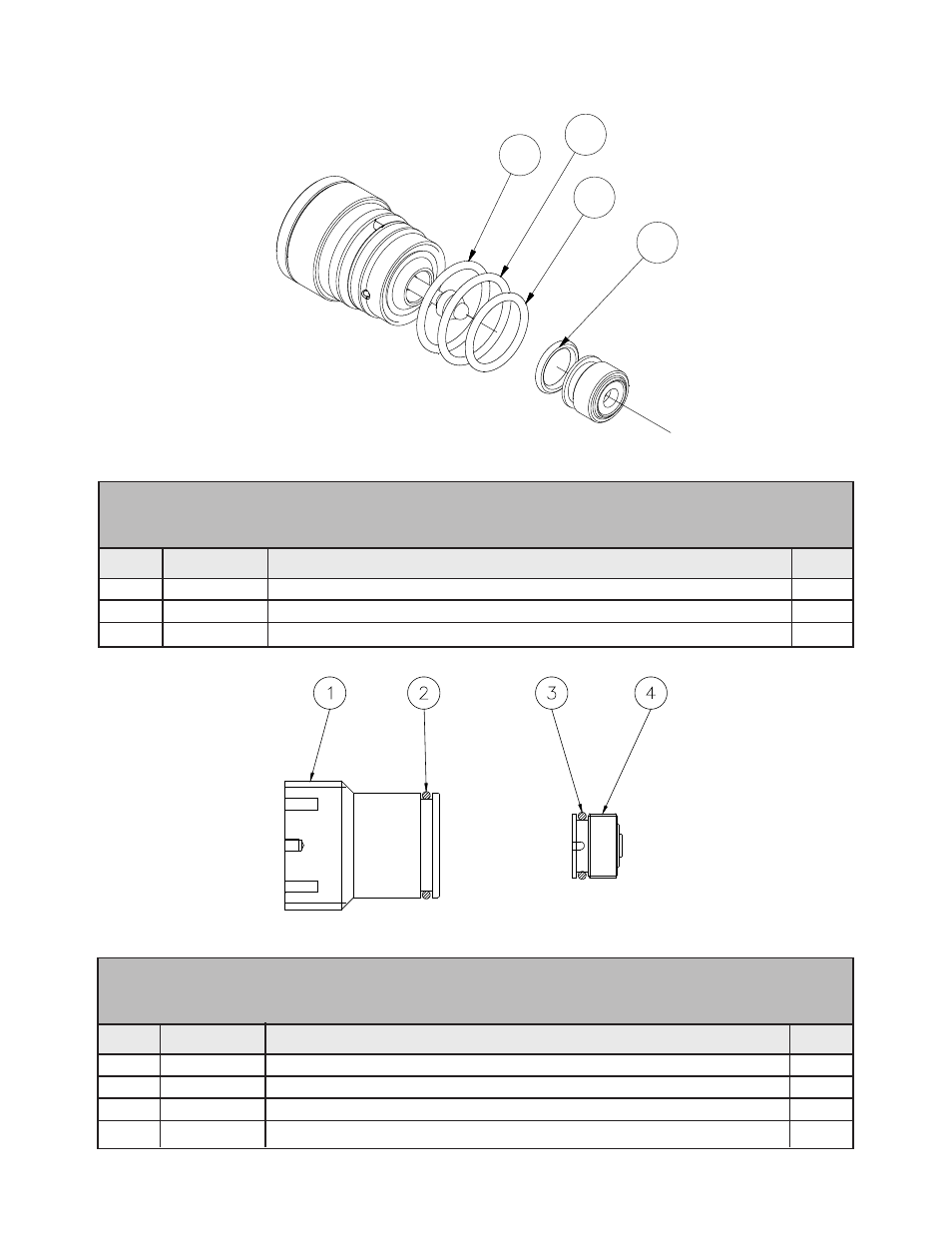

Figure 20a: 78949-00 Valve and 77367-00 Seat Replacement parts
Figure 20b: 77620-00 Valve Plug Kit (Optional)
3
2
1
2
MCV Color Changer - Parts Identification
CS-01-01.8
29
Ransburg
