Ransburg MCV Series Module Color Changer 78011-XX - Manual (Page 28)

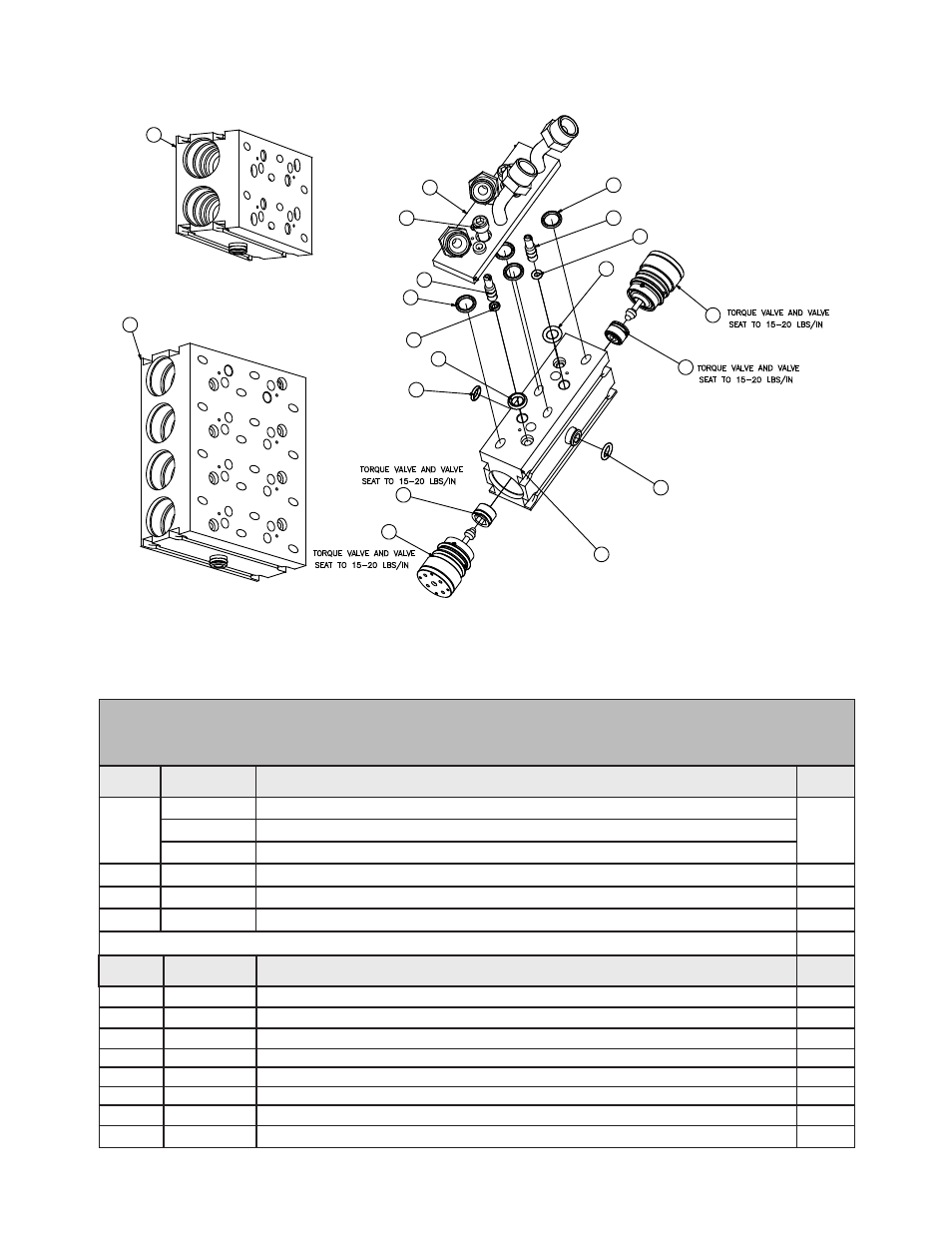

Figure 17: Manifold Assembly
Note: Below are per 2 valve color slice quantities.
1 A10458-02 Assembly, Block MCV Stack 2-Color 1
A10458-04 Assembly, Block MCV Stack 4-Color
A10458-08 Assembly, Block MCV Stack 8-Color
1A 79001-05 O-Ring, Solvent Proof (Included with Block Assembly) 1
1B 79001-06 O-Ring, Solvent Proof (Included with Block Assembly) 1
1C 77957-00 Retaining Clip, Color Changer 2
Item #
MANIFOLD ASSEMBLY - PARTS LIST (Figure 17)
Part # Description Qty
2 77367-00 Assembly, Valve Seat 2
3 78949-00 Assembly, Valve 2
4 78068-00 Assembly, Fitting Plate Color Valve 1
5 7554-115 O-Ring, Solvent Resistant 2
6 7959-16c Screw, 1/4-20 X 3/4” Long, SHCS 2
7 77950-00 Shutoff Valve 2
8 79001-16 O-Ring, Solvent Proof 2
9 79001-04 O-Ring, Solvent Proof 4
Item # Part # Description Qty
1
1
5
5
1B
1A
8
7
9
3
2
3
2
1
8
7
9
6
4
MCV Color Changer - Parts Identification
CS-01-01.8 25
Ransburg
