IP Address Menu

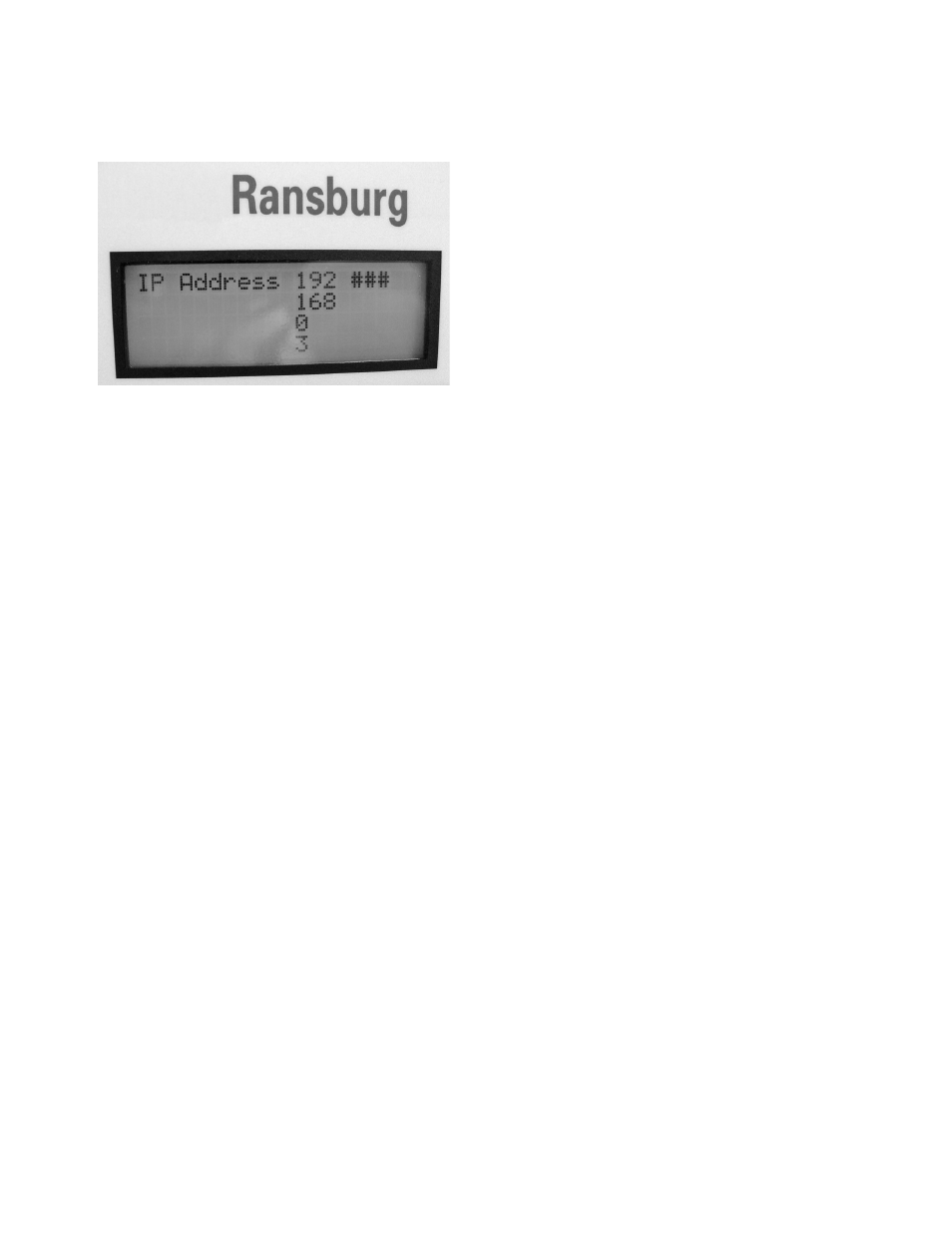

Figure 14: IP Address Menu Screen
This menu allows the setting of the units IP Address.
When the new IP Address has been entered, the
unit must have the power cycled before the new
IP Address will be used.
Password Menu
This menu is different in that the "#'s" are displayed
below the password digit being changed instead
of beside them. When the password is entered,
the menu will return to the value being changed.
Enter New Password Menu
This menu is different in that the "#'s" are displayed
below the password digit being changed instead of
beside them. When the new password is entered,
it will now be used for all values being changed.
PARAMETERS AND
SETTINGS
Mode
The operating mode can be set to either Voltage
or Current mode. The mode selection determines
which independent setpoint is the basis for control.
kVSet
This is the voltage setpoint, used in Voltage
Mode. The system attempts to keep the voltage
at this value.
uASet
This is the current setpoint, used in Current Mode.
The system attempts to keep the current at this
value.
kV Limit Hi
This parameter determines the level where a kV
Limit Fault occurs. When the voltage rises above
this value, it issues a kV Limit Fault. It only applies
in Current Mode.
kV Limit Lo
This parameter determines the level where a kV
Limit Fault occurs. When the Voltage falls below
this value, it issues a kV Limit Fault. It only ap-
plies in Current Mode.
uA Limit Hi
This parameter determines the level where a Cur-
rent Limit Fault occurs. When the current rises
above this value, it issues a Current Limit Fault.
It only applies in Voltage Mode.
Di/dt Sensitivity
When a rapid current change occurs where cur-
rent rises faster than this value in approximately
100ms, it issues a di/dt fault. This is only active
in Voltage Mode.
Dv/dt Sensitivity
When a rapid voltage change occurs where volt-
age falls faster than this value in approximately
100ms it issues a dv/dt fault. This is only active
in Current Mode.
