OPERATION
MENUS AND OPERATION
On all of the menus, if there is a parameter that
can be changed there are a number of "#" char-
acters to show that it is an enterable value. If
there is more than one enterable value, pressing
the Up or Down Buttons will move the "#'s" to the
next changeable value. When the "#'s" are next
to the value you wish to change, press the Set
Button. This will bring up the Password Menu to
allow you to enter the password and change the
value. Once the password has been entered, it
will remain active for an appropriate amount of
time and then time out, requiring you to re-enter it.
When a valid password has been entered for any
value (even if the value has not been changed)
different menus will be available. These Menus
are the Display Contrast Menu, the IP Address
Menu, and the Enter New Password Menu.
When a numeric value is being changed (using
the buttons to the left and right of the SET But-
ton) the numeric will increase with the right button
and decrease with the left button until it passes
the maximum or minimum allowed value at which
time it will "roll over" to the other limit.
Start-Up Menu
This is the menu that displays on the unit for 5
seconds (approximately) at power up. It displays
the Model Number, Copyright Date, Serial Num-
ber, Software Version, and Hardware Version of
the unit. It then changes to the Run Menu. If the
Set Button is pressed while this menu is still up,
the system changes to the display contrast Menu
automatically to allow for contrast adjustment on
initial power up.
Run Menu

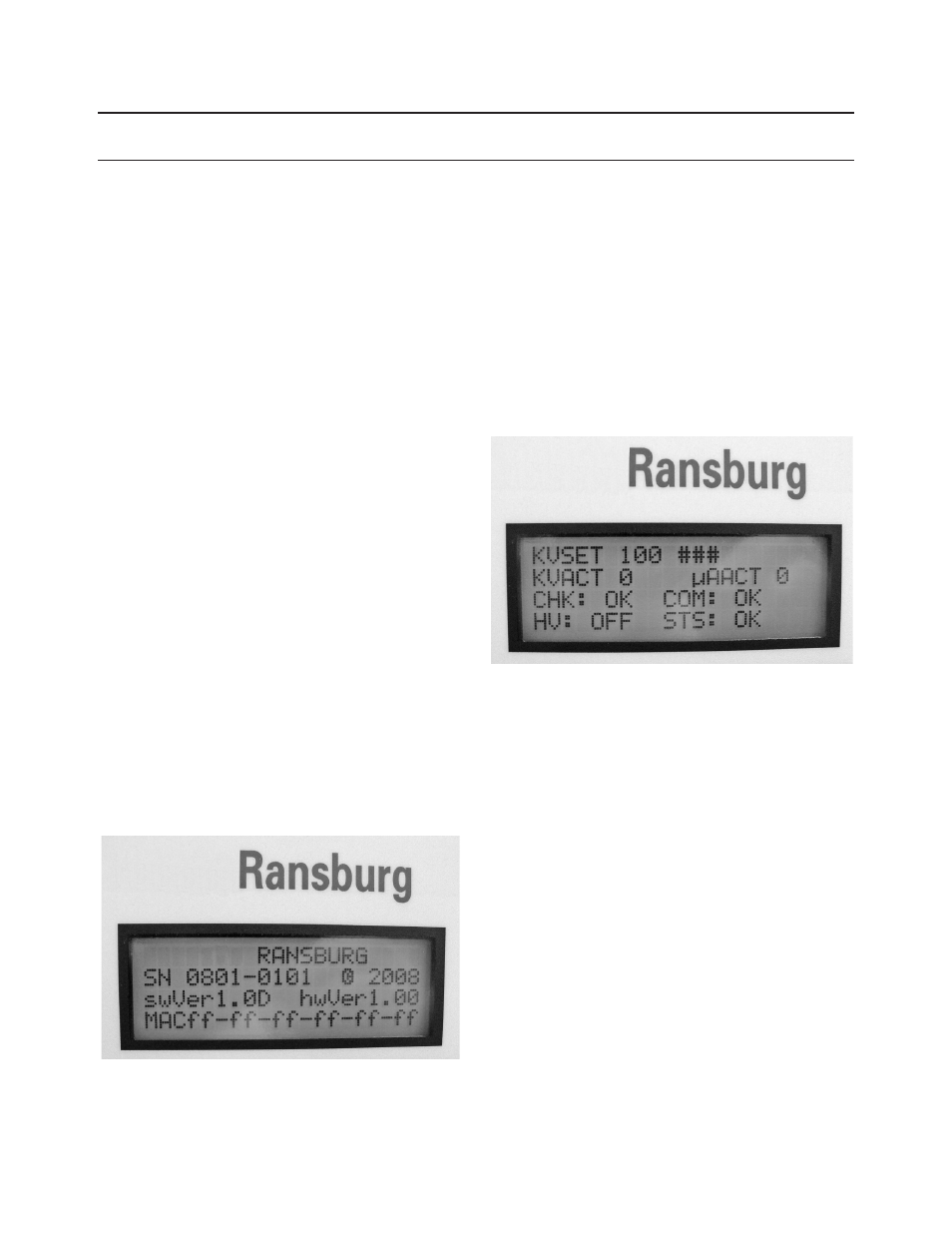

Figure 9: Start-Up Menu Screen
Figure 10: Run Menu Screen
This menu displays the setpoint (KVSET if in Volt-
age Mode, uASET if in Current Mode), the current
actual KV value, the current uA value, the current
hardware check value, the High Voltage status,
and the current controller status. The setpoint
(KVSET or uASET) is the only changeable value
on this menu.
