Page 12: Input power connections
INSTALLATION
INSTALLATION

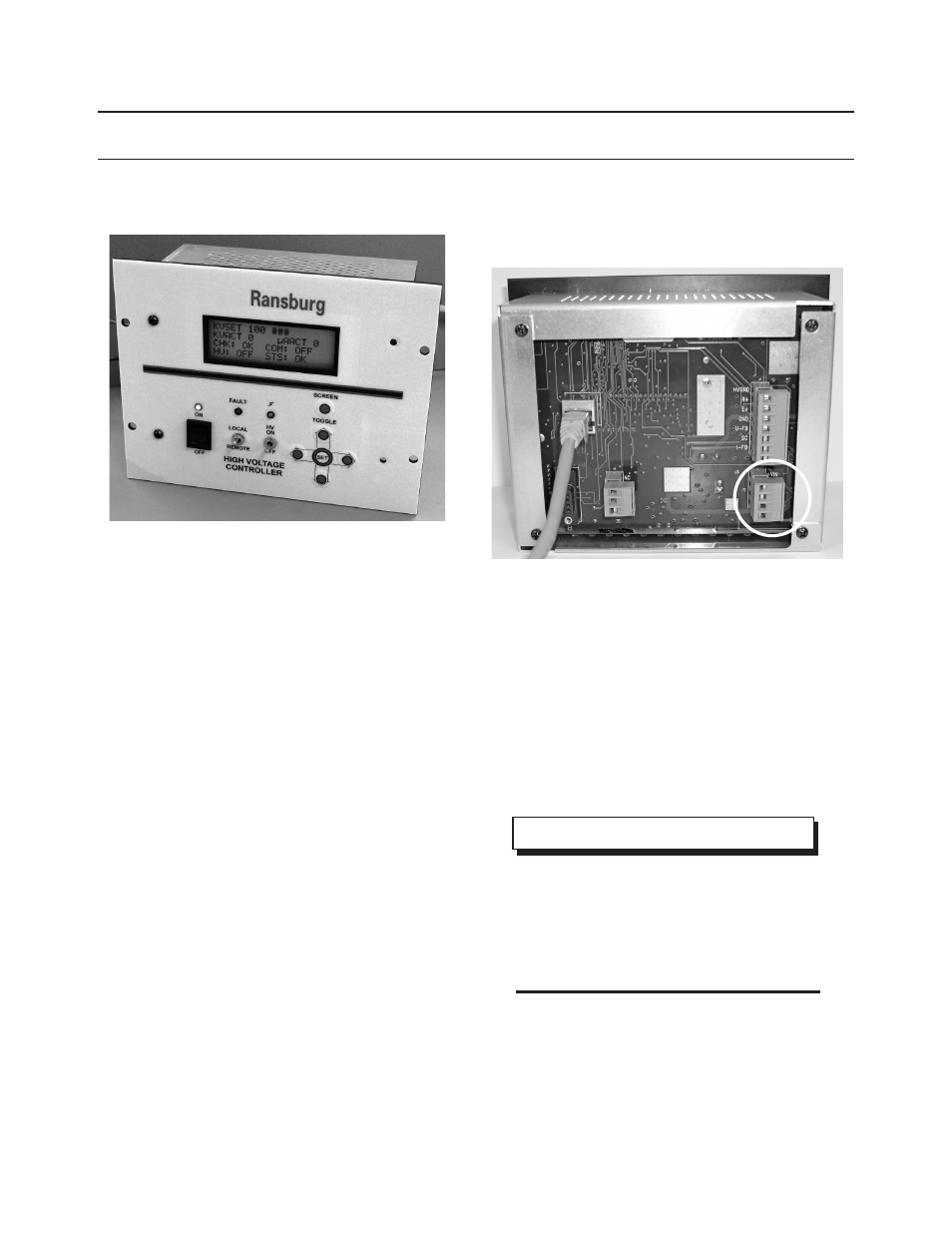

Figure 4: Installation
MOUNTING
Using four (4) each 10" X 32" or M-5 screws (not
included), secure the front panel of the High Volt-
age Controller, using the supplied mounting holes,
to enclosure.
Figure 5: Input Power Connections
INPUT POWER
CONNECTIONS
> The Ransburg High Voltage Controller
has a built in resettable fuse so if it draws
a current in excess of 2.5 amps it will open.
Reset is achieved by turning controller
power OFF for 5 minutes then back ON.
NOTE
Input power must be supplied from a regulated
DC power Supply. The connection is made at J8
with +VIN at 24VDC ± .5V, GND at 24VDC return,
CGND at Earth Ground. The 24 VDC supply must
be protected against excessive current as well as
Over Voltage protected.
High Voltage Controller - Installation
10
Ransburg
LN-9623-00.1
