LumaStream Trinity Power Cord User Manual

Page 6

Document: 66APPMAN-PC Rev: C

6 of 28

Table 6

TRINITY Power Cord DMX Model Options

Model #

# of

Channels

Drive

Current

Output Voltage

Range (under

load Condi-

tions)

Maximum #
of LEDs per

Channel

(typical)

66-12-0700-DMX-

700 mA

6 to 27 Vdc

2 to 8

66-9-1000-DMX-

1000 mA

6 to 27 Vdc

2 to 8

66-6-1400-DMX-PC

1400 mA

6 to 27 Vdc

2 to 8

70-12-0350-DMX-

350mA

12 to 47 Vdc

4 to 12

70-9-0500-DMX-

500 mA

12 to 47 Vdc

4 to 12

Table 7

DMX Interface Specifications

Control Method

DMX512-A

DMX Receiver Isolation

Isolated from earth ground

Start Codes

Will only respond to NULL START code

Packet Processing Latency

5ms Typical

Will Handle “Short Slots?”

Yes

Number of Dimmers on single
DMX512 universe

Up to 64 Driver/Dimmers can be daisy chained via DMX
connector loop through

Loss of DMX Input Signal

Outputs will go to 100% light intensity in less than 1 sec-
ond

Table 8

TRINITY Power Cord Analog Model Options

Model #

# of

Channels

Drive

Current

Output Voltage

Range (under

load Condi-

tions)

Maximum #
of LEDs per

Channel

(typical)

66-12-0700-ANA-PC

700 mA

6 to 27 Vdc

2 to 8

66-9-1000-ANA-PC

1000 mA

6 to 27 Vdc

2 to 8

66-6-1400-ANA-PC

1400 mA

6 to 27 Vdc

2 to 8

Trinity DMX

Trinity Analog

Document: 66APPMAN-PC Rev: C

23 of 28

Note: This wiring configuration provides dimming control for zones 1, 2, 3,
and 4 simultaneously with a wall box dimmer or commercial dimming
interface connected to the master 0-10 Vdc output of the TRINITY PC
ANALOG.

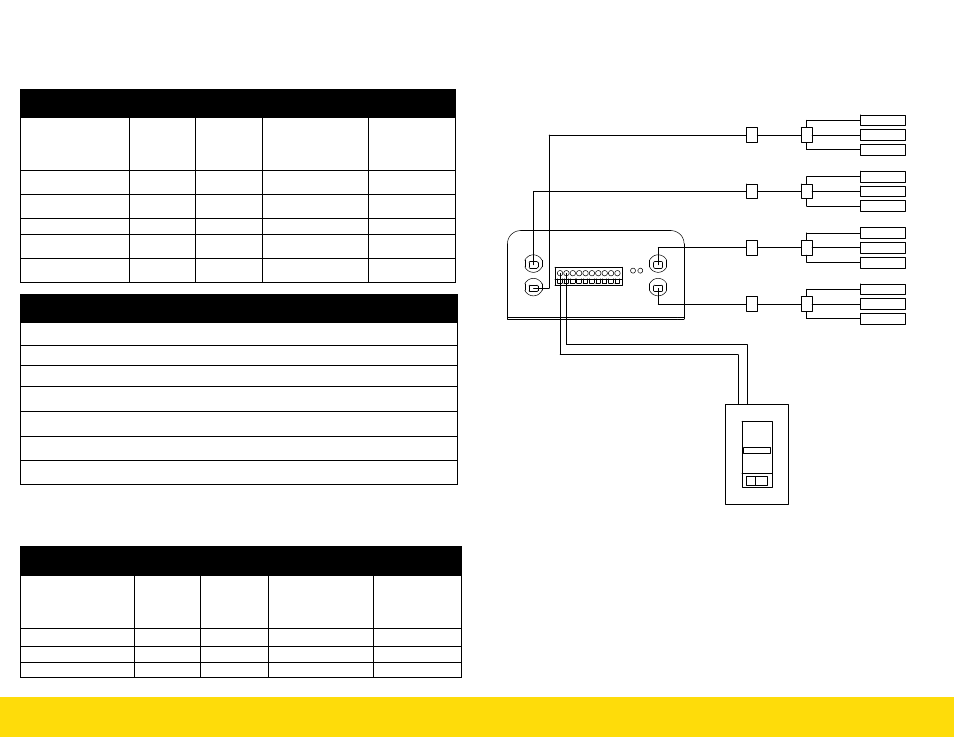

11.5 Typical Wiring Diagram
Using (1) TRINITY PC ANALOG and (1) Wall Box 0-10V Dimmer

ZONE 1

ZONE 2

ZONE 4

ZONE 3

LED LOAD

ZONE1

ON OFF

LED LOAD

ZONE2

ZONE4

ZONE3

GREY
VIOL ET

CHANNEL 6

CHANNEL 5

CHANNEL 4

CHANNEL 3

CHANNEL 2

CHANNEL 1

CHANNEL 12

CHANNEL 11

CHANNEL 10

CHANNEL 9

CHANNEL 8

CHANNEL 7

J = JUN CTION B OX

WALL B OX
DIMMER

CHANNELS 4,5,6

CHANNELS 1,2,3

CHANNELS 10,11,12

CHANNELS 7,8,9
