LumaStream Trinity Power Cord - Manual (Page 5)

Document: 66APPMAN-PC Rev: C 24 of 28
Note: This wiring configuration provides simultaneous dimming control for
all zones 1,2,3,4 with a commercial dimming interface comprising (1)
0-10Vdc control signal.

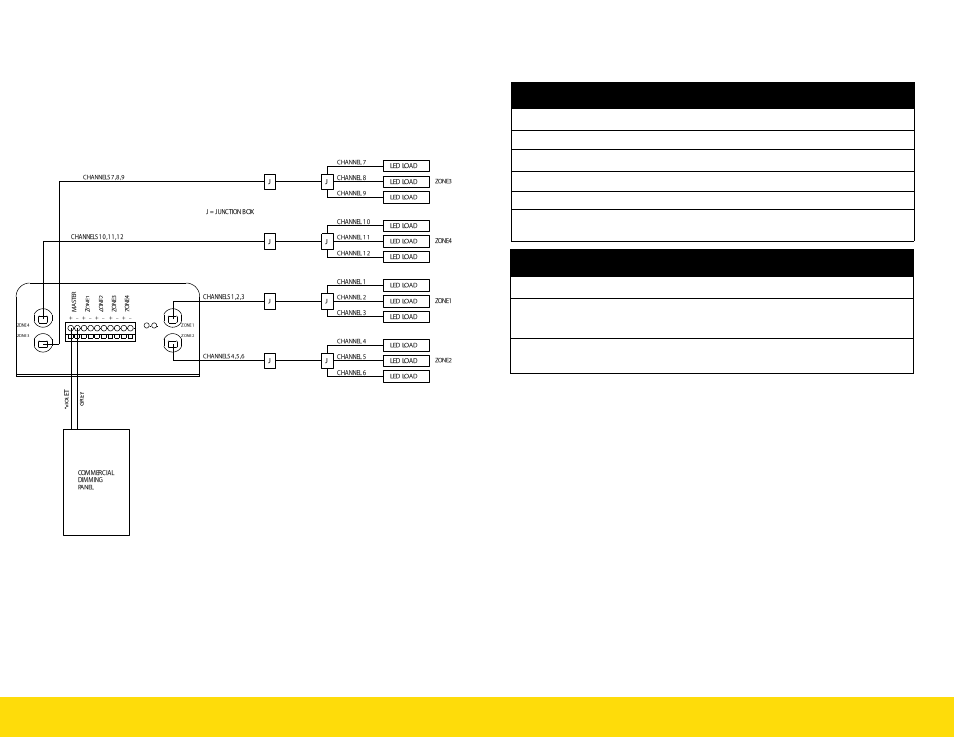

11.6 INSTALLATION EXAMPLES
(1) TRINITY PC ANALOG, (1) COMMERCIAL DIMMING PANEL
WITH (1) 0-10VDC ANALOG CONTROL SIGNAL
Document: 66APPMAN-PC Rev: C 5 of 28
Table 4
Environmental Specifications
Location Rating Dry
Operating Ambient Temperature -20ºC to +40ºC
Cold Start Temperature -20ºC
Storage Ambient Temperature -40ºC to 80ºC
Relative Humidity 5% to 95% noncondensing
MTBF (MIL HDBK-217F)
(12 channel) >60,000 hours @ 40ºC
>97,000 hours @ 25ºC
Table 5
Protection
Output Protection Over voltage, over current, short circuit protection
Over Temperature
Protection
Power supply will shut down when external ambient
temperature exceeds 43ºC or case temperature
reaches 85ºC nominal
Output Interconnection
Protection
Hiccup Mode with automatic recovery upon re-
moval of short. Only applies to +ve to –ve intercon-
nections.
