LumaStream Trinity Power Cord User Manual

Page 10

Document: 66APPMAN-PC Rev: C

10 of 28

6.0

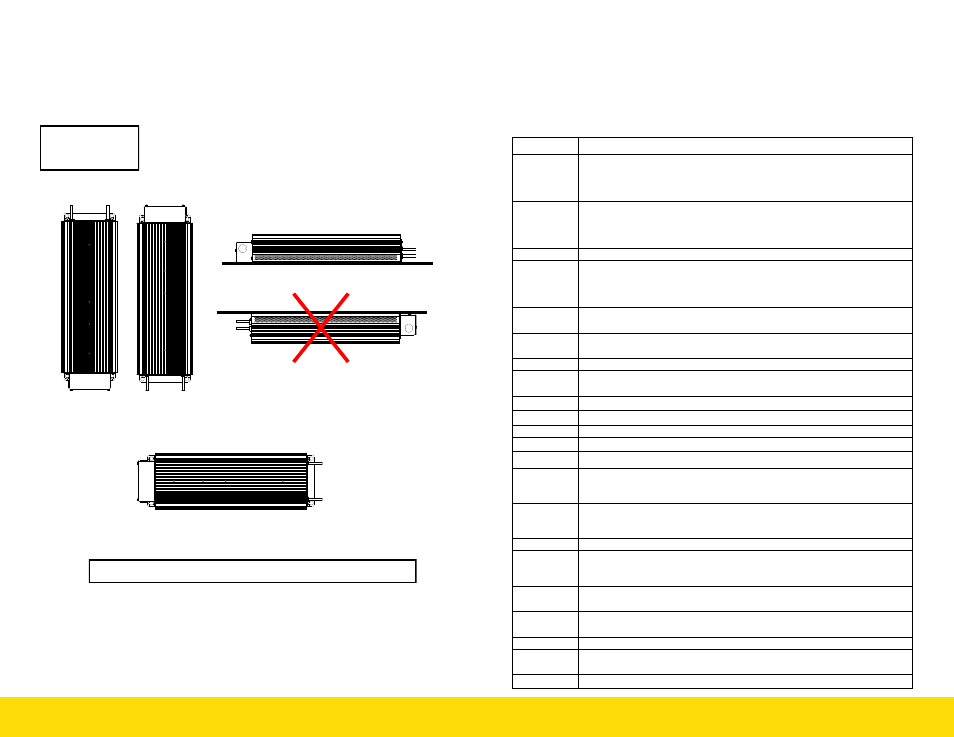

MOUNTING ORIENTATION

For sufficient cooling, the TRINITY PC must be mounted in either a vertical
or horizontal orientation as shown:

↑

Vertical orientation

provides the best

cooling option

Recommended mounting screw size #8 machine or self tapping

↑

Document: 66APPMAN-PC Rev: C

19 of 28

10.8 MULTI CHANNEL CONTROL MODES



The Trinity PC is able to link certain output channels together so that
they will respond on the same DMX channel. This is useful for general
illumination applications, For example all the lighting in a room could
be connected to a single Trinity PC, and all lights can be dimmed by a
single DMX channel. See table below for mapping.

ADDRESS

FUNCTION/SEQUENCE (For a 9 & 12 Channel Unit)

601

DMX ADDRESS 1 CONTROLS CHANNELS 1,2 & 3; DMX ADDRESS 2
CONTROLS CHANNELS 4,5, & 6; DMX ADDRESS 3 CONTROLS
CHANNELS 7,8, & 9; DMX ADDRESS 4 CONTROLS CHANNELS 10, 11,
& 12

602

DMX ADDRESS 2 CONTROLS CHANNELS 1,2 & 3; DMX ADDRESS 3
CONTROLS CHANNELS 4,5, & 6; DMX ADDRESS 4 CONTROLS
CHANNELS 7,8, & 9; DMX ADDRESS 5 CONTROLS CHANNELS 10, 11,
& 12

…

699

DMX ADDRESS 99 CONTROLS CHANNELS 1,2 & 3; DMX ADDRESS
100 CONTROLS CHANNELS 4,5, & 6; DMX ADDRESS 101 CONTROLS
CHANNELS 7,8, & 9; DMX ADDRESS 103 CONTROLS CHANNELS 10,
11, & 12

700

CHANNELS 1 TO 6 ON DMX ADDRESS 1, CHANNELS 7 TO 12 ON
DMX ADDRESS 2

701

CHANNELS 1 TO 6 ON DMX ADDRESS 2, CHANNELS 7 TO 12 ON
DMX ADDRESS 3

…

799

CHANNELS 1 TO 6 ON DMX ADDRESS 99, CHANNELS 7 TO 12 ON
DMX ADDRESS 800

801

ALL CHANNELS ON DMX ADDRESS 1

802

ALL CHANNELS ON DMX ADDRESS 2

…

850

ALL CHANNELS ON DMX ADDRESS 50

ADDRESS

FUNCTION/SEQUENCE (For a 6 Channel Unit)

601

DMX ADDRESS 1 CONTROLS CHANNELS 1 & 2; DMX ADDRESS 2
CONTROLS CHANNELS 3 & 4; DMX ADDRESS 3 CONTROLS
CHANNELS 5 & 6;

602

DMX ADDRESS 2 CONTROLS CHANNELS 1 & 2; DMX ADDRESS 3
CONTROLS CHANNELS 3 & 4; DMX ADDRESS 4 CONTROLS
CHANNELS 5 & 6;

…

699

DMX ADDRESS 99 CONTROLS CHANNELS 1 & 2; DMX ADDRESS 100
CONTROLS CHANNELS 3 & 4; DMX ADDRESS 101 CONTROLS
CHANNELS 5 & 6;

700

CHANNELS 1 TO 3 ON DMX ADDRESS 1, CHANNELS 4 TO 6 ON DMX
ADDRESS 2

701

CHANNELS 1 TO 3 ON DMX ADDRESS 2, CHANNELS 4 TO 6 ON
DMX ADDRESS 3

…

799

CHANNELS 1 TO 3 ON DMX ADDRESS 99, CHANNELS 4 TO 6 ON
DMX ADDRESS 800

801 to 850

SAME AS 9 & 12 CHANNEL TABLE ABOVE
