The Willow nozzle (marked W on the inside of the
cone) uses the 3/8” x 4” bolt
Model HP Height Width
8400, 2.3 2 12.5’ 28’
3.1, 3.3 3 13’ 35’
5.1, 5.3 5 14’ 36’
The Juniper nozzle (marked with J on in inside of the
nozzle cone) uses the 3/8” x 4” bolt.
Model HP Height Width
8400, 2.3 2 8’ 46’
3.1, 3.3 3 9’ 48’
5.1, 5.3 5 10’ 50’
The Spruce nozzle uses the three self tapping screws
to attach over the pump housing and the Y Insert must
be removed.
Model HP Height Width
8400, 2.3 2 19’ 10’
3.1, 3.3 3 21’ 13’
5.1, 5.3 5 24’ 15’

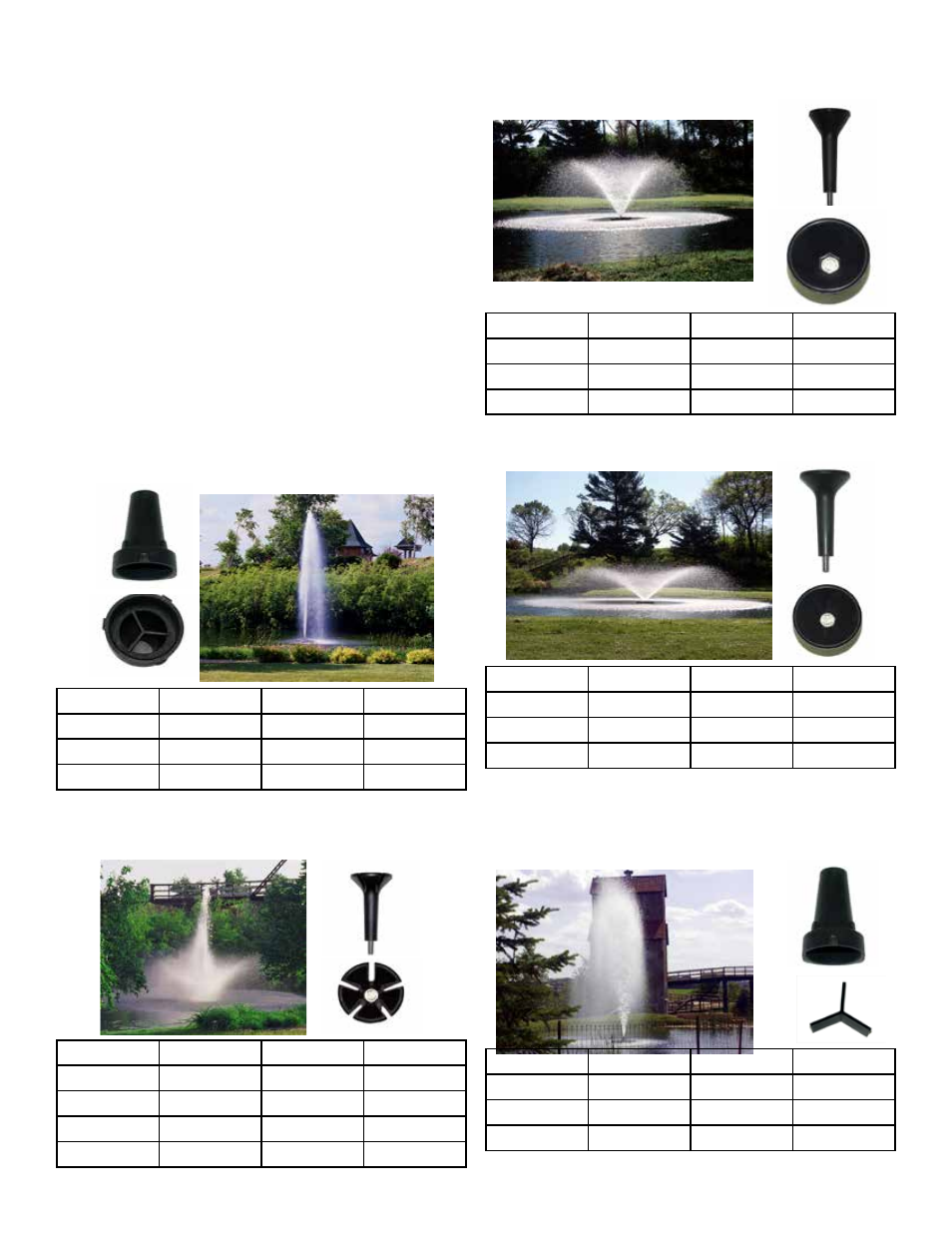

Nozzle Options & Pattern Sizes
NOTE: Pattern sizes listed are approximate in feet.
Variations in voltage caused by regional electrical dif-
ferences or voltage drop due to long power cords may
result in reduced pattern sizes.
• All five (or six) nozzles are included with the
package.
• The Linden, Willow, and Juniper nozzles use the
3/8” x 4” bolt.
• The Sequoia (5.1JF only) uses the 3/8” x 2.5” bolt.
• The Redwood nozzle must have the Y Insert in-
stalled prior to nozzle placement.
• The Spruce nozzle must have the Insert removed
prior to nozzle placement.
• The Birch display does not require a nozzle.
The Redwood nozzle uses the 3 self tapping screws to
attach over the pump housing and the Y Insert must be
installed.
Model HP Height Width
8400, 2.3 2 22’ 7’
3.1, 3.3 3 24’ 8’
5.1, 5.3 5 26’ 8’
The Linden nozzle (marked L inside one of the fins)
uses the 3/8” x 4” bolt.
Model HP Height Width
8400, 2.3 2 18’ 30’
3.1, 3.3 3 19’ 35’
5.1, 5.3 5 20’ 35’
7.3 7.5 24’ 28’
