7
Also Included:
• Cord in separate box (1) (depending on size of cord)
• Control Box (C-25 for 120V units in Float box or C-85
for 240V units in separate box) (1) (Not Pictured)
TOOLS & SUPPLIES NEEDED
• Anchors or stakes for installing unit (2)
• # 2 Phillips head screw driver
• 120V or 240V Electrical Supply near pond on a
post with room for mounting the C-25 or C-85
• Two 12” pieces of 1” galvanized pipe or weighted
tubing for weighting ropes (optional)
• #10 x 1” long or longer screw(s) for mounting the
C-25 (3) or C-85 (4)
• 9/16” Socket and Ratchet
• 9/16” Wrench
• 11/32” wrench (for #8 fasteners)

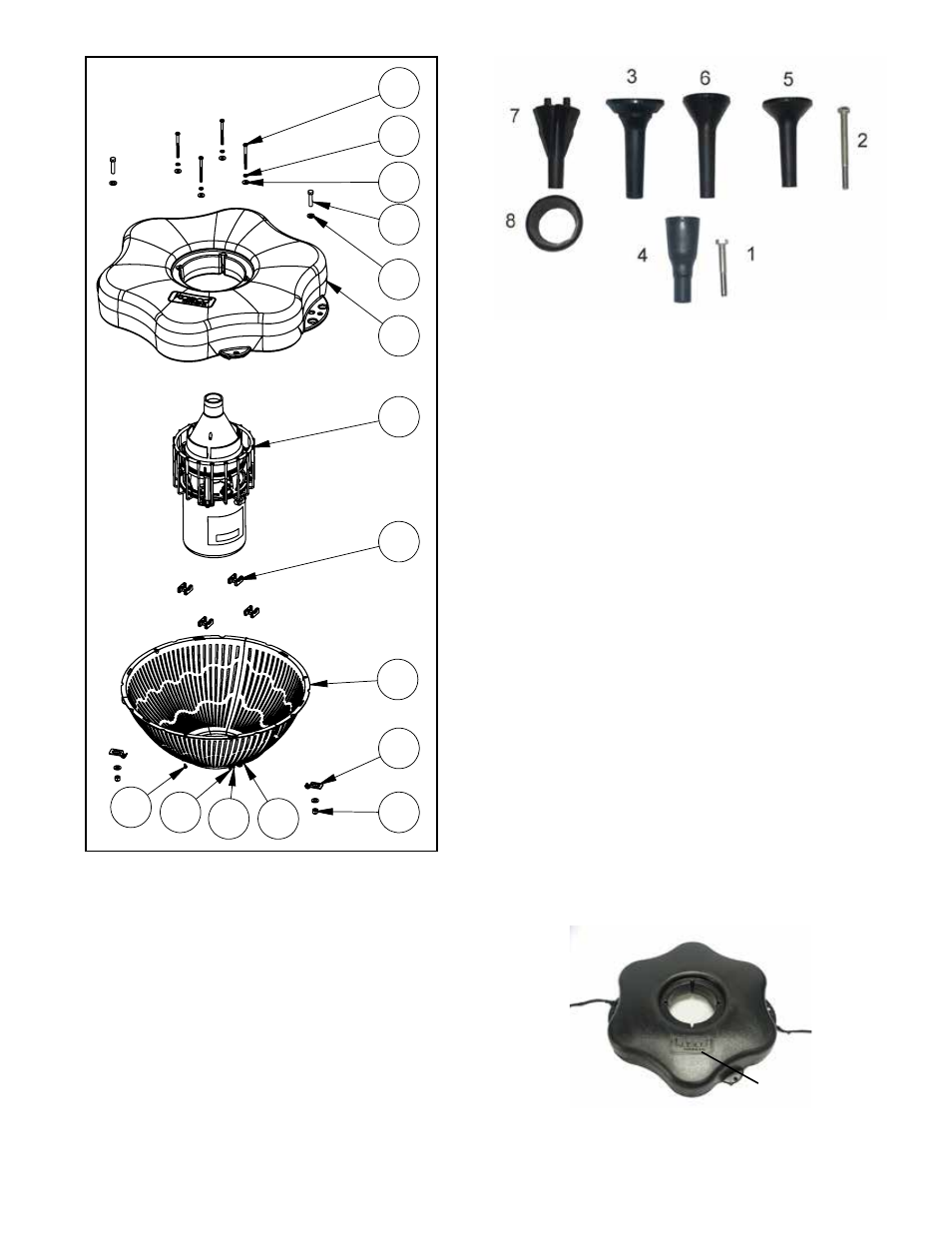

4400JF, 4400HJF Assembly
1. Make sure you have all the parts needed. If any short-
ages are found, contact your Kasco representative immedi-
ately.
2. Set motor housing upright (stainless steel can down) on
a flat surface. With motor housing upright, slide Float (Part
2) over pump housing making sure the surface with the
Kasco logo is up.
logo
Rest the float on the cage top ring.
1
2
3
4
5
6
7
8
12
9
10
11 13
14 15
REV. ECO# DESCRIPTION DR'N BY DATE DES ENG CH'K BY
1 INITIAL RELEASE
XXXX-XXXX-XX
DO NOT SCALE DRAWING
C.A.D. GENERATED DRAWING
800 DEERE ROAD
PRESCOTT, WI 54021-1241
X
FX FLOAT ASSEMBLY W/SCREEN
X
X
X
X
THIS DRAWING CONTAINS PROPRIETARY
INFORMATION AND SHALL NOT BE USED,
REPRODUCED OR DISTRIBUTED WITHOUT
THE PRIOR WRITTEN CONSENT OF
KASCO MARINE, INCORPORATED
.X .02 [.508] .XX .010 [.254]
.XXX .005 [.127] ANGULAR 0.5
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN INCHES.
DIMENSIONS IN [ ] ARE MILLIMETERS.
TOLERANCES ON:
THIS DOCUMENT HAS BEEN ISSUED
FOR ENGINEERING INFORMATIONAL
PURPOSES ONLY. ANY REVISIONS
TO THE CONTENT OF THIS DOCUMENT
MUST BE INCORPORATED INTO THE
ORIGINAL CAD FILE.
THIRD ANGLE PROJECTION TITLE:
XXXX-XXXX-XX
SHEET 1 OF 1
FINISH:
MATERIAL:
SCALE: 1:24
DWG. NO.
Set of 5 Interchangeable Nozzles (5)
1. 3/8” x 2.25” bolt (1)
2. 3/8” x 4” bolt (1)
3. Linden Nozzle (1)
4. Sequoia Nozzle (1)
5. Juniper Nozzle (1)
6. Willow Nozzle (1)
7. Cypress Nozzle (1)
8. Collar for Cypress Nozzle (1)
