6
12. Thread one rope through one weighted tube rope
Weight and position it approximately 6’ from the float.
Next, thread the end of the rope back through the opening
facing the float (as shown). Repeat with the second rope
and weight. If ready to install in the pond, go to Instal-
lation instructions. Light Kits can also be installed at this
time, go to Light kit instructions.
4400JF, 4400HJF Parts Included
1. 4400JF Aerating Fountain (Unit with cord or unit with
Disconnect) (1)
2. Float (with two 50’ mooring ropes attached) (1)
3. 1/4-20 x 3 1/2” Phillips Pan Head Screw (4)
4. 1/4” split washers (4)
5. 1/4” (3/4” outer diameter) Flat Washer (4)
6. 3/8”-16 x 1-3/4” Hex Head Bolt (2)
7. 3/8” Flat Washer (4)
8. Float Retaining Clips (4)
9. Bottom Screen section (3)
10. Bottom Screen Clips (2)
11. 3/8”-16 Nylon Lock Nut (2)
12. #8 nut (6)
13. #8 flat washer (12)
14. #8 lock washer (6)
15. #8 x 1/2” Screw (6)

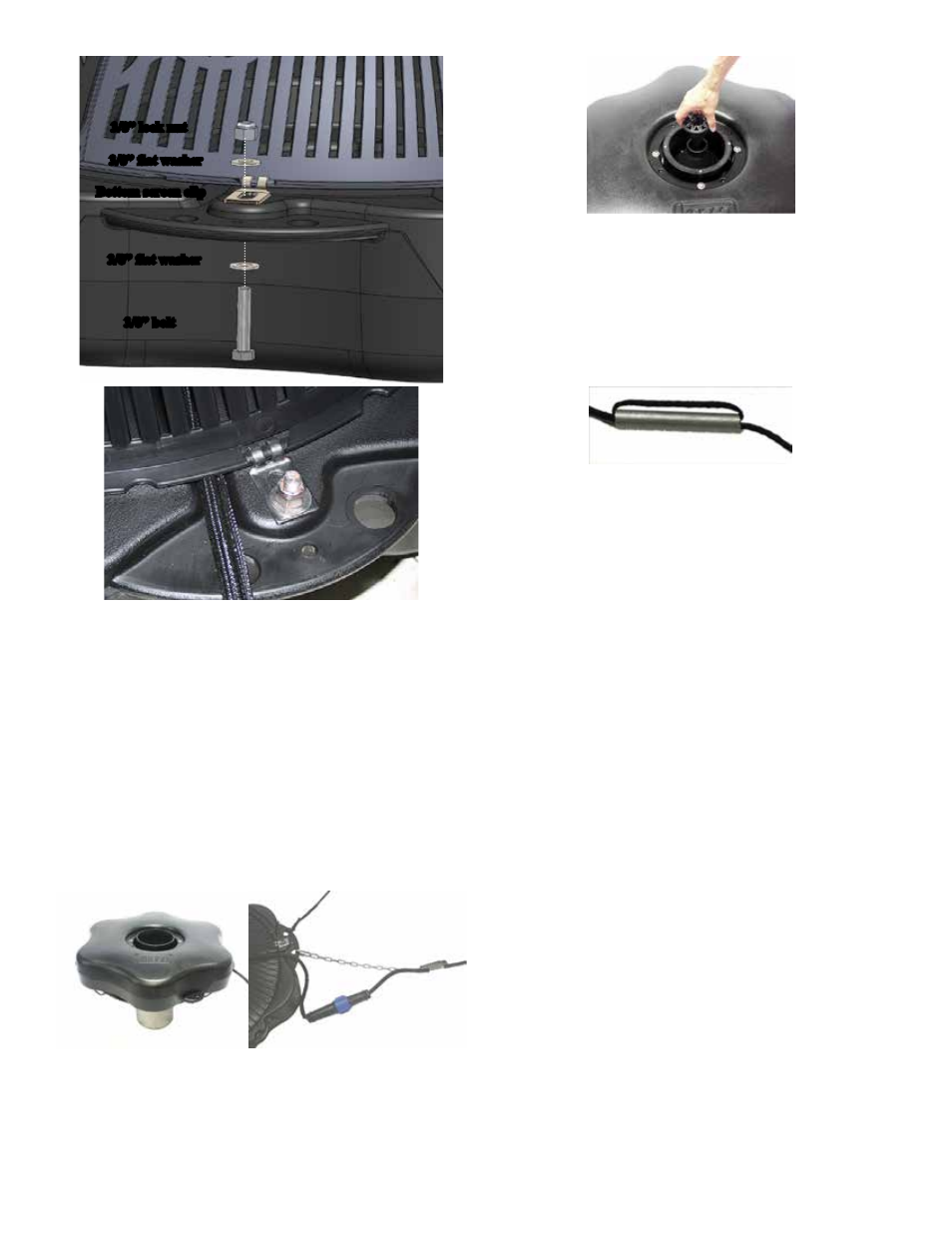

3/8” lock nut
3/8” flat washer
Bottom screen clip
3/8” flat washer
3/8” bolt
10. Turn the assembly upright again. At this time, if the
cord contains a metal strain relief, you can use the chain
connector and attach it in one of the opening at the rope
placement. The chain connector will easily fit if installed
from the bottom or top side of the opening. It will not fit
if installed from side of opening. Use the Nylon Cable Tie
included to secure the power cord to a molded hole in the
float to prevent cord damage if there is no strain relief on
the cord. If a Strain Relief is present on the cord, you may
disregard the Nylon Tie. On cords with a Quick Discon-
nect, the disconnect should be tightened properly to avoid
leaking. If installing a new Quick Disconnect, refer to
Quick Disconnect Instructions.
11. Select a nozzle (See JF Nozzle Options). Insert the
Shaft Bolt into the Nozzle Head so it fits snugly into the
molded socket. Install the Nozzle by threading it into the
inner cone of the pump. Make sure to tighten the Nozzle
all the way down.
