STEP THREE
Follow all local and national electrical codes for
this installation and Consult a qualified electrician
or service person if needed.
(For 120V Installations)
Plug the aerator cord into the C-25 outlet labeled
“UNIT”. If lights are included, plug the Transformer
cord into the C-25 outlet labeled “LIGHT”. Now you
are ready to plug the C-25 into the 120V power supply
on the post and ENJOY YOUR NEW KASCO AERA-
TOR!
STEP THREE (For 240V Installation)
All electrical connections to this panel must be made
with proper strain relief cord grip fittings or with
conduit connections as required by local and national
electric codes. The bottom of the enclosure is reserved
for field installation of these connections.
C85 non-metallic control panel:
Incoming power connection: (Power feed)
This control panel requires a 240V or 208V - 4 wire
service (L1, L2, N, & G) and must be fed with a
power circuit protected by a circuit breaker or a fused
disconnect switch to provide circuit protection and a
disconnection means.
C-85 panel requires at least a 30amp protected circuit
feeding the panel.
Connect your power feed as detailed in the wiring
diagram provided with this panel.
L1 connects to Terminal #1
L2 connects to Terminal #2
N connects to Terminal N
G connects to Terminal GROUND - located on
hassis plate
Be sure to provide adequate sized power conductors
to prevent excessive voltage drop. Consult with your
electrician to properly size power feed conductors.
Use copper conductors only.
Aerator power cord connection:
Your aerator (pump) will be provided with a flexible
power cord for connection to this control panel. If
the power cord has a plug, you will need to cut it off.
The power cord conductors (black, white, green) will
need to be stripped back 1/2”. The outer black jacket

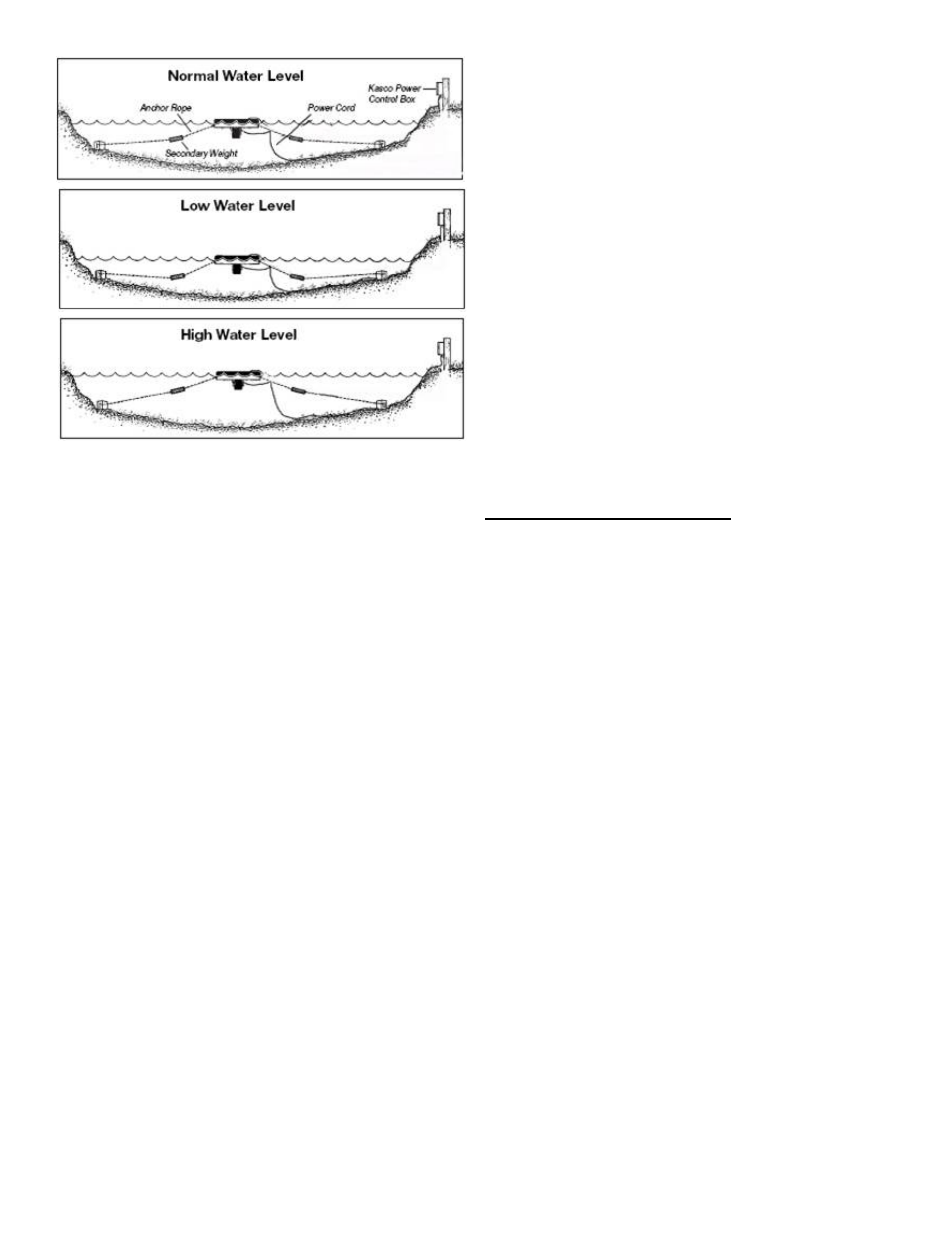

Control Panel Installation
STEP ONE
Inspect the panel for any damage and any components
that may have loosened during shipping.
Control panel must be installed a minimum of 5ft (3m
in Canada) from the inside wall of the pond, unless
separated from the body of water by a fence wall,
or other permanent barrier that will make the unit
inaccessible to persons in the water.
Install the control panel to a post structure, side of a
building, or other reliable means. This structure must
support the panel and prevent movement/flexing of the
panel. Use #10 x 1” or longer screws in the mounting
points of the control panel to secure to the post
structure. NOTE: The control panel must be hung
upright in order to be waterproof. It is also advised
to mount the panel out of direct sunlight if possible.
Mounting the panel in a North direction will prevent
heat buildup inside the panel. Also, mount the panel
above the potential flood plain to prevent water entry
during a possible flood event.
STEP TWO
Set Timer in the control panel to desired ON and OFF
times per the Instructions for each specific timer.
