Product Specifications
Physical Interface
■ 62 pin D-sub connector
■ Adapter cable for 120 ohm balanced
termination with male DB-15
Line Rate
■ 2.048 Mbps
Framing
■ G.704 (FAS, TS16 MF, CRC-4)
Line Coding
■ AMI, HDB3
Line Length
■ 3,200 m at 75 ohms
■ 1,963 m at 120 ohms
System Timing
■ Network, internal, external
Switch Compatibility
■ ETSI/DSSI
Diagnostics
■ Local Loopback: Line
Test Patterns
■ QRSS, All 1s, All Os
Alarms
■ LOS, LOF, LOMF, CRC4, AIS, REM, REMF
Performance
■ Per G.821, RFC 1406
QUAD E1
ATLAS 800 Series Module
Signal Monitoring
■ AB signaling bits for all TS0s
Agency Approvals
■ FCC Part 15
■ Class A
■ UL 1950
■ IEC 950
■ Canadian UL (CUL)
■ CISPR 22
■ Class A
Environment
■ Operating Temperature: 0° to 45°C
■ StorageTemperature: -20° to 70°C
■ Relative Humidity: Up to 95%,
non-condensing
Power
■ 5 Watts at 48 vDC
Product Includes
■ Plug-in Module
■ Adapter Cable
■ User Manual
Ordering Information
Equipment Part #
Quad E1 Module
w/DB-15 adapter cable 1200264L1
Quad E1 Module
w/DB-15 adapter cable and BNC 75 Ω converter 4200264L1
Specifications subject to change without notice. ATLAS is a trademark of ADTRAN, Inc.
ADTRAN is a registered trademark of ADTRAN, Inc. All registered trademarks and trade-
marks mentioned in this publication are the property of their respective owners.
ADTRAN, Inc.
Attn: Enterprise Networks
901 Explorer Boulevard
Huntsville, AL 35806
P.O. Box 140000
Huntsville, AL 35814-4000
256 963-8000 voice
256 963-8699 fax
General Information
800 9ADTRAN
[email protected]
www.adtran.com
Pre-Sales
Technical Support
800 615-1176 toll-free
[email protected]
om
www.adtran.com/support
Where to Buy
877 280-8416 toll-free
[email protected]
www.adtran.com/where2buy
Post-Sales
Technical Support
888 423-8726
[email protected]
www.adtran.com/support
ACES Installation &
Maintenance Service
888 874-ACES
[email protected]
www.adtran.com/support
International Inquiries
256 963 8000 voice
256 963-6300 fax
[email protected]
www.adtran.com/international
For the regional office
nearest you, visit:
www.adtran.com/where2buy
61200264L1-8E June 2004
Copyright © 2004 ADTRAN, Inc.
All rights reserved.
ADTRAN is a TL 9000 3.0
certified supplier.
ADTRAN is an ISO 9001:2000
certified supplier.

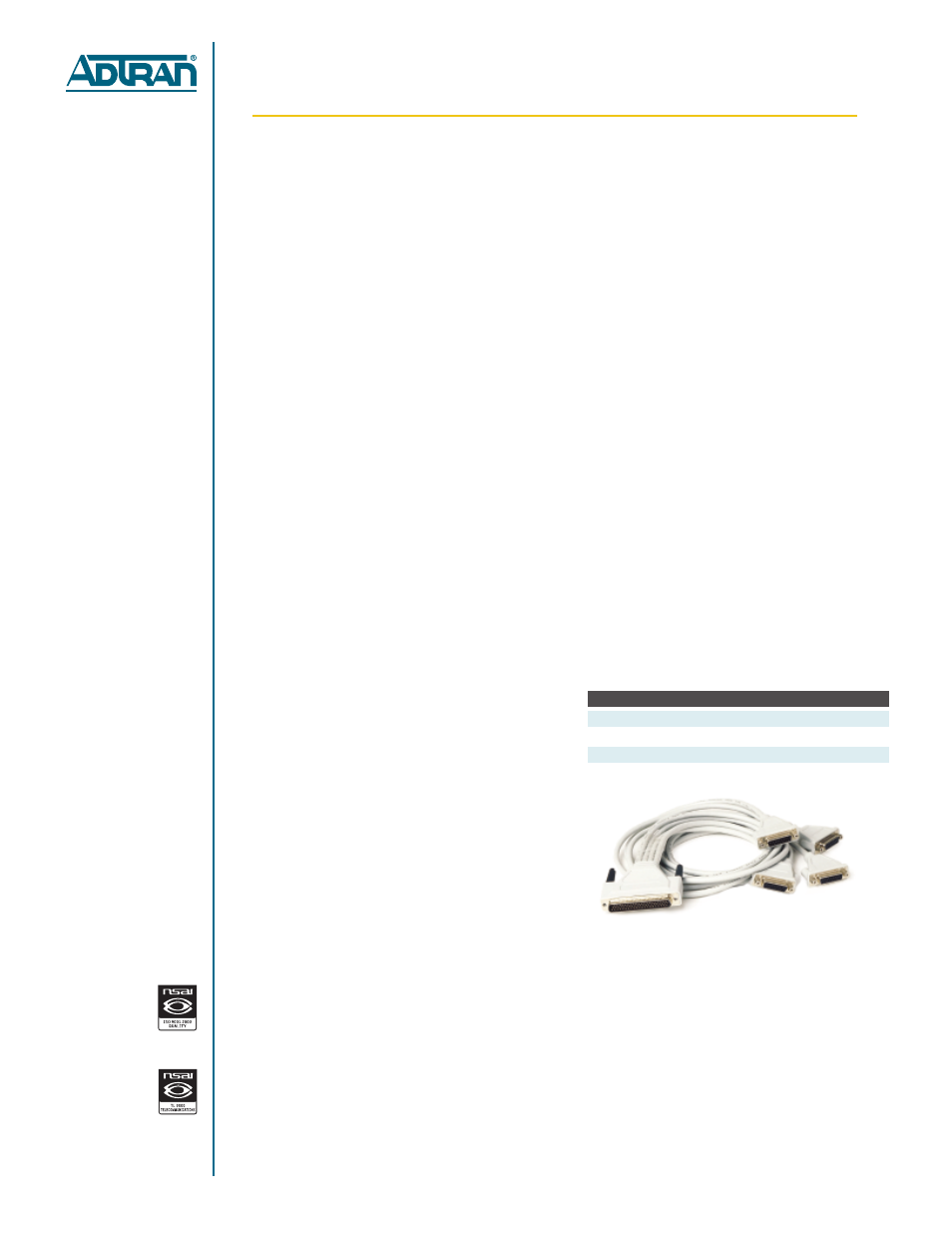

DB-15 cable
