7
PREPARING YOUR WORK PIECE

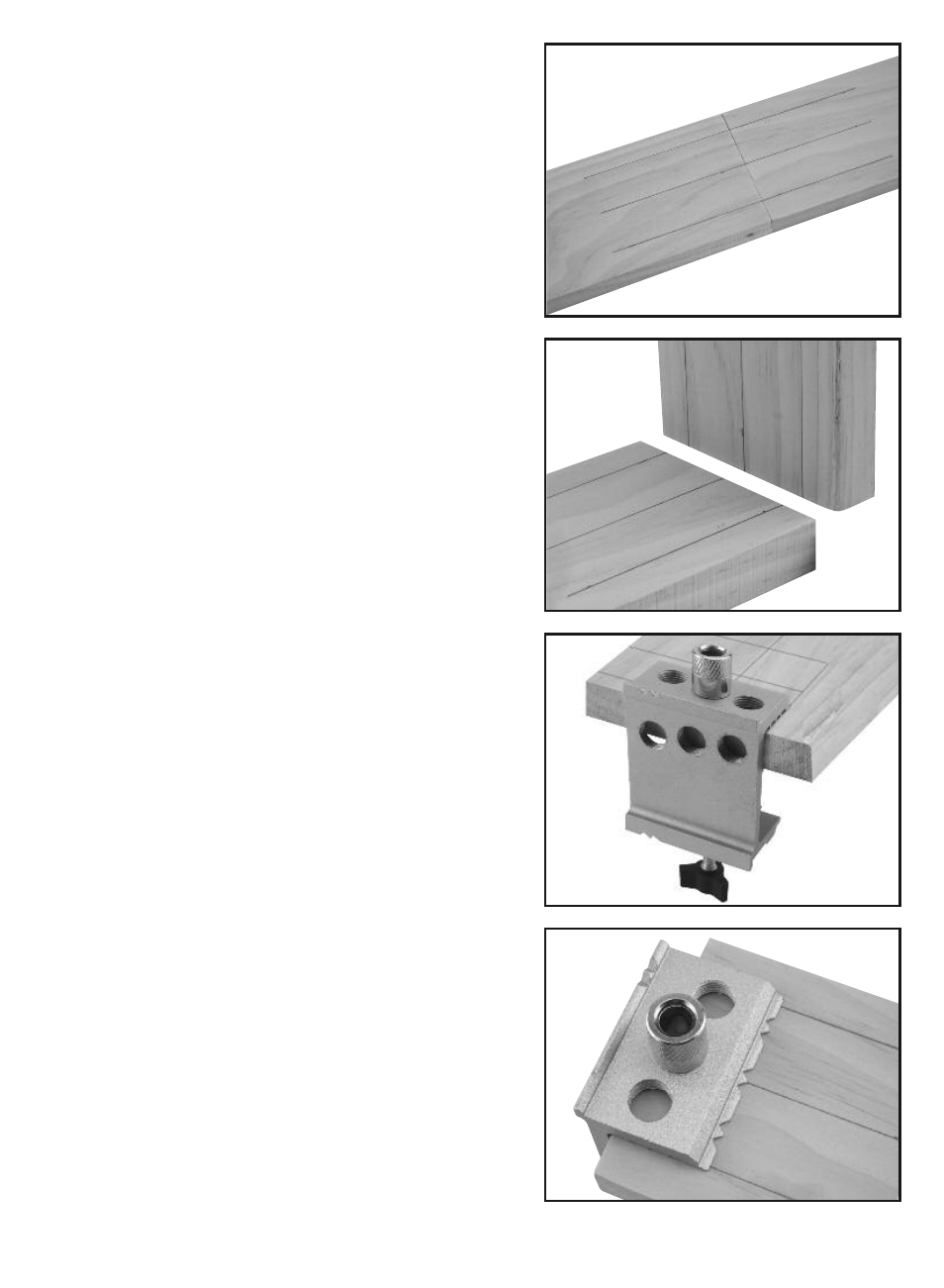

Marking the pieces: Lay the 2 pieces to be
joined on a flat surface and mark the drill hole
locations across each board (Fig. E). This will be
the INSIDE of the joint.
For the edge doweled part:
1. Mark the board and select the appropriate
bushing following the edge doweling
instructions (1) and (2) on page 5.
2. Set the appropriate collar depth for edge
drilling (2").
3. Drill your edge holes as in Steps 3 & 4 on
page 6. (Fig. C)
For the surface doweled part:
1. Move the drill bushing to the corresponding
location on the top of the E•Z Pro Deluxe
Doweling Jig Kit. (Fig. G)
2. Secure your work piece accordingly; clamp
the jig with the appropriate “V” pointer on the
location line. (Fig. H)
3. Set your corresponding collar depth (1-1/2")
and drill holes for each dowel position. Insert
dowels and assemble dry to check for fit.
Apply glue to dowel pins or drilled holes for a
permanent joint. Once assembled, wipe away
excess glue.
E
F
G
H
