SM SERIES
Page 7

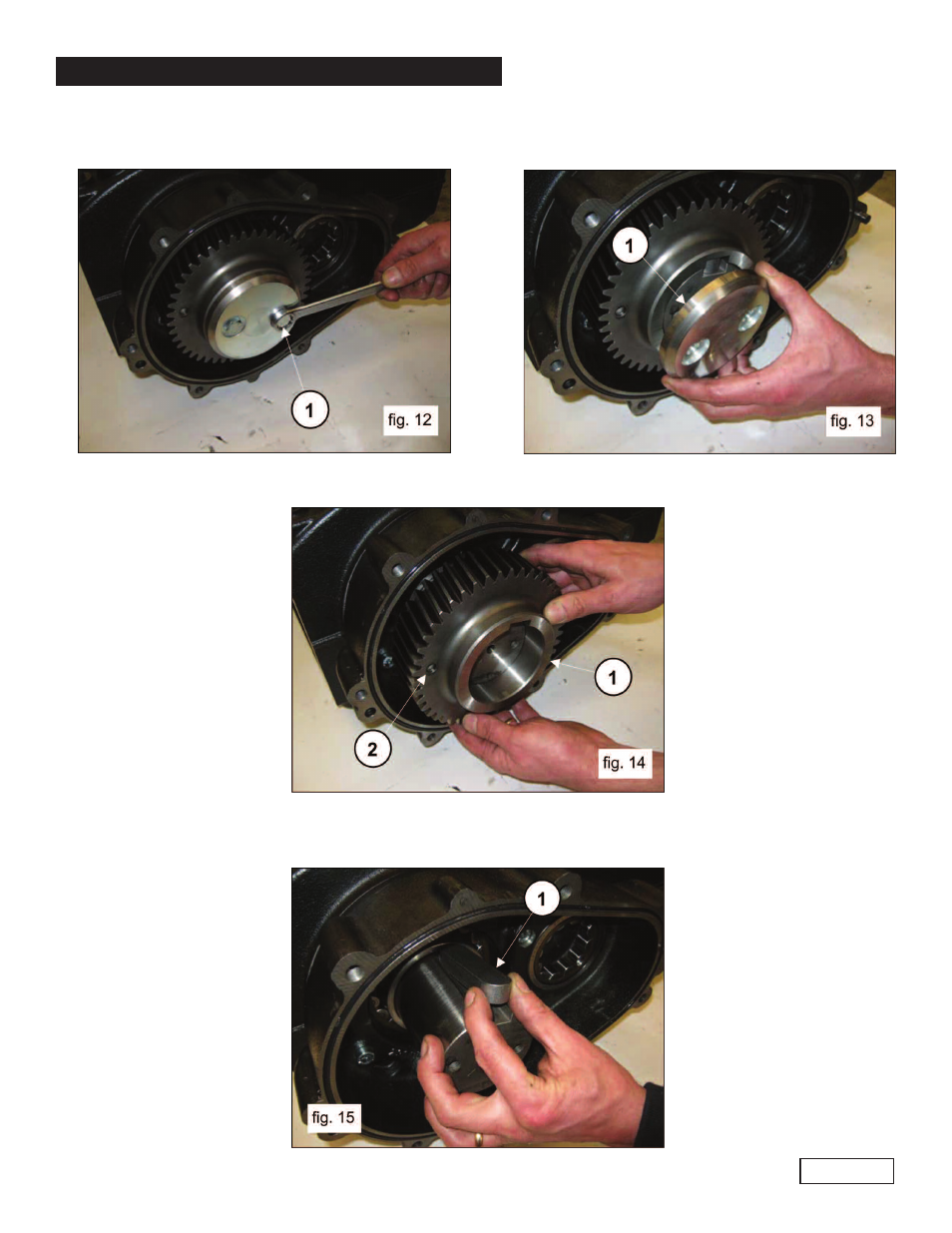

Remove the ring gear (1, fig. 14). Where necessary, it is possible to utilize an extractor hammer to be applied
on the (2) M8 holes (2, fig. 14).
Remove the tab from the shaft (1, fig. 15).
Unscrew the screws holding in the ring gear (1, fig. 12) and remove it (1, fig. 13).
