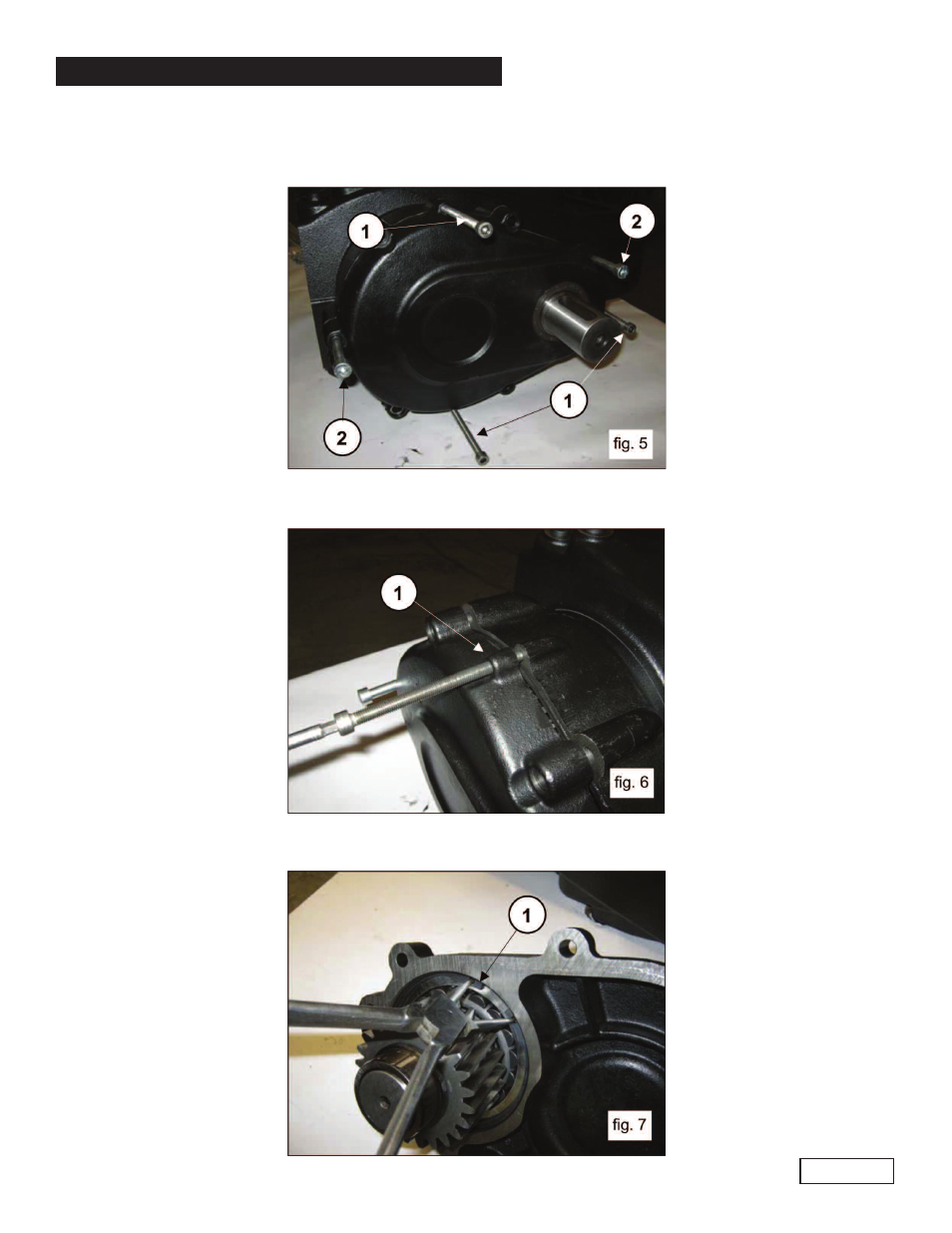

Slowly screw in the 3 M8 screws (1. fig. 6) with the function of extractors to fully remove the cover unit and
pinion.
Complete disassembly of the reduction gear cover from the pinion is possible following these steps:
Remove the Seeger ring Ø 120 (1, fig. 7).
Position the 3 grub screws or M8 threaded screws (1, fig. 5) with the function of extractors in the holes and
two sufficiently long M10 screws with the function of supporting the cover (2, fig. 5).
