GENERAL PUMP
A member of the Interpump Group
SM SERIES

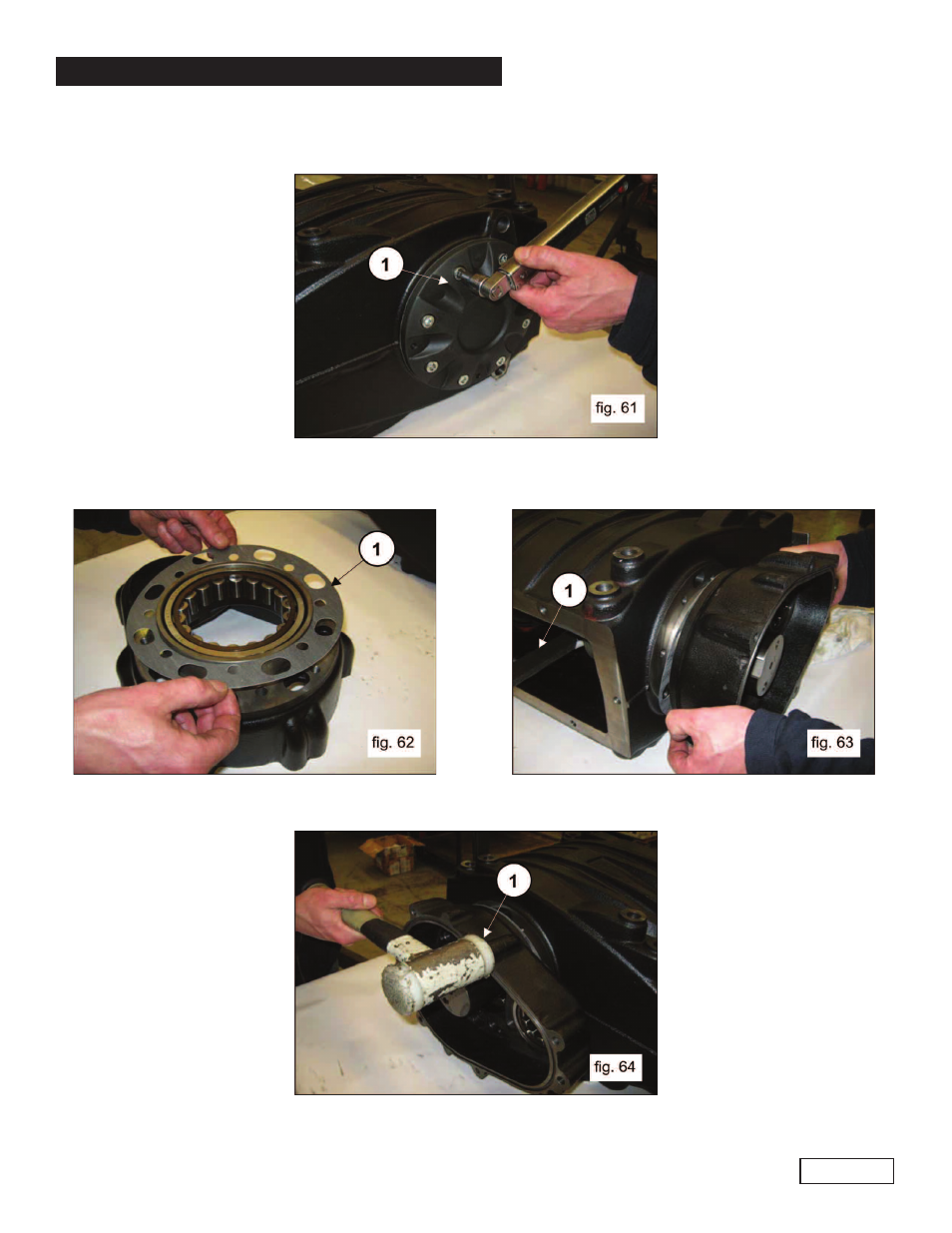

Tighten the (8) M10x30 screws (1, fig. 61). Calibrate the screws with a torque wrench as indicated in Section
3 “Screw Tightening Callibration”.
Page 19
From the opposite side, insert the side seal on the reduction gear box (1, fig. 62) and lift the crankshaft to
favor cover insertion (1, fig. 63).
Assemble the reduction gear box (and related seal) using an extractor hammer (1. fig. 64).
Ref 300894 Rev.A
06-12
