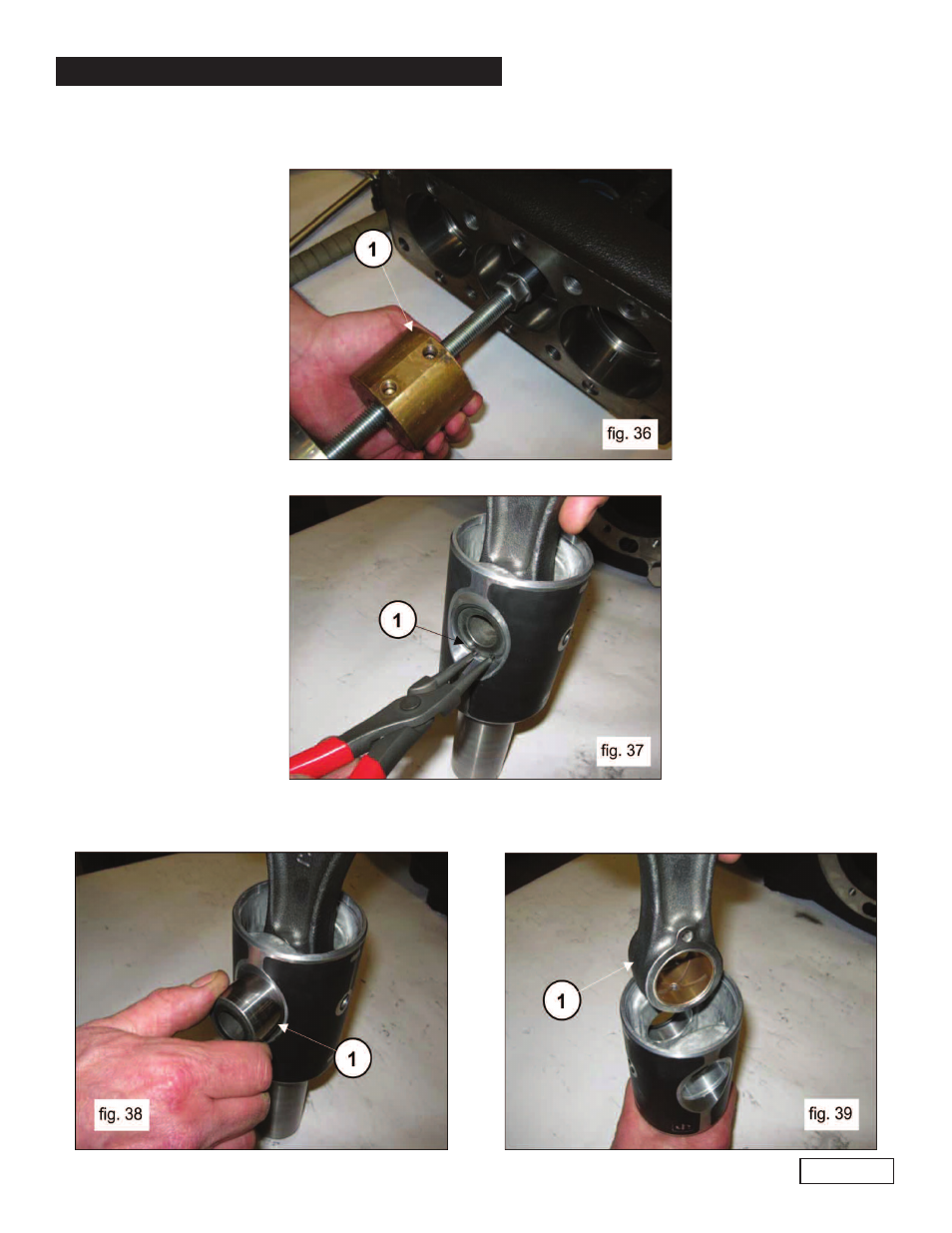

Extract the seal ring using the tool extractor hammer (1, fig. 36).
Page 13
Remove the two spindle locking Seeger rings Ø 120 (1, fig. 37).
Remove the spindle (1, fig. 38) and extract the connecting rod (1, fig. 39).
