SM SERIES
Page 4
2.1.1 Disassembly of Mechanical Parts
The correct sequence is the following:

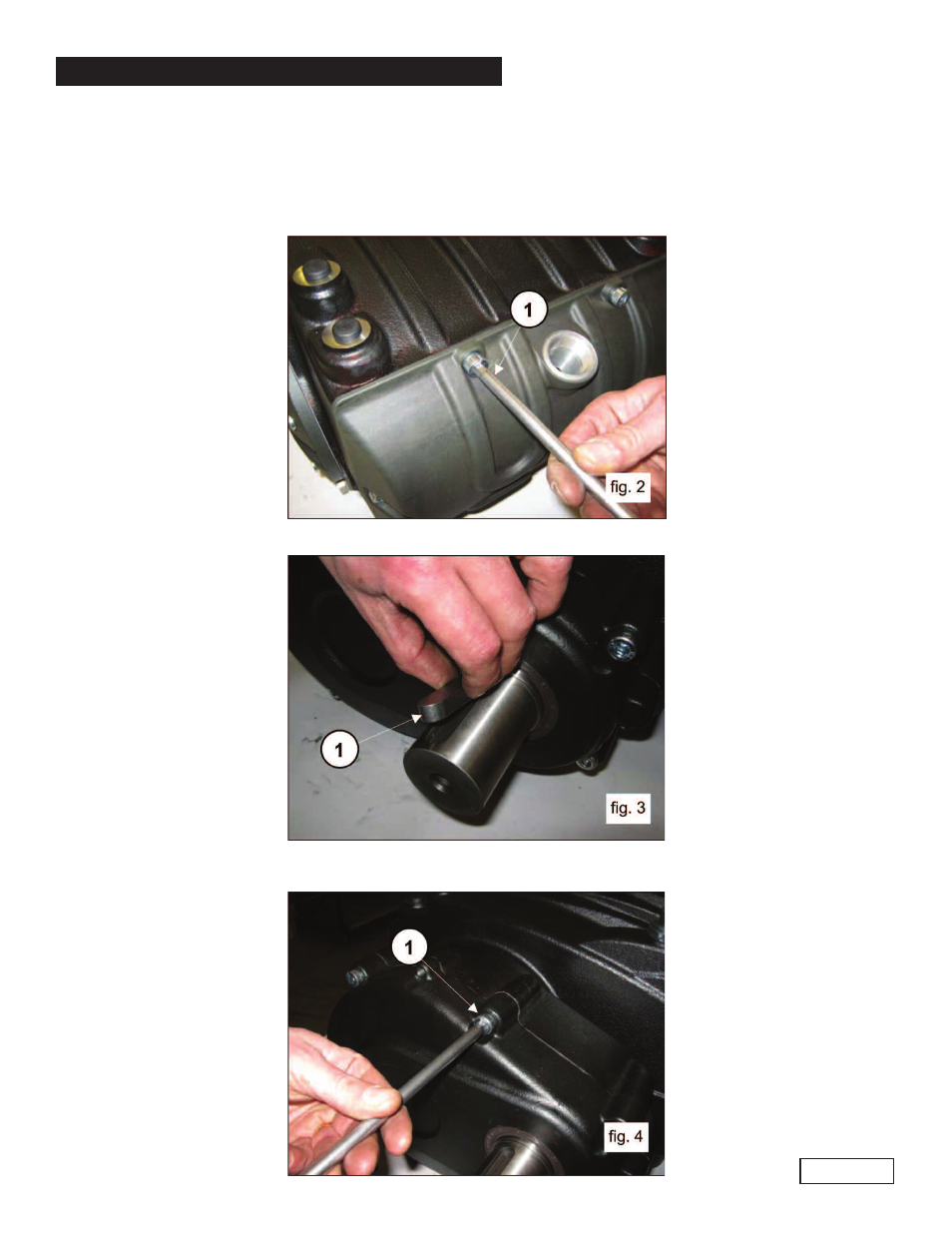

Completely empty the pump of oil, then disassemble the casing cover (and relative o-ring), unscrewing the
(6) M10 screws (1, fig. 2).
Remove the tab from the PTO shaft (1, fig. 3).
Ref 300894 Rev.A
06-12
Unscrew the reduction gear cover fixing screws (1, fig. 4).
