Finish Thompson S6 BATTERY REPLACEMENT - Manual (Page 2)

Tools Required: S6 Operation & Parts Manual, Phillips Head Screwdriver, Needle Nose Pliers, Wire Stripping / Crimping
Tool, & Electrical Tape.
Battery Pack Removal
1. Verify motor switch is in the OFF position “O” on the switch before beginning.
2. Remove the 6-high-low screws (item 5) from the motor cover (item 1) & lift off.
See Figure 1.
3. Remove red & black motor lead wires from the motor terminals one at a time. See Figure 2. Warning: To prevent a short
circuit & battery overheating if lead wires touch, tape over the terminals with electrical tape immediately upon removal.
4. Pull the battery pack (item 2) from the motor canister (item 4) using 2 fingers inserted into the middle of the battery
pack. See Figure 3.
5. Pull motor red & black lead wires with thin red & black fan wires from the battery pack side openings. See Figure 4.
6. Cut the thicker red & black motor lead wires one at a time ½” from the battery pack. See Figures 5 & 6. Caution: Do
not cut the thin red & black fan wires.

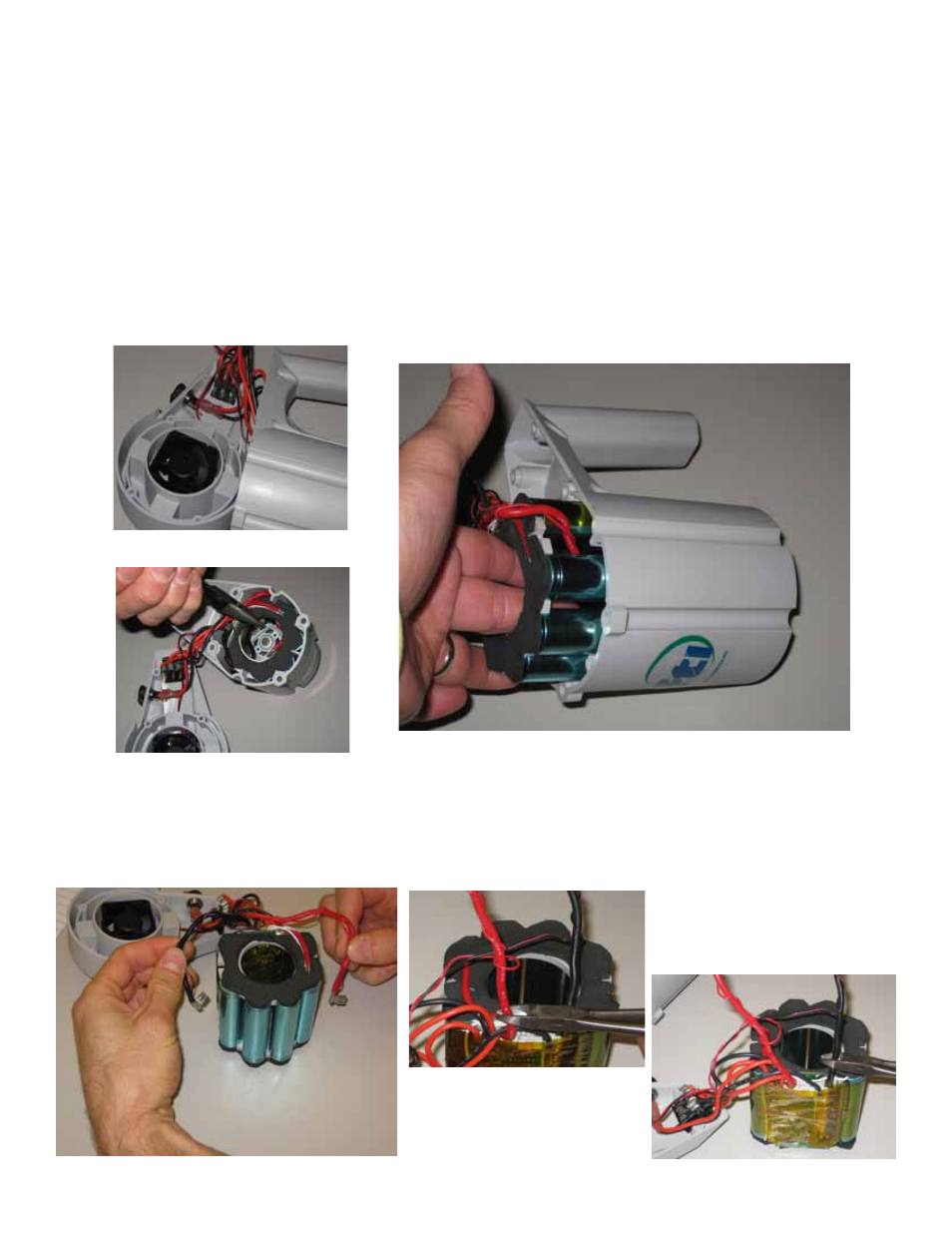

Figure 1
