Earthway S15 SPRAY-PRO PUSH SPRAYER - Manual (Page 2)

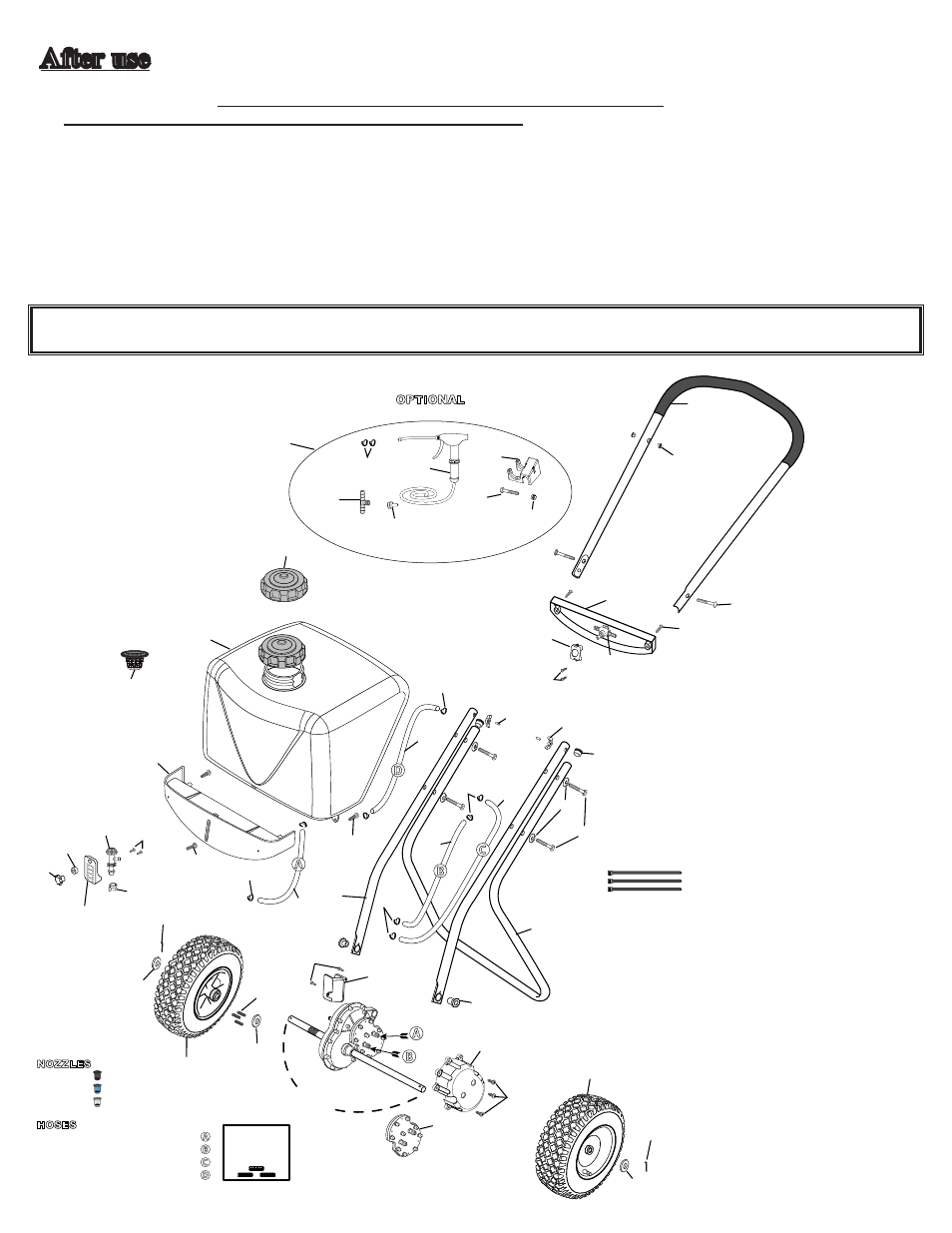

S15 SPRAY-PRO
®
Liquid Sprayer
~ Parts List
4
3
2
1
B
C
D
A
EXTRA
S25-30003
Knurled Pins
26
45
39
8
42
11
36
10
24
25
8
NOZZLES
40 Black
41 Blue
44 Gray
10
6
38
15
14
9
27
33
16
34
31
30
32
18
1
4
29
11
11
28
B
A
13
35
23
3
5
7
8
17
Zip Ties
HOSES
19 Hose 18" Pump to 3-Way
20 Hose 12" Tank to Pump
21 Hose 20" 3-Way to DCV
22 Hose 14" 3-Way to Tank
A
B
C
D
37
12
19
20
22
21
35
35
2
43
35
48
53
47
50
OPTIONAL
S15-77000 Spray Gun Kit
51
52
35
46
Earthway Products, Inc.
P.O. Box 547
Bristol, IN 46507
Phone: 800-294-0671
www.earthway.com
After use
1. Empty any unused contents out of the spray tank. The S15 Spray-PRO tank has been designed to
easily empty and clean. Dispose of the tank contents and all washings in accordance with the
manufacturer’s disposal instructions on the product that has been used.
2. Wash out the tank thoroughly using clean water and or a preparatory tank cleaner. Make sure
that the nozzle and Spray Gun are thoroughly washed through as well. To wash through the pipe
work to the spray nozzle, add an additional 1/2 gallon/2 liters of clean water to the tank and
wash this through the nozzle by pushing the sprayer over a safe area for the purpose of disposal of washings. The spray gun will take
25-30 sprays to completely empty of the material used, then spray an additional 15 sprays of clean water to ensure it is clean.
3. Empty all water out of the sprayer making sure no water is left in the pump over winter.
