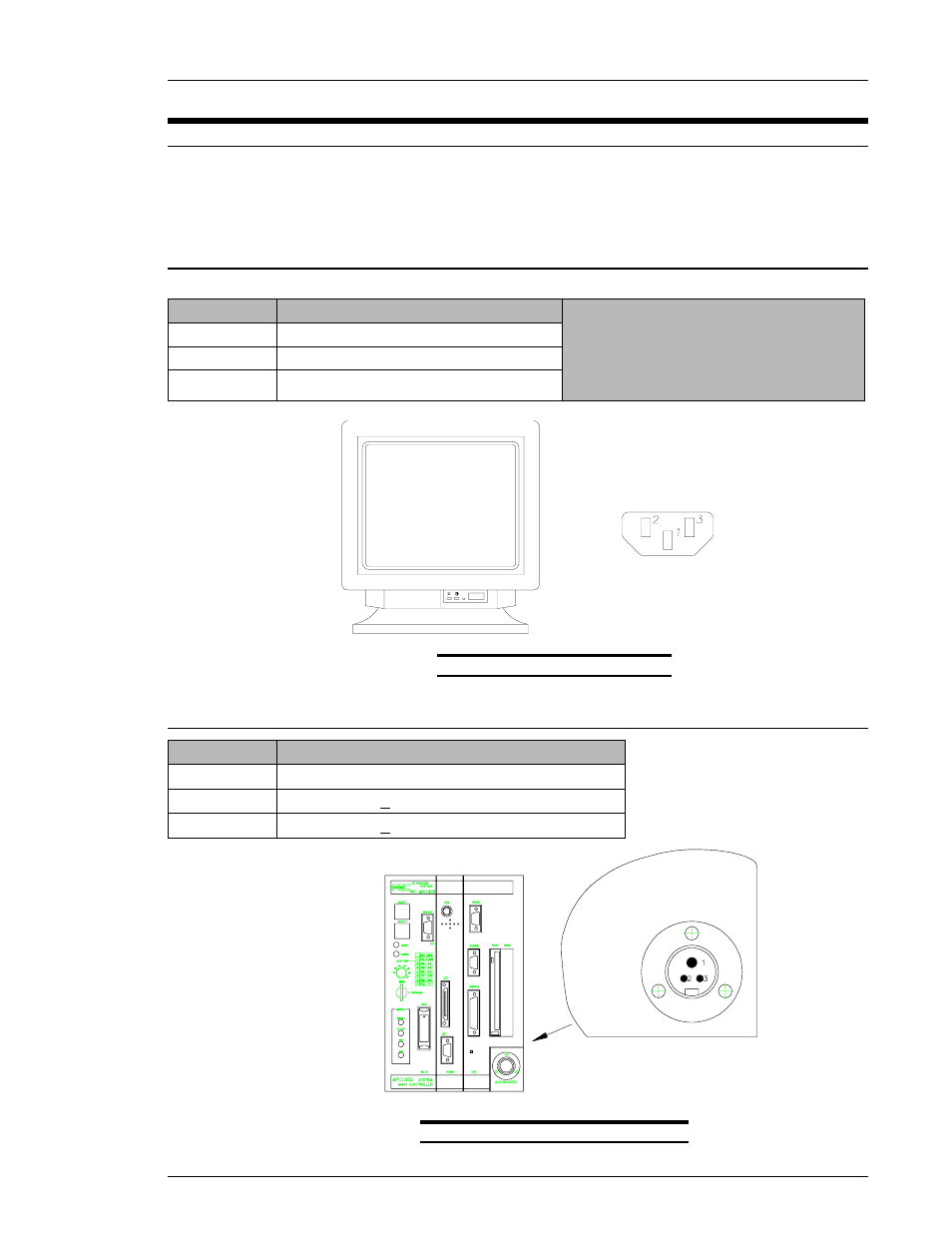

4.6 Power Requirements and Connections
WARNING:
Follow Lockout/Tagout and other safety precautions when connecting and/or
disconnecting cabling, wiring, and equipment.
4.6.1 Monitor (VGA CRT) Power Requirements and Connections
110/230VAC AUTOSENSE 50/60Hz 3
110/230VAC AUTOSENSE 50/60Hz 2
FRAME GROUND 1
CAUTION: VOLTAGE MAY VARY
DEPENDENT UPON WHICH CRT
MODEL IS USED WITH THE SYSTEM.
REFER TO THE MONITOR OWNER'S
MANUAL FOR SPECIFICATIONS.
DESCRIPTION PIN NUMBER
FIG. 4-6-1 CRT Power Connector
4.6.2 Main Unit Power Requirements and Connections
200~230VAC + 10%, 50/60Hz, Single Phase 3
200~230VAC + 10%, 50/60Hz, Single Phase 2
FRAME GROUND 1
DESCRIPTION PIN NUMBER
FIG. 4-6-2 Main Unit Power Connector
