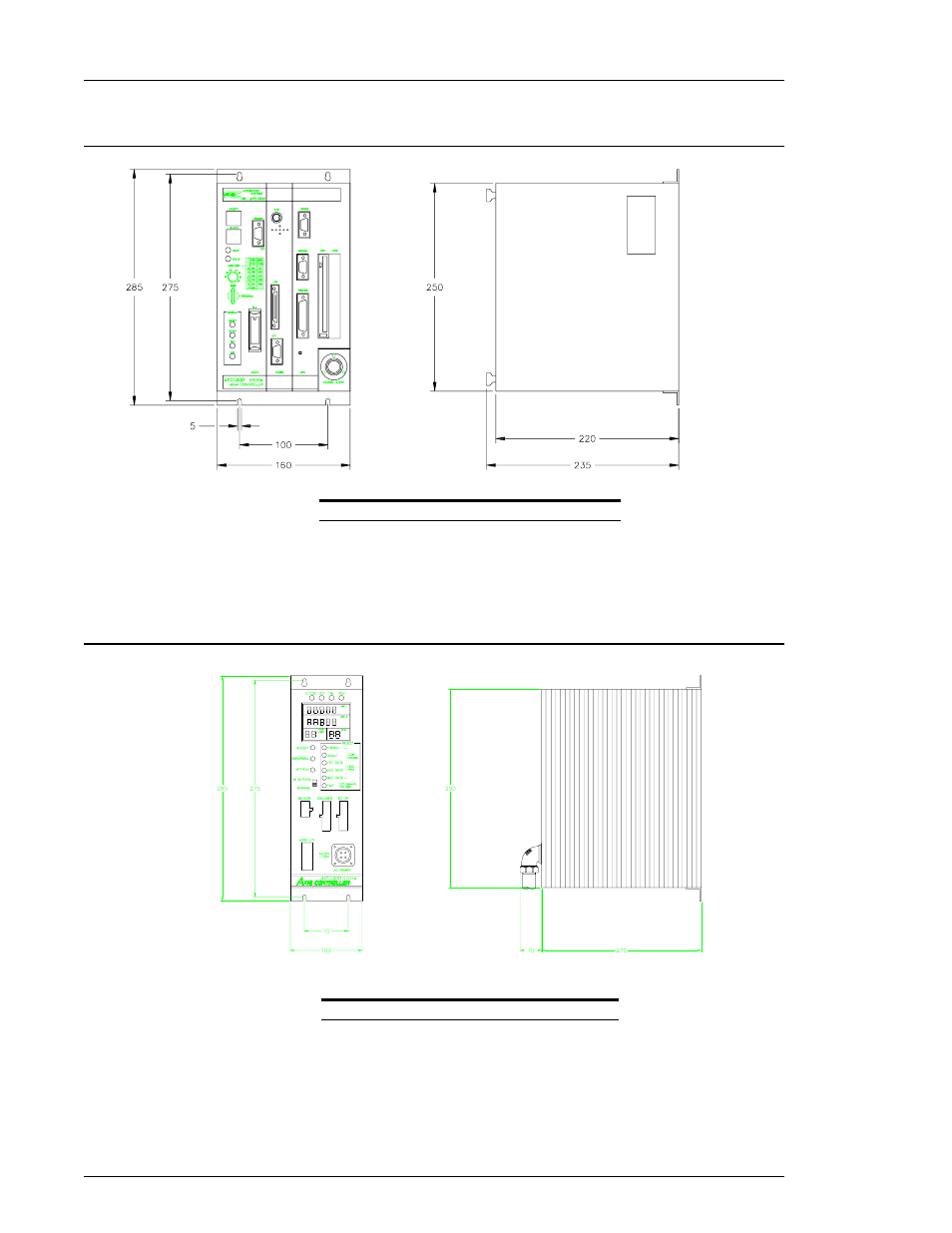

4.2.2 Main Controller Unit Dimensions
FIG. 4-2-2 Main Controller Unit Dimensions
Due to communication cable connections, the Main Unit must be mounted in a location that
will provide a minimum of 50 mm clearance surrounding the Unit. Cable connections on the
front of the Unit require 100 mm of clearance.
4.2.3 Axis Controller Unit Dimensions
FIG. 4-2-3 Axis Controller Unit Dimensions
Due to communication cable connections, the Axis Units must be mounted in a location that
will provide a minimum of 100 mm clearance above and below each Unit. The Units must be
mounted with a minimum clearance of 25 mm on each side to allow for proper heat
dissipation. Cable connections on the front of the Units require 100 mm of clearance.
Chapter 4: System Setup and Wiring User Console Version A3.53
Page 4-4
