FEC AFC1200 User Manual
Page 10
)(& ,QF
4.6.3 Axis Unit Power Requirements and Connections
WARNING:
Follow Lockout/Tagout and other safety precautions when
connecting or disconnecting cabling, wiring, and equipment.
FRAME GROUND
D
200~230 VAC + 10%, 50/60Hz, 3-Phase
C
200~230 VAC + 10%, 50/60Hz, 3-Phase
B
200~230 VAC + 10%, 50/60Hz, 3-Phase
A
DESCRIPTION
PIN NUMBER

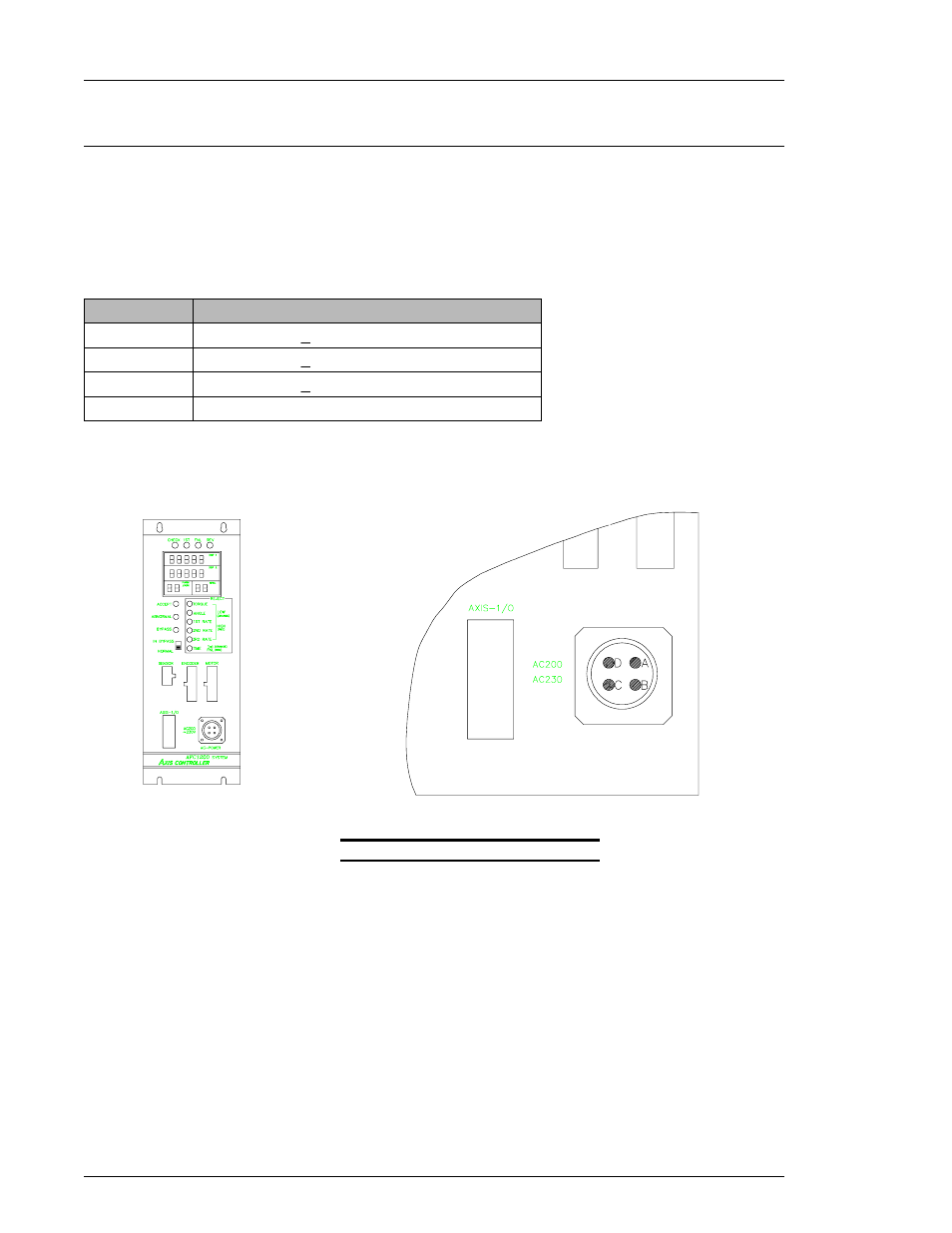

Fig. 4-6-3 Axis Unit Power Connector
NOTE: After an Axis Unit is powered down, the power must not be applied again for at least five (5)
seconds. Repeated power up and power down may temporarily disable an Axis Unit. If an
Axis Unit does become disabled, turn the power off for five (5) minutes before making
another attempt to power up.
Chapter 4: System Setup and Wiring
User Console Version A3.53
Page 4-10
