4.8.7 Modicon Input Card B833-016 Main and Axis Unit Connection

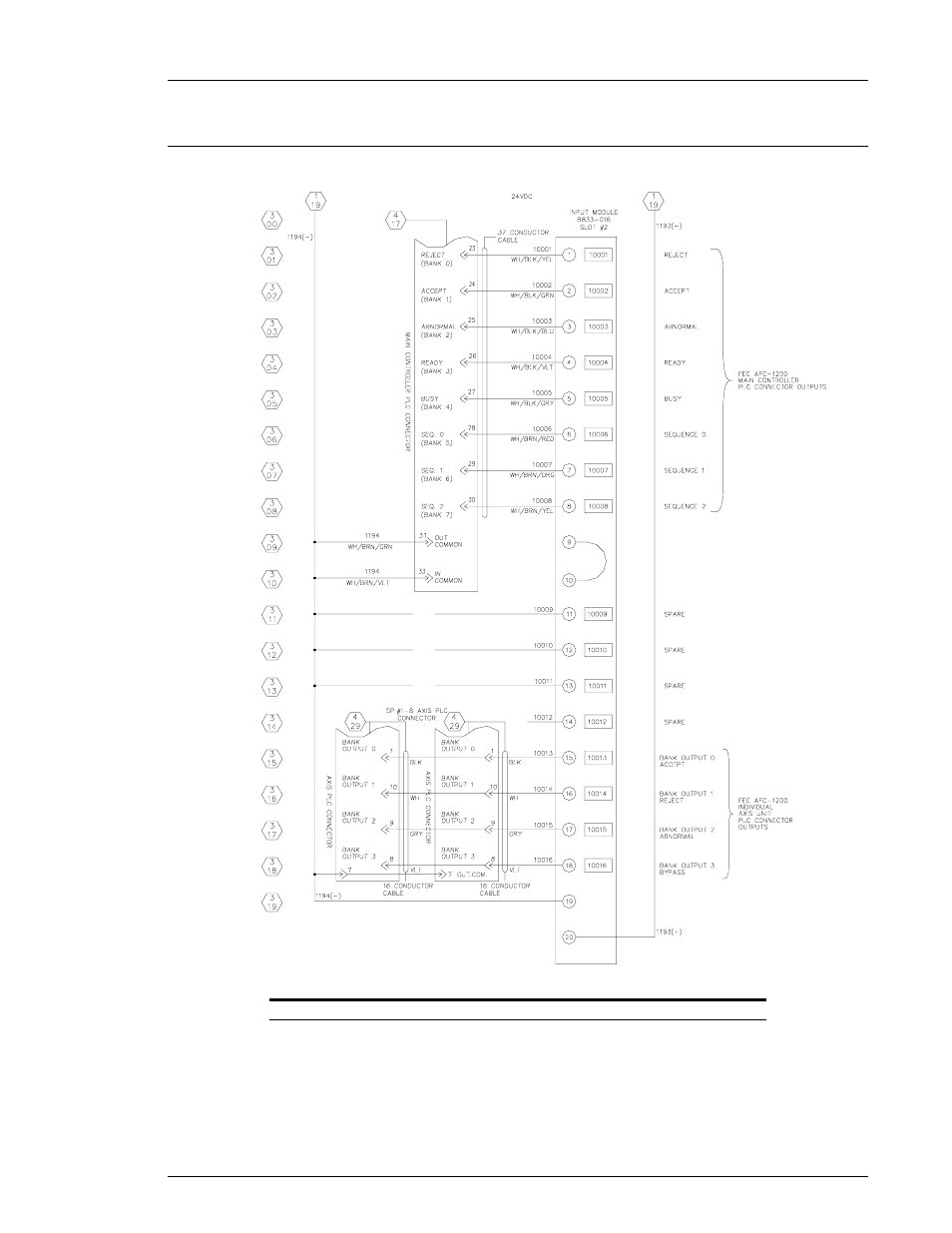

FIG. 4-8-7 Modicon Input Card B833-016 Main and Axis Unit Connection
NOTE: The Output Common connection on Pins 31 and 32 are electrically the same signal. These
two pins should be connected to the 0 VDC reference for the PLC input card. The Input
Common connection on Pins 33 and 34 are electrically the same signal. These two pins
should be connected to the 0 VDC reference for the PLC output card. Normally, the PLC
output and inputs will utilize the same Common.
Chapter 4: System Setup and Wiring User Console Version A3.53
Page 4-29
