4.5 Wiring Diagrams
WARNING:
Follow Lockout/Tagout and other safety precautions when connecting and/or
disconnecting cabling, wiring, and equipment.
SOURCE VOLTAGE
MAIN UNIT
AXIS
AXIS
AXIS
CB
CB
NO. 1
200~230 VAC
VGA CRT
(MONITOR)
COMMUNICATION BUS RIBBON CABLE
UNIT
UNIT
UNIT
NO. 2
NO. n
110 VAC
HOMERUN CABLES (3)
PROGRAMMABLE
LOGIC CONTROLLER
(PLC)
TOOL 1
TOOL 2
TOOL n

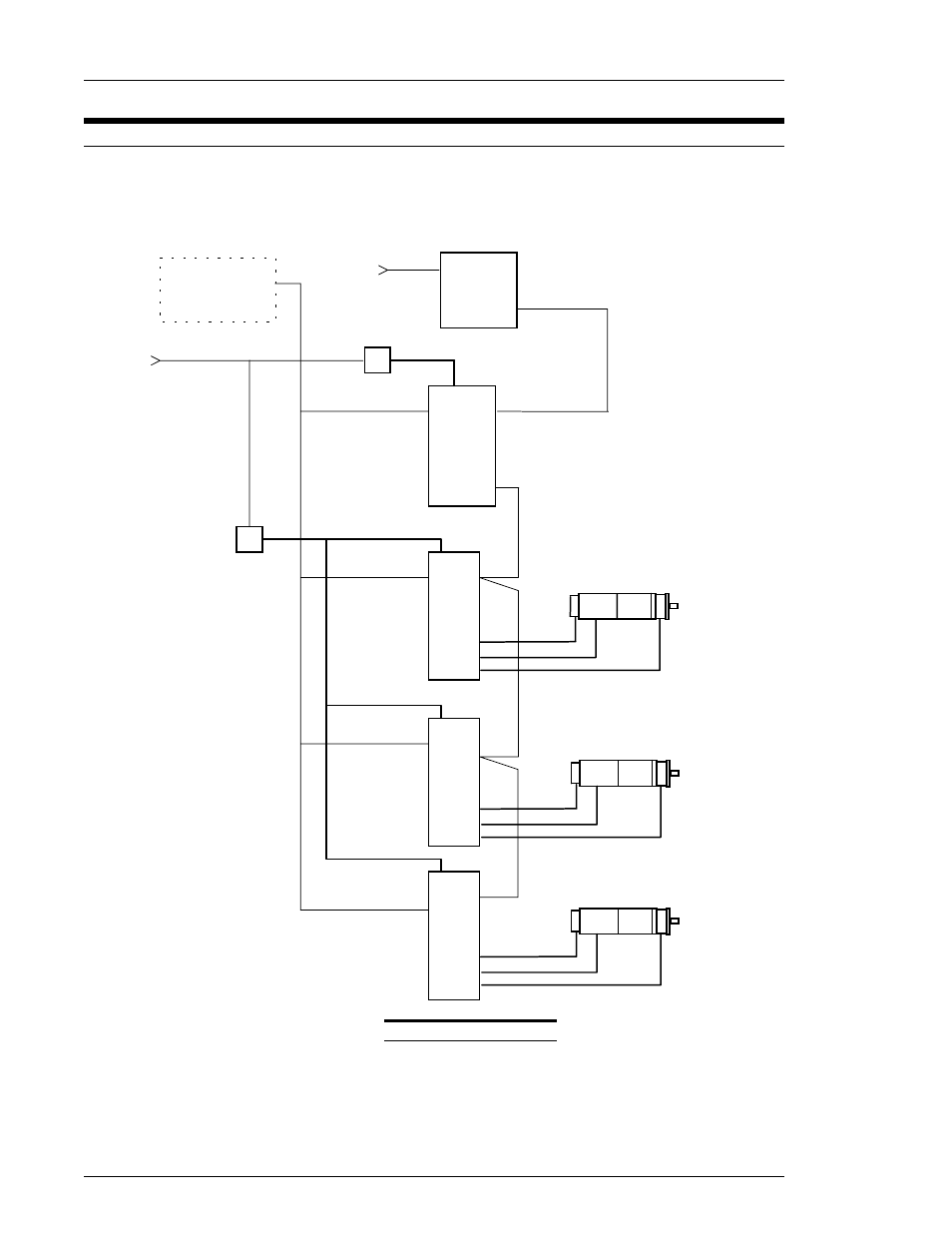

FIG. 4-5 Wiring Diagram
A basic layout of System component interconnection is shown in Figure 4-5. Detailed
reference drawings can be found throughout this Chapter, and also in Appendix A.
The layout includes a Programmable Logic Controller (PLC), which is not supplied with the
System, but is required for automatic System operation. If a PLC is not already available at
the System installation site, one can be supplied with the System as an option.
