4.6.5 Power Distribution Reference Drawing
WARNING:
Follow Lockout/Tagout and other safety precautions when connecting and
disconnecting cabling, wiring, and equipment.
The following drawing is provided as a reference for the design and connection of power to
the AFC1200 System. Refer to the preceding Sections of this manual to determine the
correct transformer and fuse requirements for each specific application.

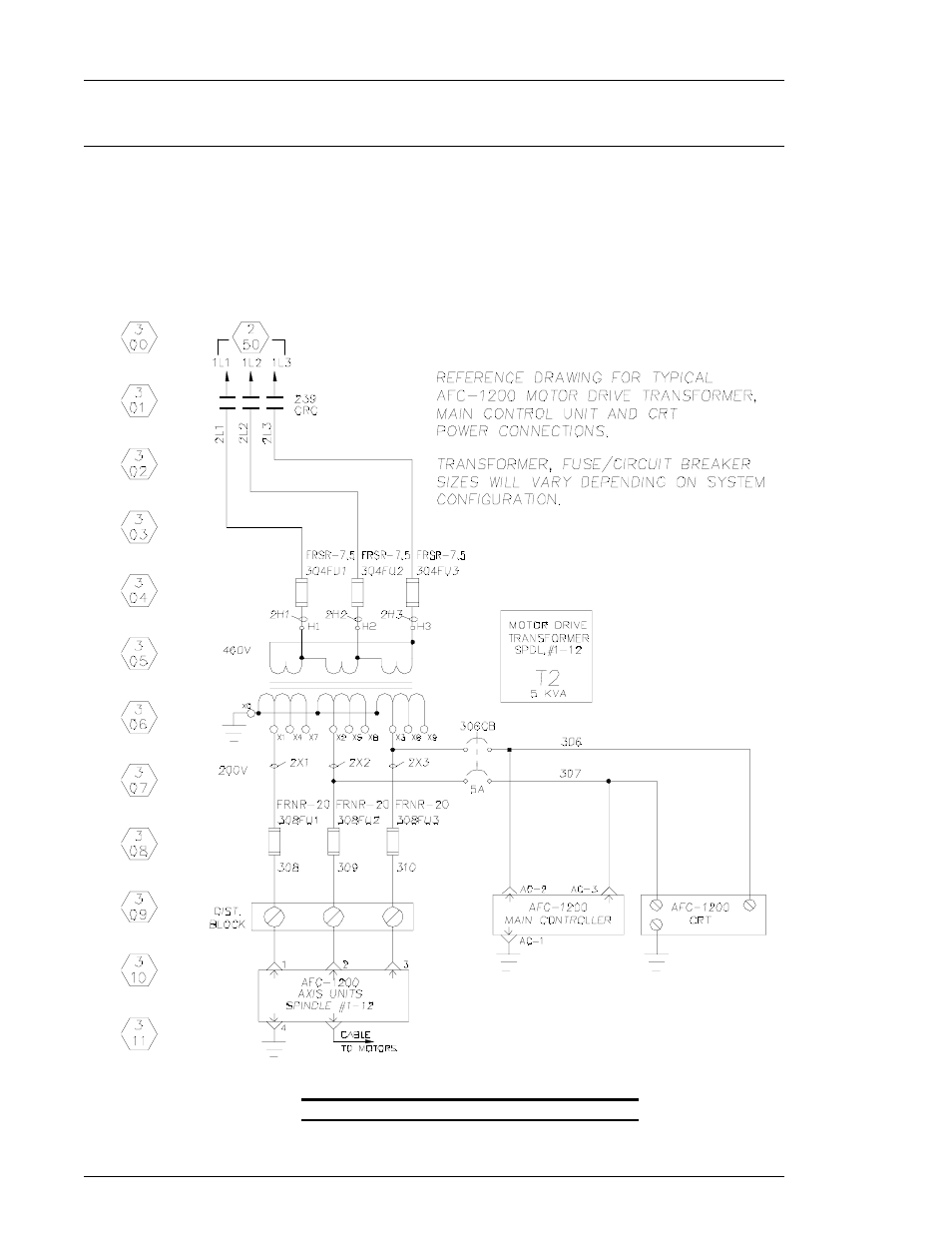

FIG. 4-6-5 Power Distribution Reference Drawing
