INTERVAL DATA RECORDER (IDR)
62-0394-03 34

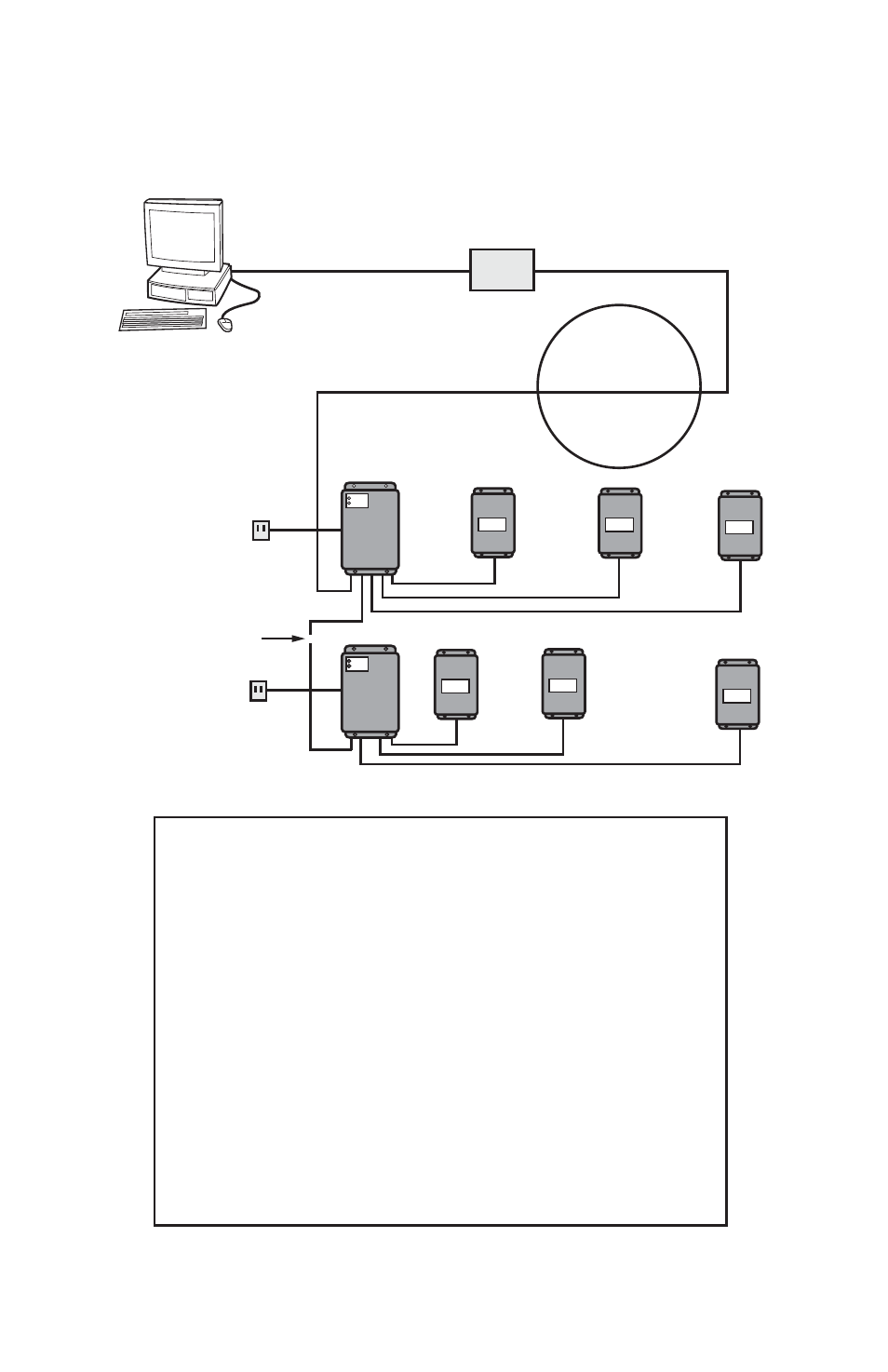

Appendix E - System Wiring Guides
NOTE: METERS 1-8 MUST BE INSTALLED WITHIN 500 FEET OF IDR.
(UP TO 8
METERS)
(UP TO 8
METERS)
~~
4-CONDUCTOR
FLAT MODULAR CABLE
UP TO 4000 FEET TOTAL
DAISY-CHAIN
UP TO 52 IDRS
3 FT USB A TO USB B CABLE
CONNECTS VIA
USB PORT ON PC
PC
RJ-11
6-COND.
RJ-45
RJ-11
6-COND.
RJ-45
6-COND.
RJ-45
IDR A
IDR Z
CONNECTION CABLE TYPE CONNECTOR
IDR TO E-MON D-MON METERS 1-8 6-COND. 22-26 AWG RJ-45
(PINS 1 & 8 NOT USED)
IDR TO IDR 4-COND. 26 AWG RJ-11
IDR TO USB KEY 4-COND. 26 AWG RJ-11
USB KEY TO COMPUTER** 3 FT USB A to USB B Cable RJ-45/DTE
IDR TO PULSE METER 2-COND. 14-22 AWG
** SUPPLIED BY E-MON
NOTE: INTERIOR INTERCONNECTING COMMUNICATIONS ARE SUPPLIED WITH THE
PRE-WIRED MMU-TYPE METERING CABINETS.
NOTE: WHEN CONSTRUCTING FIELD-INSTALLED CABLES, MODULAR CABLES MUST BE
MADE SO THAT THE INDIVIDUAL WIRES GO THROUGH ON THE SAME PIN NUMBER.
* CONTACT E-MON FOR USB-ONLY CONNECTION.
AC ADAPTER
AC ADAPTER
USB
KEY*
M34078B
