GREEN CLASS METER
62-0415-01 20
6.3 KWh Meter Hardware Functions

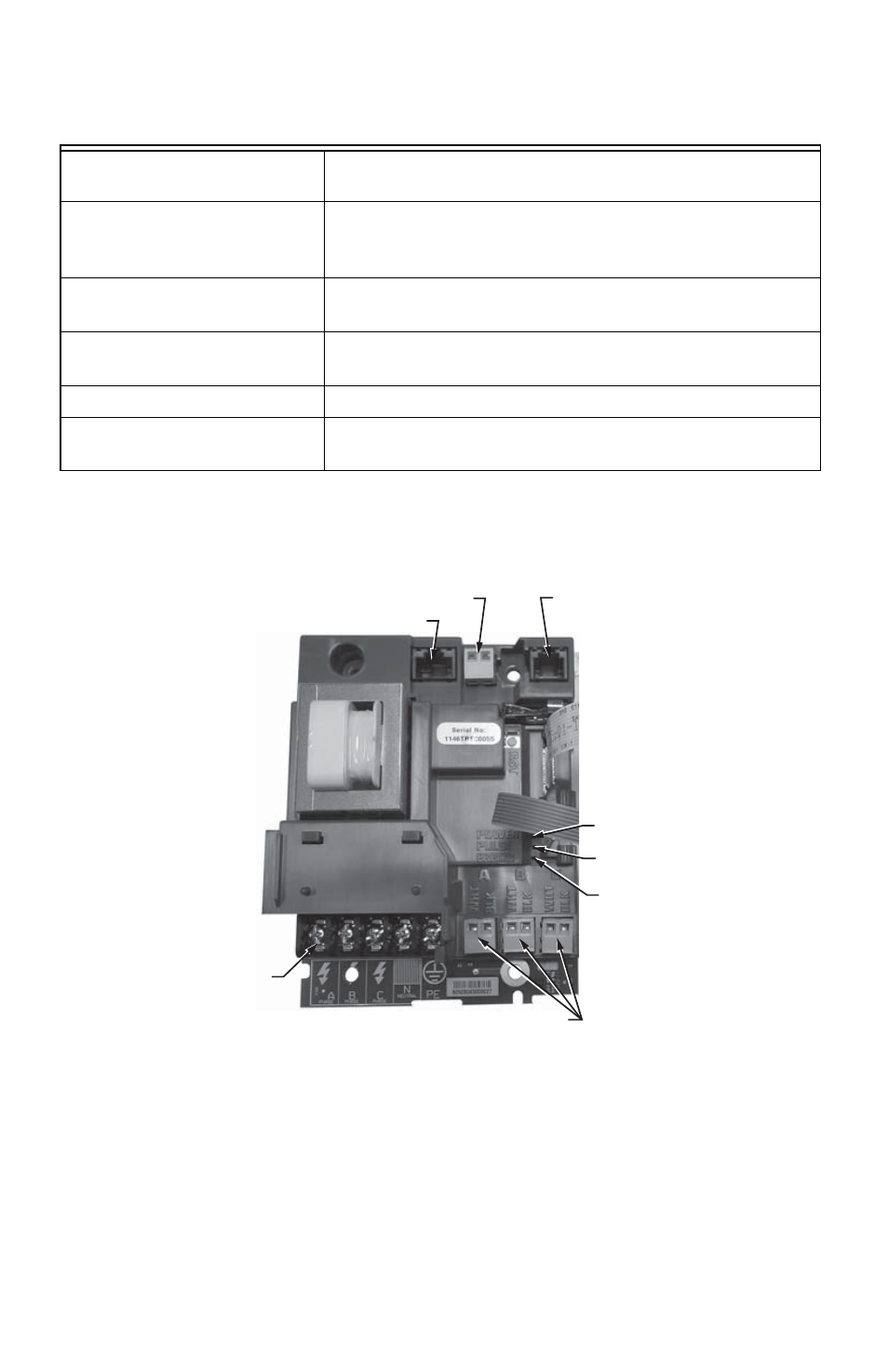

Fig. 14. Hardware Functions
IDR Jack 8-pin RJ-45-used to connect kWh meter to the E-Mon
Energy automatic meter reading system.
Calibration Jack Connector J11 is for factory calibration only, and is not
a user accessible port. Silicon plug is not to be
removed.
Error LED When lit, indicates that the current sensor is
backwards or on the incorrect phase.
Meter Pulse LED Blinks to show the meter load. Blink rate increases with
load.
Power On LED When lit, indicates power to meter is on.
Pulse Output Optically isolated output pulse for connection to BAS or
peripheral equipment.
M33212
ERROR
LED
METER
PULSE LED
POWER
ON LED
IDR JACK
PULSE OUTPUT CALIBRATION
JACK
SEE
DESCRIPTION
ABOVE
HEADER
CONNECTOR
(CURRENT
SENSORS)
MAIN
POWER
TERMINAL
BLOCK
