6.3 KWh Meter Hardware Functions
The Main circuit board is located inside the meter enclosure.

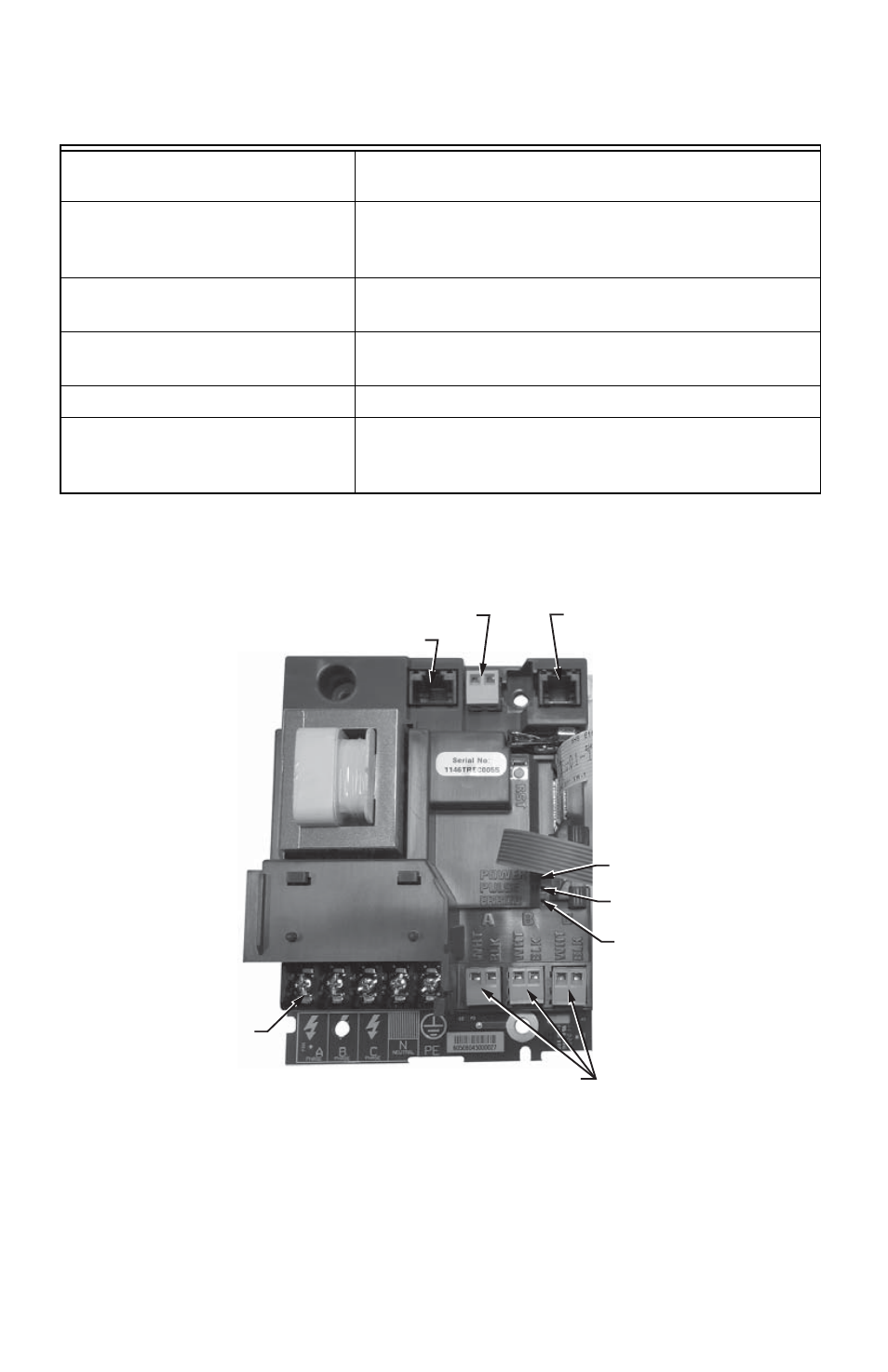

Fig. 14. Hardware Functions
IDR Jack
8-pin RJ-45-used to connect kWh meter to the E-
Mon Energy automatic meter reading system.
Calibration Jack
Connector J11 is for factory calibration only, and is
not a user accessible port. Silicon plug is not to be
removed.
Error LED
When lit, indicates that the current sensor is
backwards or on the incorrect phase.
Meter Pulse LED
Blinks to show the meter load. Blink rate increases
with load.
Power On LED
When lit, indicates power to meter is on.
Pulse Output
Optically isolated output pulse for connection to
BAS or peripheral equipment.
