Preamp
0 OK
1 Zero too high
2 Amplifier output doesn't match test input
3 Both Failed
>3 Call factory for information
Cell
0 OK
1 Failed (open filament, short to ground, no
power.)
2 Unbalance (deterioration of filaments, blocked
tube)
4.3 Major Internal Components

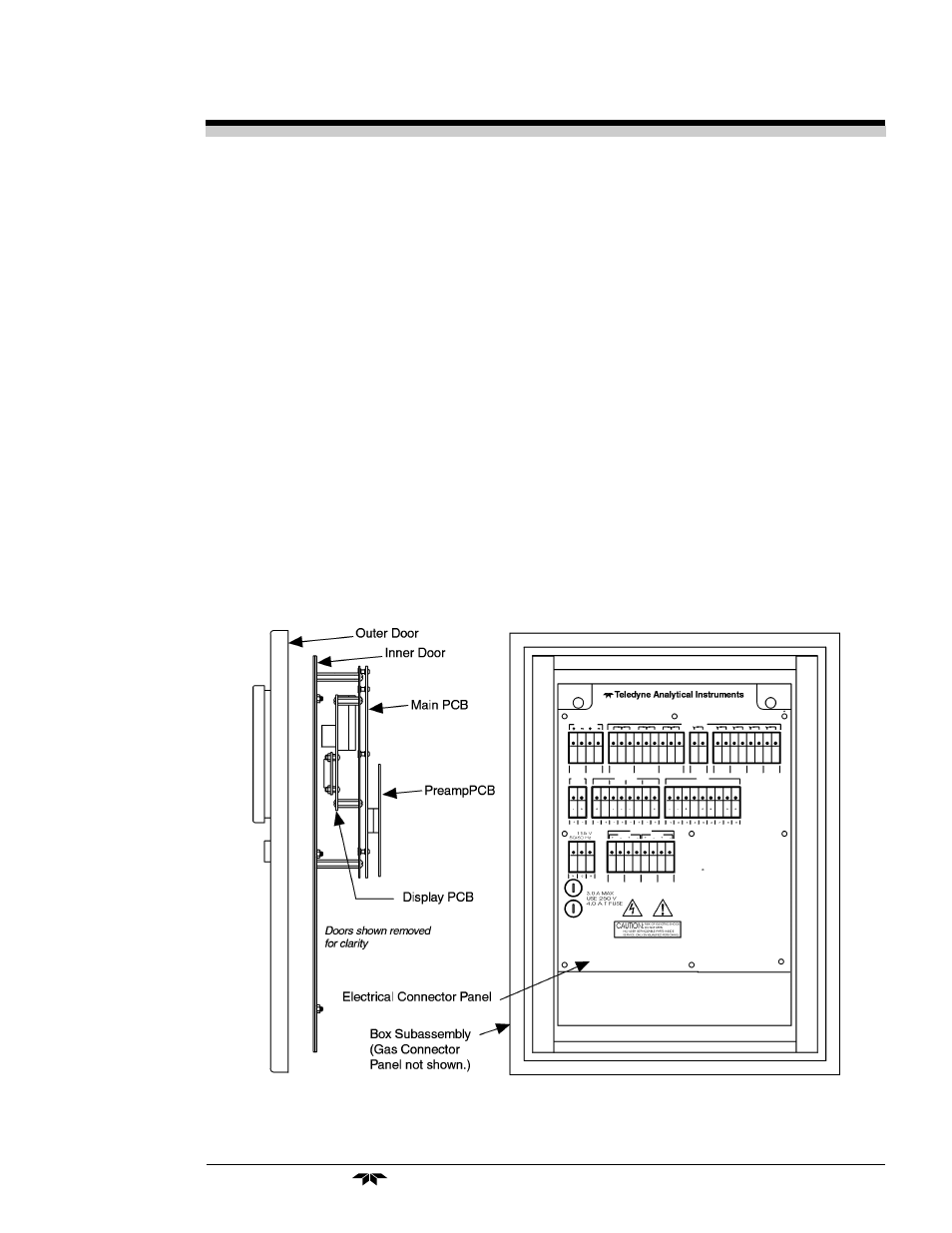

The major components in the Control Unit are shown in Figure 4-3.
Figure 4-3: Control Unit Major Internal Components
