2 Installation Model 6000B
2-2: Part I
Teledyne Analytical Instruments

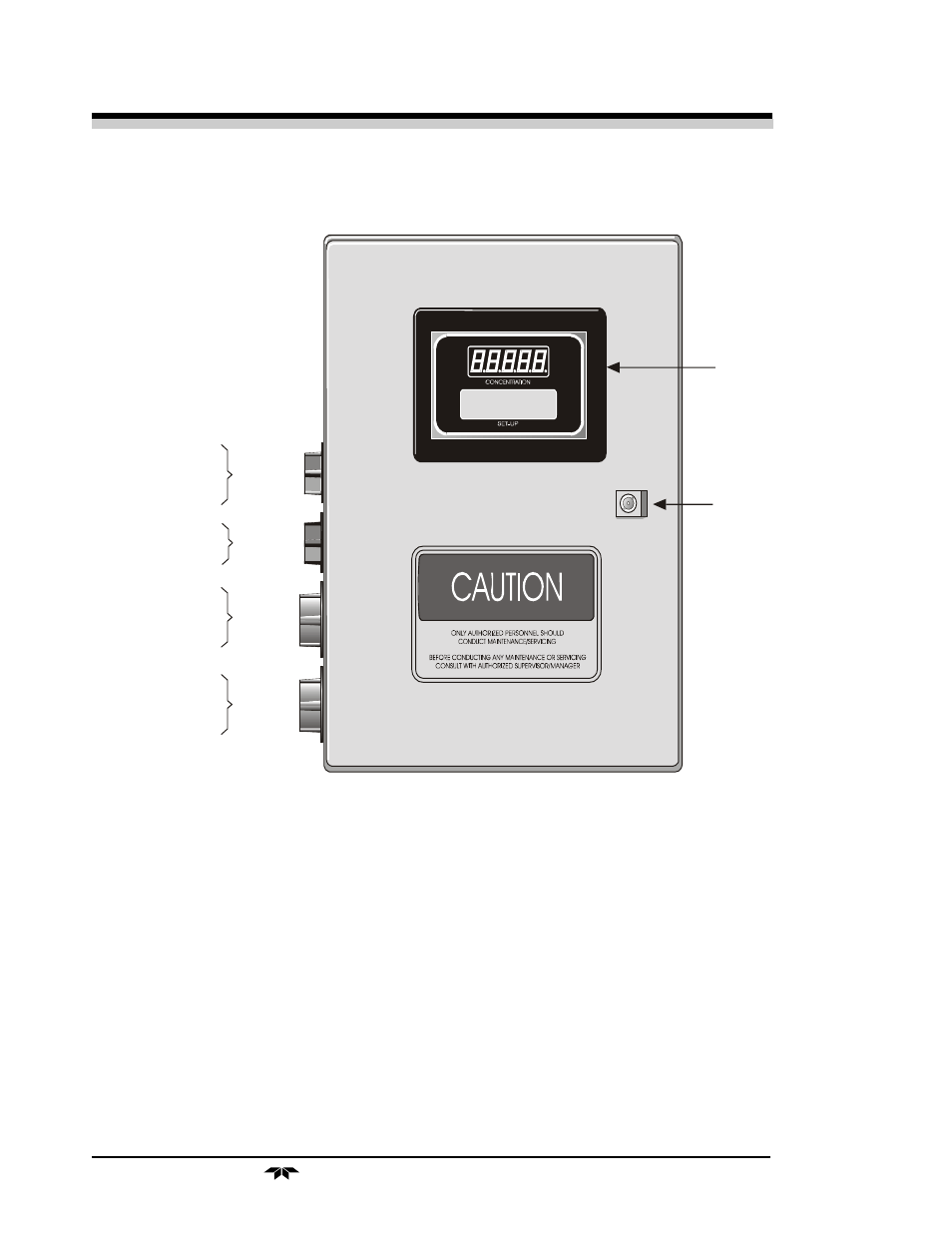

Figure 2-1: Front Panel of the Model 6000B Control Unit
All operator controls are mounted on the inner control panel "door",
which is hinged on the left edge and doubles as a door to provide access to
the internal components of the instrument. The door will swing open when
the button of the latch is pressed all the way in with a narrow gauge tool
(less than 0.18 inch wide), such as a small hex wrench or screwdriver
0.0 % Anlz
AL-1
NPT Fittings
supplied by
customer
3/4" NPT
3/4" NPT
1" NPT
1" NPT
AC POWER IN
50/60 HZ
115V
ALARM OUTPUTS
DIGITAL INPUT SPAN ZERO
CAL. CONTACT RANGE
ID CONTACTS RS-232
SOLENOID RETURN
ANALOG OUTPUTS
NET WORK
Viewing
Window
Outer Door
Latch
