Photometric Analyzer

Operation 3

Part I 3-25

Teledyne Analytical Instruments

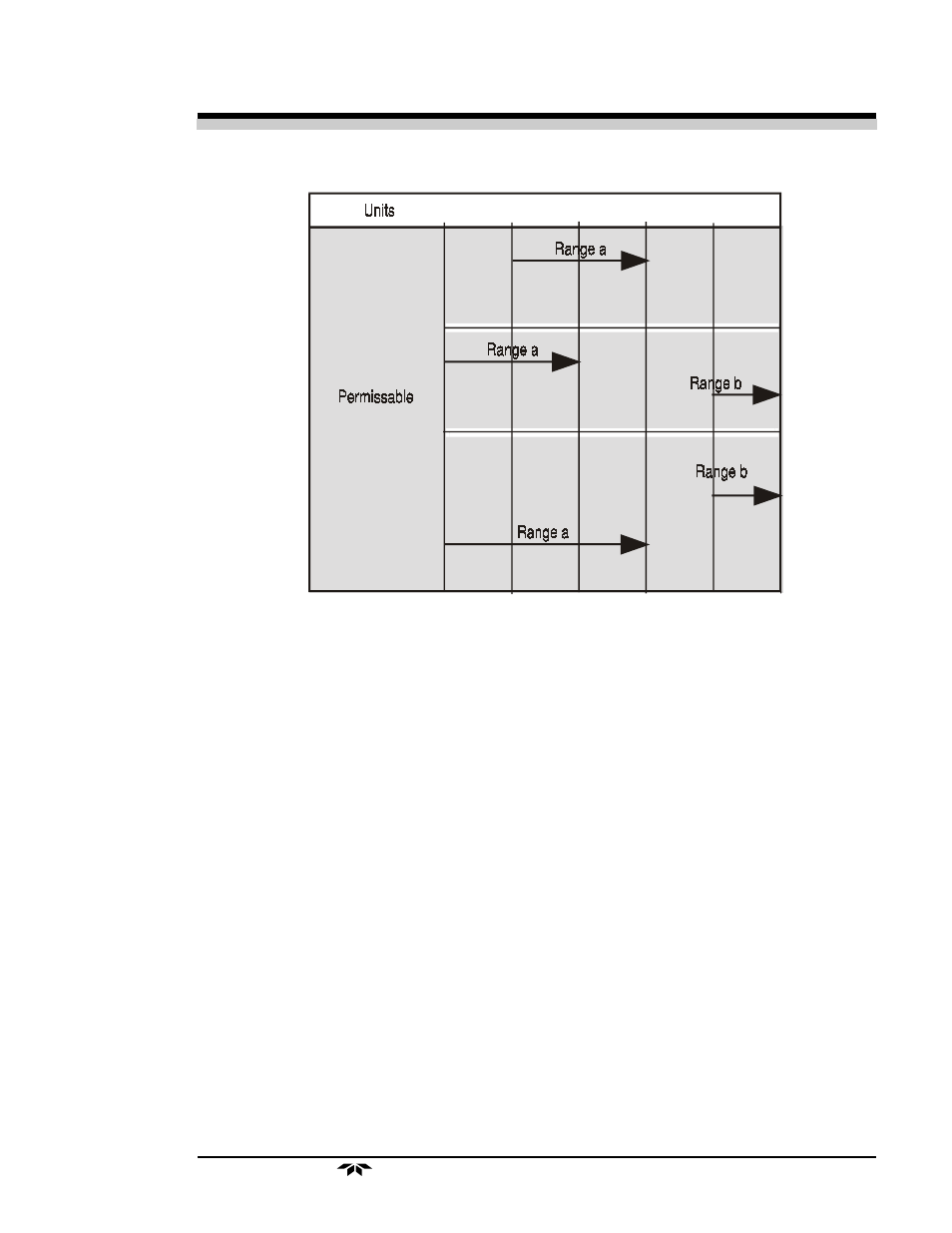

Figure 3-2: Examples of Autoranging Schemes

3.7

The

Analyze

Function

Normally, all of the functions automatically switch back to the

Analyze

function when they have completed their assigned operations. Pressing the

Escape

button in many cases also switches the analyzer back to the

Analyze

function. Alternatively, you can press the

Analyze

button at any time to return

to analyzing your sample.

The

Analyze

function screen shows the impurity concentration and the

application gases in the first line, and the range in the second line. In the lower
right corner, the abbreviation

Anlz indicates that the analyzer is in the

Analyze

mode. If there is an * before the

Anlz, it indicates that the range is linearized.

1.95 ppm SO2

R1:Ø 10 *Anlz

0 0.01 0.1 80 90 100
