Part I: 1-3
Photometric Analyzer Part I: Control Unit
Teledyne Analytical Instruments

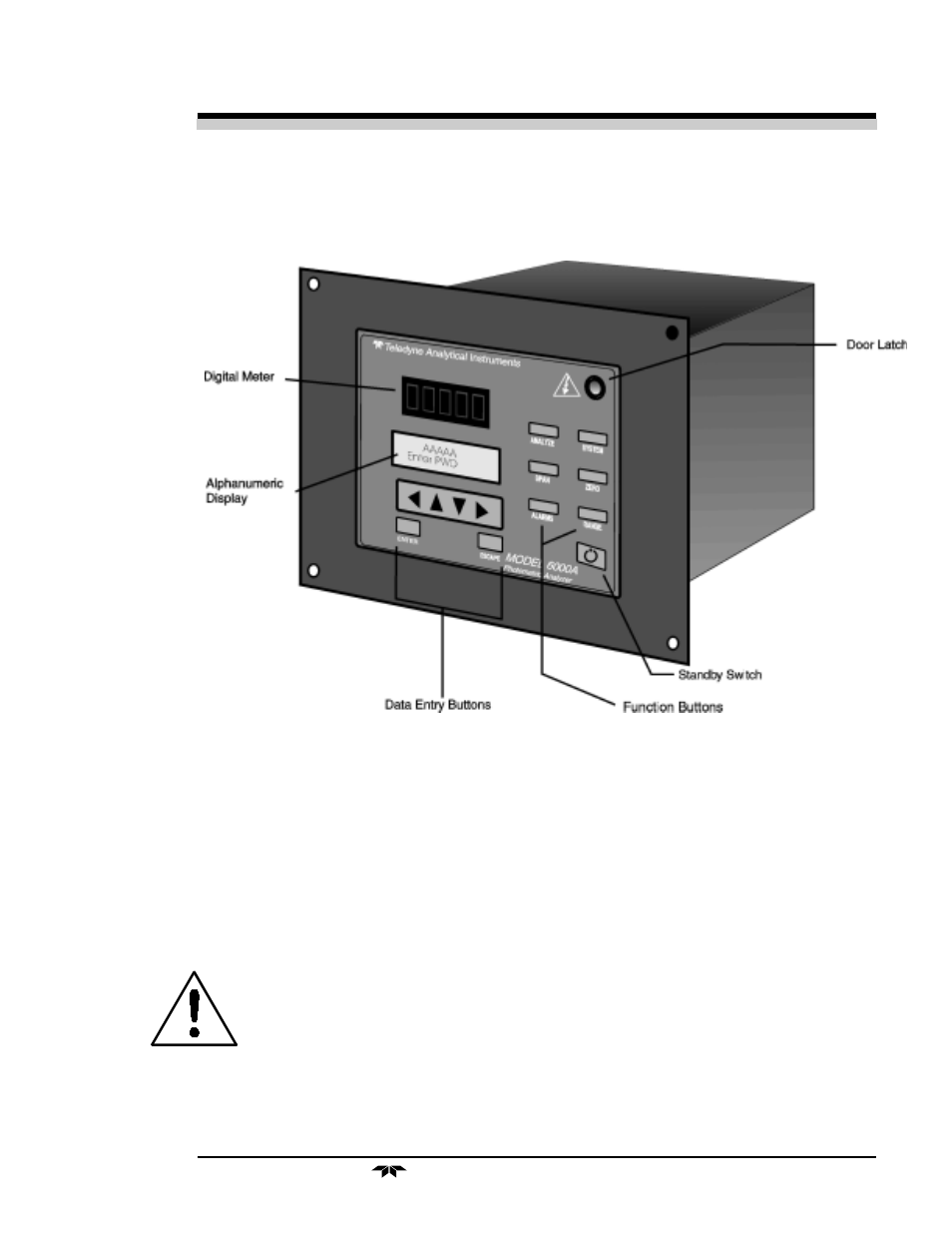

Figure 1-1: Front of Panel Control Unit
Function Keys: ---- touch-sensitive membrane switches are used to change
the specific function performed by the analyzer:
• Analyze Perform analysis for concentration content of a sample.
• System Perform system-related tasks (described in detail in chapter
3, Operation.).
• Span Span calibrate the analyzer.
• Zero Zero calibrate the analyzer.
• Alarms Set the alarm setpoints and attributes.
• Range Set up the 3 user definable ranges for the instrument.
