Introduction Model 3110
Teledyne Analytical Instruments 2

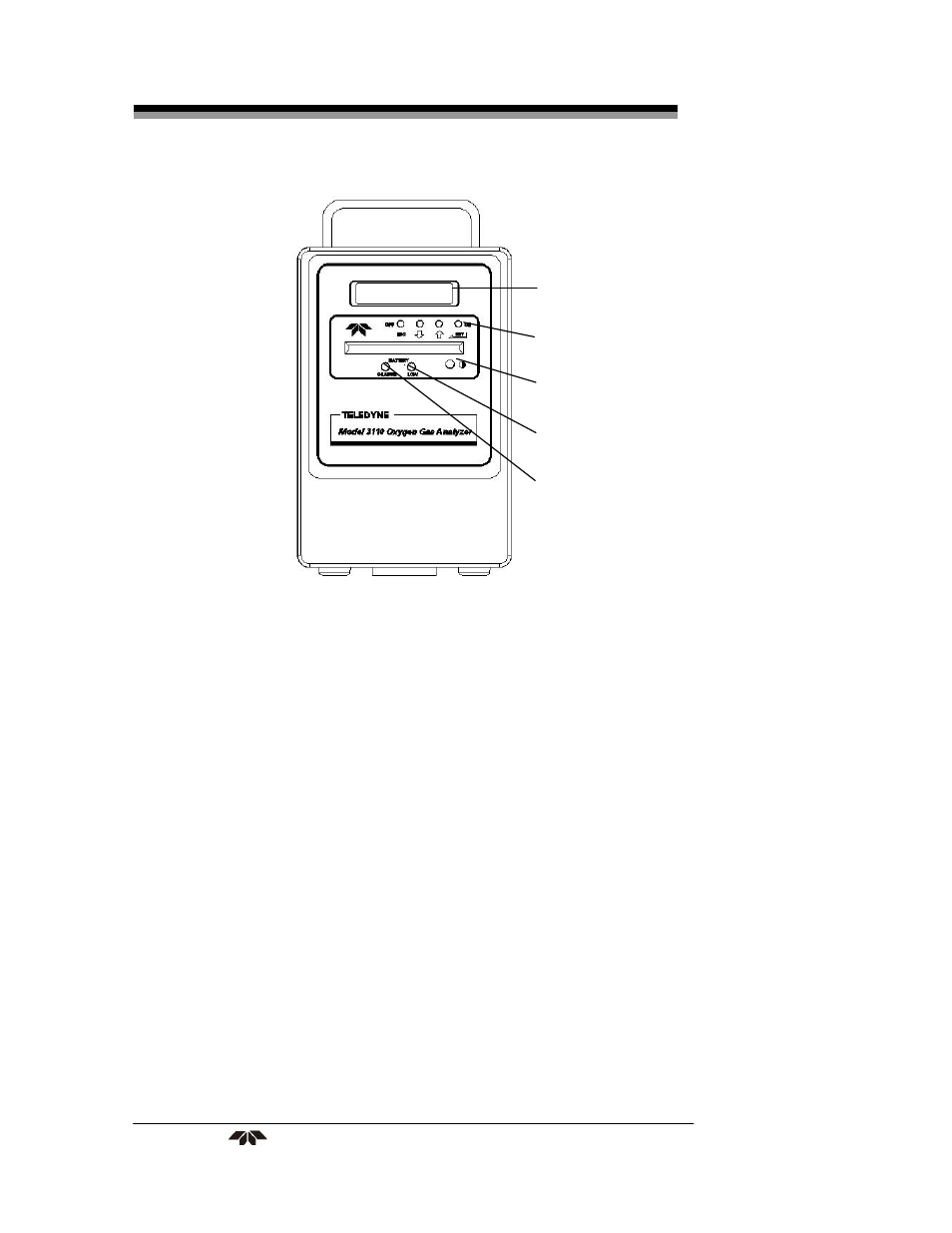

Figure 1-1: Model 3110 Portable Trace Oxygen Analyzer
1.2 Features
This instrument is designed to be versatile analytical instrument
and to perform reliably and accurately in analyzing oxygen
concentrations in gas mixtures from ppm levels through 25% oxygen.
The following features are standard on the Model 3110:
 Display:
A 2-line 20 character alphanumeric LCD
on the front panel displays data and
operational information through various
screens. The contrast is adjustable for
various lighting conditions.
 Four-Button User Interface: Operation is performed using the
four front panel mounted buttons. These
buttons are used to enter data, select items
and move through operational screens that
appear on the display.
 Universal AC Charge Adapter: The batteries can be recharged
without removing them from the
instrument. The charger operates over the
range of 100-240 VAC.
Alphanumeric
LCD
Contrast
Adjustment
User Interface
Buttons
Low Battery
Indicator
Battery
Charging
Indicator
