The number of yellow LEDs lit in the Probe LED bar graph array
indicates detected hydrogen concentrations in four ranges as
noted below:
1 Yellow LED:
> 0.01% hydrogen
> 100 ppm
2 Yellow LEDs:
> 0.1% hydrogen
> 1,000 ppm
3 Yellow LEDs:
> 1% hydrogen
> 10,000 ppm
4 Yellow LEDs:
> 10% hydrogen
> 100,000 ppm

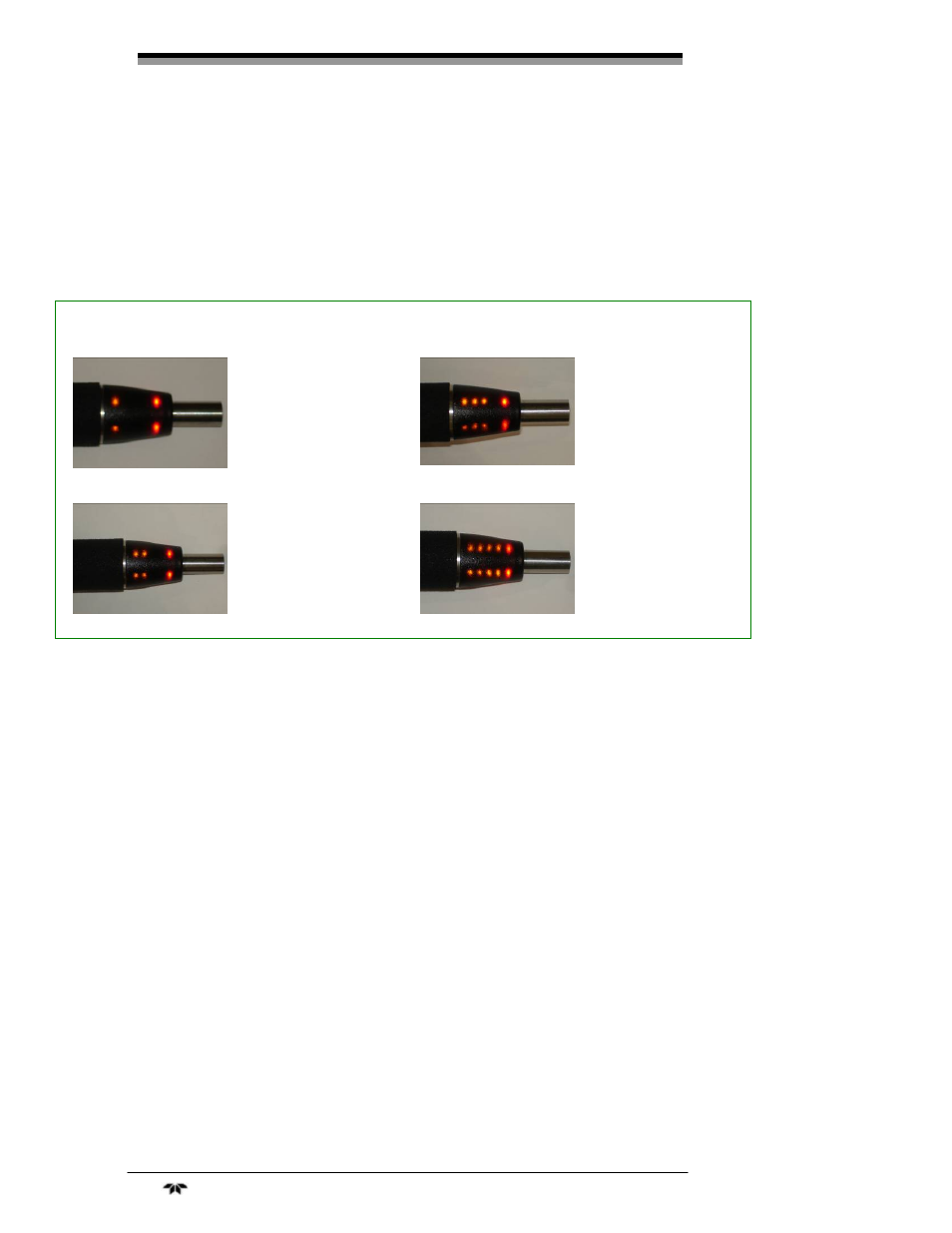

LED Bar Graph Array
