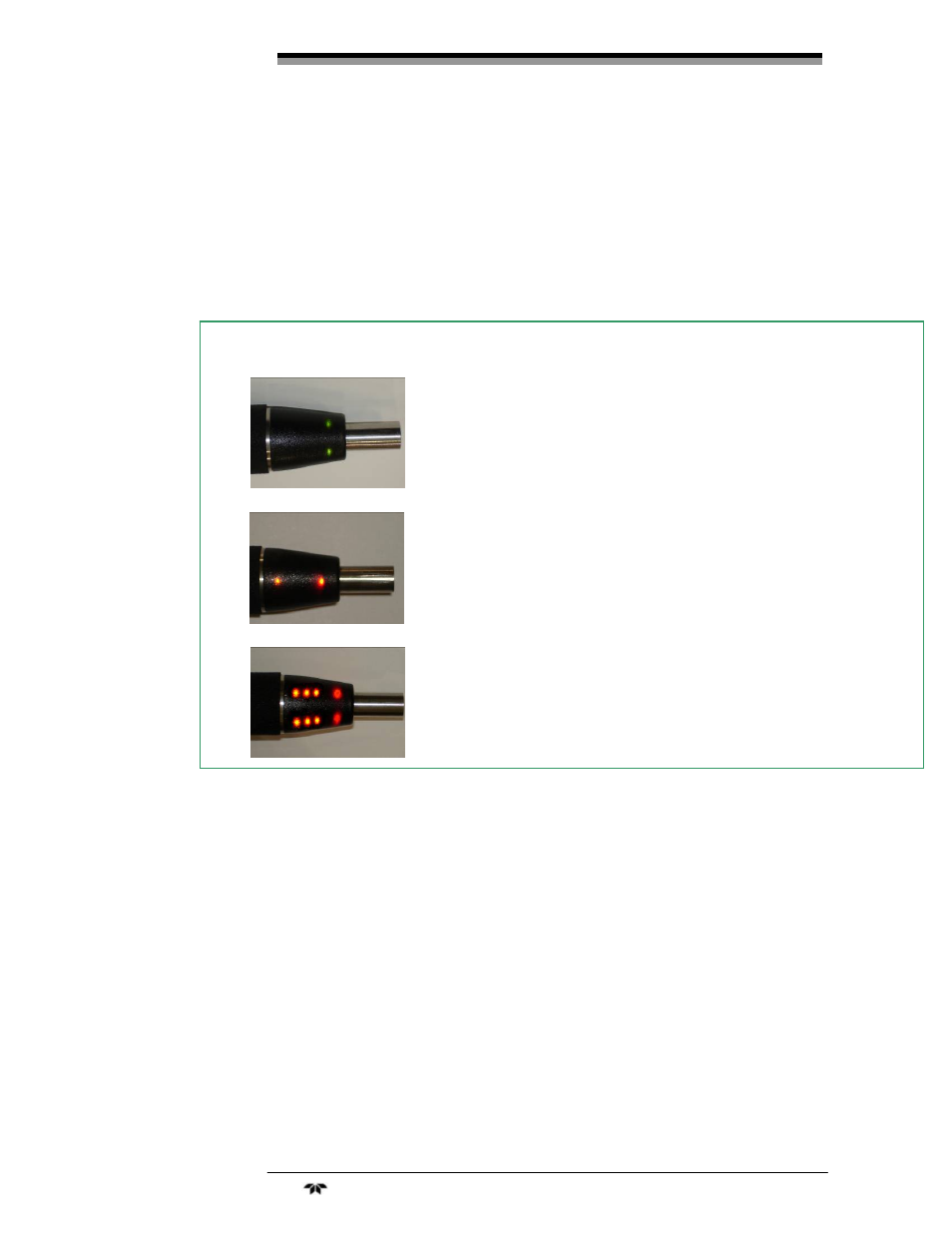

The Probe Tip LED Indicator shows an increase or decrease in
hydrogen concentration. Leak detection is accomplished by watching
the Probe Tip LED and the bar graph array and moving the sensor
around a potential hydrogen leak.

Solid Green

- Unit ready
- < 15 ppm hydrogen

Pulsing Green

- Decreasing H2 level

Solid Amber

-

System

startup

- Steady H2 level

Pulsing Red

- Increasing H2 level

Alternating Red, Green - Fluctuating H2 level

Probe Tip Colors
