1.7 Note any limits to the pump application
specified in the contract documentation.
Operation of the equipment outside these
limits will increase the risk from hazards
noted below and may lead to premature and
hazardous pump failure.
1.8 Clear and easy access to all controls,
gauges and dials etc. MUST be maintained
at all times. Hazardous or flammable
materials must NOT be stored in pump
rooms unless safe areas or racking and
suitable containers have been provided.
1.9 IMPROPER INSTALLATION, OPERATION
OR MAINTENANCE OF THIS SPP PUMPS
LTD PRODUCT COULD RESULT IN
INJURY OR DEATH.
1.10 Within the manual, safety instructions are
marked with safety symbols.
Hazard
This symbol refers to general
mechanical aspects of safety.
Hazard
This symbol refers to electrical
safety.
This symbol gives
warning of a hazard to the
pump itself, which in turn, could cause a risk
to personal safety.
2. Transport Handling and
Storage Instructions
2.1 Transport
Unistream pumps are despatched fully
assembled but for overseas orders the
lubricating oil in the bearing housing is
drained. Pumps are protected against
corrosion and packed for transport by normal
road, rail and sea carriers.
2.2 Handling
Crushing Hazard
When lifting the pump unit, use
lifting equipment having a safe
working load rating suitable for the weight
specified. Use suitable slings for lifting any
pump not provided with lifting points.
The use of suitable forklift truck and four-
chain
crane sling equipment is
recommended but locally approved
equipment of suitable rating maybe used.

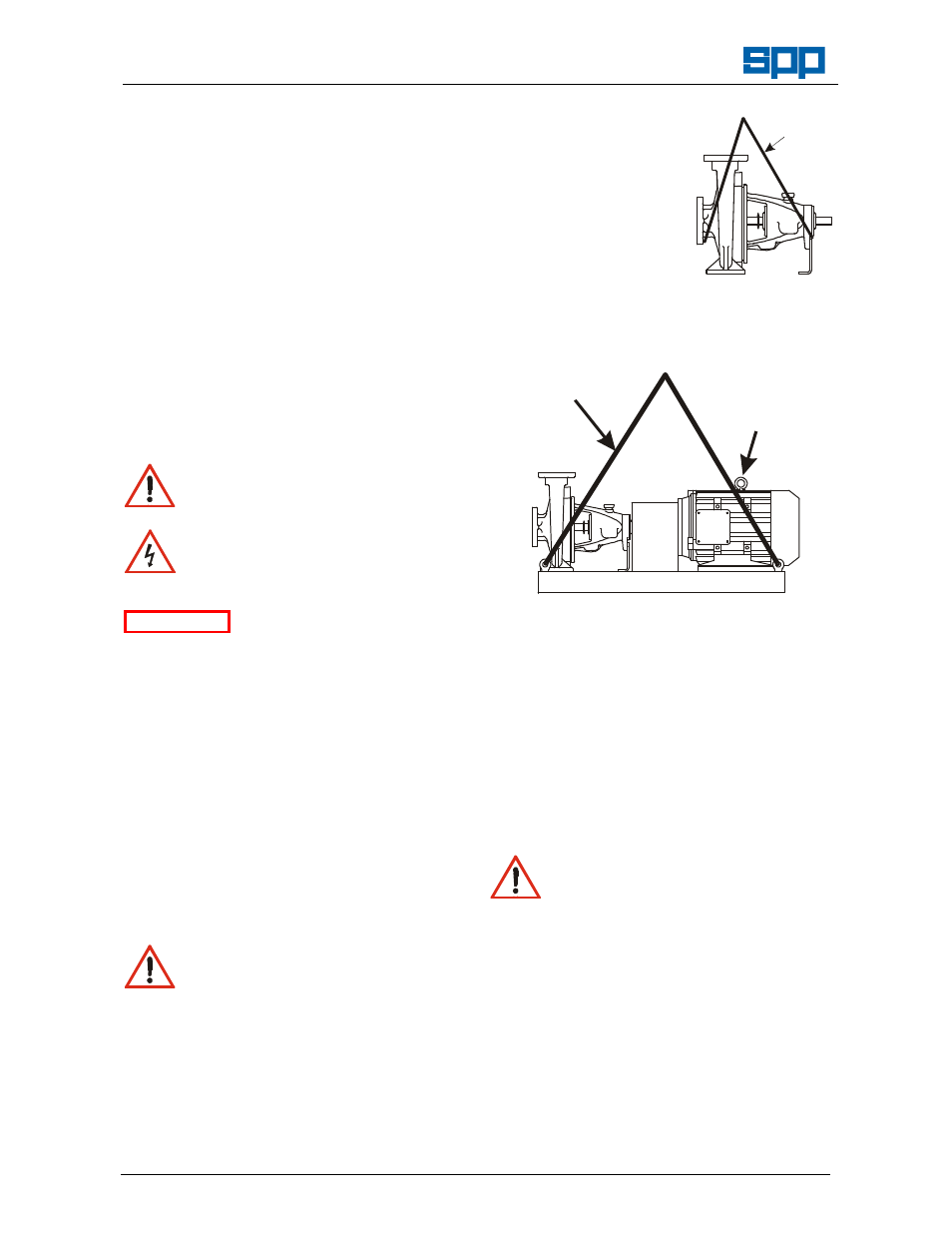

Pumps supplied on
pallets may be lifted
by forklift truck, to lift
from the pallet the
pump
should be
slung as shown.
Pump weight is
shown on the
General Arrangement
drawing.
Pumpsets fitted with lifting eyebolts must be
lifted using suitable four chain lifting
equipment thus
Sling here for lifting
complete pumpset
Eyebolt for
lifting motor
alone
2.3 Storage
2.3.1 Temporary Storage for up to Six Weeks
If the pump unit is not to be used
immediately it should be stored carefully in a
horizontal position, in a sheltered, dry
location. Additional rust preventative should
be applied to all unpainted carbon steel or
cast iron parts, and should not be removed
until final installation.
2.3.2 Long Term Storage
Shearing Hazard
DO NOT place fingers or hands etc.
into the suction or discharge pipe
outlets and do NOT touch the impeller, if
rotated this may cause severe injury.
To prevent ingress of any objects, retain the
protection covers or packaging in place until
removal is necessary for installation. If the
packaging or suction and discharge covers
are removed for inspection purposes,
replace afterwards to protect the pump and
maintain safety.
Fill the bearing housing with recommended
oil to ensure that the shaft and bearings
remain rust free. Remove the gland,
packing rings and lantern ring, cover metallic
parts with rust preventative and wrap all
ATTENTION
Sling
