1. INTRODUCTION
The purpose of this handbook is to lay down
operating guidelines and routine maintenance
instructions for the AUTOPRIME Q Range of
diesel engine driven pumps, featuring the
electric priming system (SMARTprime).
Instructions and statements contained within
this handbook are given with our best
intentions and are correct at the time of
compilation. They are subject to alteration at
any time.
These pumps are most commonly supplied
mounted on 2 wheel road trailers but can also
be supplied on site trailers, skid mounted, or
as a pod unit for customer’s to mount on
suitable foundations.
This Handbook covers the following pumps:
QI 100 – 4” automatic priming mobile pump
driven by an Isuzu 3LB1 diesel engine
mounted in a bunded and sound reducing
canopy.
QI 150 – 6” automatic priming mobile pump
driven by an Isuzu 3LD1 diesel engine
mounted in a bunded and sound reducing
canopy.
QC 150M (CAT) / QP 150M (Perkins – 6”
automatic priming mobile pump driven by a
CAT C2.2NA (QC) or a Perkins 404D-22
(QP) diesel engine mounted in a bunded and
sound reducing canopy.
QC 200 (CAT) / QP 200 (Perkins) – 8”
automatic priming mobile pump driven by a
CAT C2.2NA (QC) or a Perkins 404D-22
(QP) diesel engine mounted in a bunded and
sound reducing canopy.
QHH80 – 3” automatic priming, high head
mobile pump driven by an Isuzu 4LE2 diesel
engine mounted in a bunded and sound
reducing canopy.

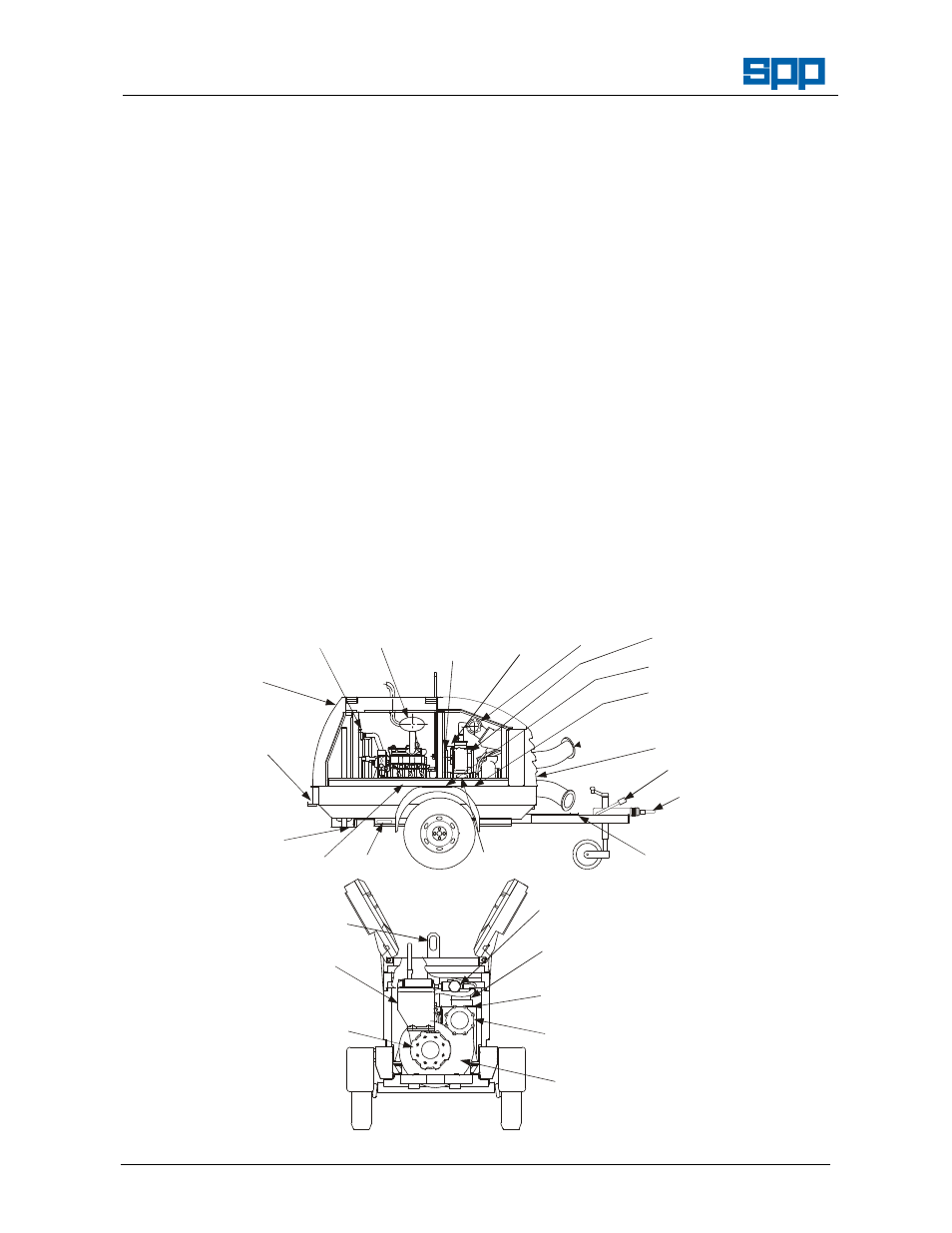

DRIVE END
SHAFT BEARING
VACUUM
PUMP COALESCER
(far side)
FUEL
FILLER
PRIMING TANK
AIR FILTER
PUMP END
SHAFT BEARINGS
ENGINE OIL FILLER
AND DIPSTICK STRAPPING
& SECURITY LOOPS
CONTROL
PANEL
RADIATOR
FILLER CAP EXHAUST
SILENCER
SUCTION
FLANGE
DELIVERY
FLANGE
NON RETURN
FLAP VALVE
UNIT
LIFTER
PRIMING
TANK
VOLUTE
FRONT PANEL
VACUUM PUMP
DRIVE BELT
AND CLUTCH
JACK STAND
LIGHTING BOARD
AND STRAPPING
CHANNEL
STRAPPING
CHANNELS
BALL OR
RING HITCH
HAND BRAKE
HOSE
CONNECTIONS
SOLENOID
VALVE
MECHANICAL
SEAL OIL
RESERVOIR
Q Range Pump Components
