Parts, Powerstop scissor breakdown, Rear of restraint – Poweramp POWERSTOP SERIES User Manual
Page 26
24
4111-0014 — July 2013
Item
Quantity
Part Number
Description
1
3
9413-0063
Bar Assembly - Tapped W/Bushings
2
4
9413-0064
Bar Assembly - W/Bushing
3
1
9413-0065
Bar Assembly - Notched
4
2
0941-0011
Spring Extension
5
4
2101-0165
Socket Head Shoulder Bolt
6
4
2101-0189
E-Clip
7
2
9202-0042
Pin - Long
8
2
9413-0044
Spring Plate Weldment
9
16
9461-0006
Flanged Bearings
1
9413-0062
Scissor Lift Subassembly

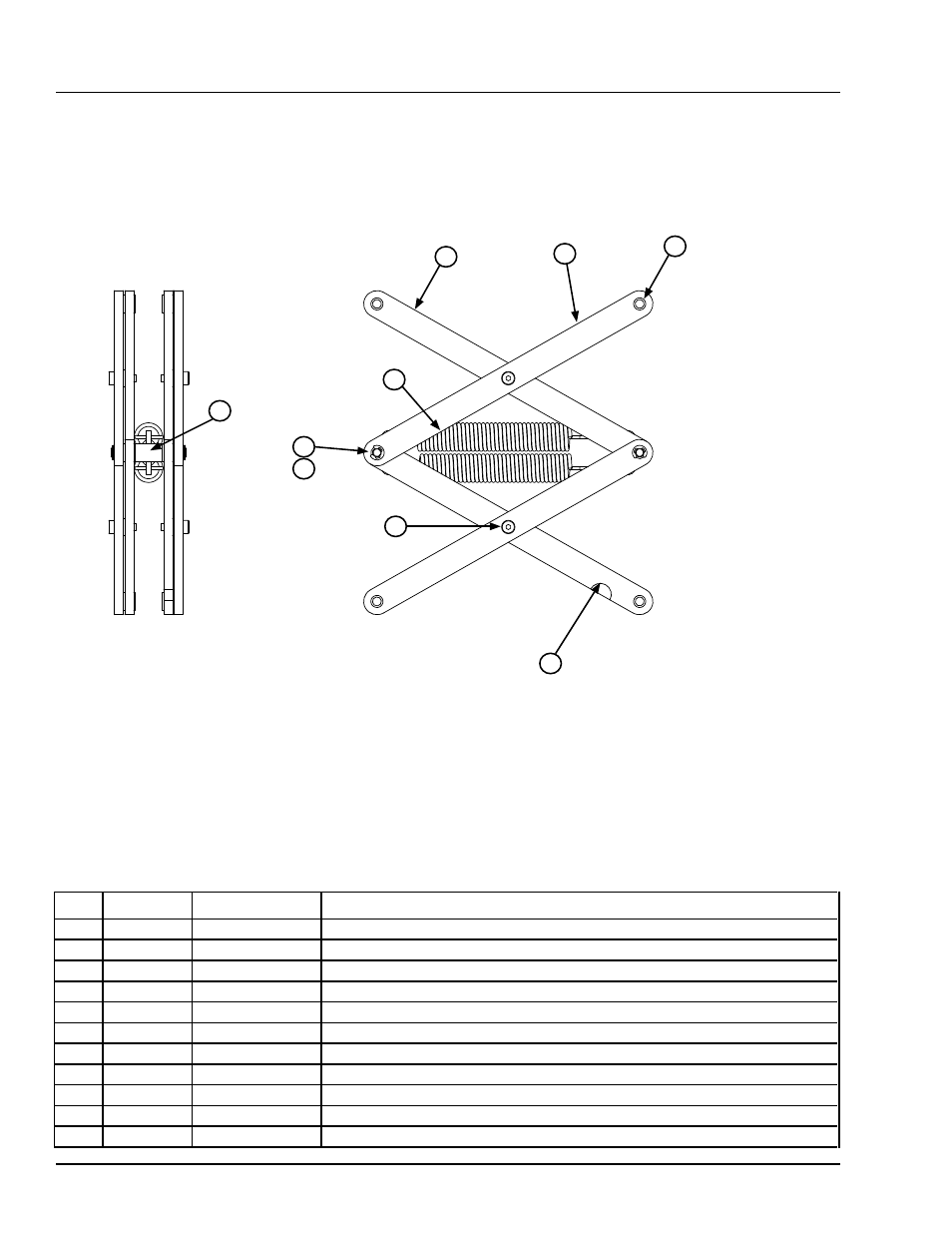

PowerStop Scissor Breakdown
PARTS
TOLERANCES
(UNLESS OTHERWISE NOTED)
FRACTIONAL: 1/32"
DECIMAL:
.00 = .01"
.000 = .005"
ANGULAR: 1
DRAWN BY
CHECKED BY
DRAWING NO.
DATE
NMW
4/30/2013
S Y S T E M S, I N C.
L o a d i n g D o c k E q u i p m e n t
P O W E R A M P
M C G U I R E
D L M
This print is the property of Systems, Inc. and represents a proprietary article in which Systems, Inc. retains any and all patent and other rights, including exclusive rights
of use and/or manufacture and/or sale. Possession of this print does not convey any permission to reproduce, print or manufacture the article or articles shown therein,
such permission to be granted only by written authorization signed by an officer or other authorized agent of Systems,Inc. thereof.
MATERIAL
STOCK NO.
9413-0062
SCISSOR LIFT ASSY,PSTOP
3
1
2
4
8
6
7
5
Rear of Restraint
9
