Poweramp POWERSTOP SERIES - Manual (Page 24)

22
4111-0014 — July 2013
PARTS

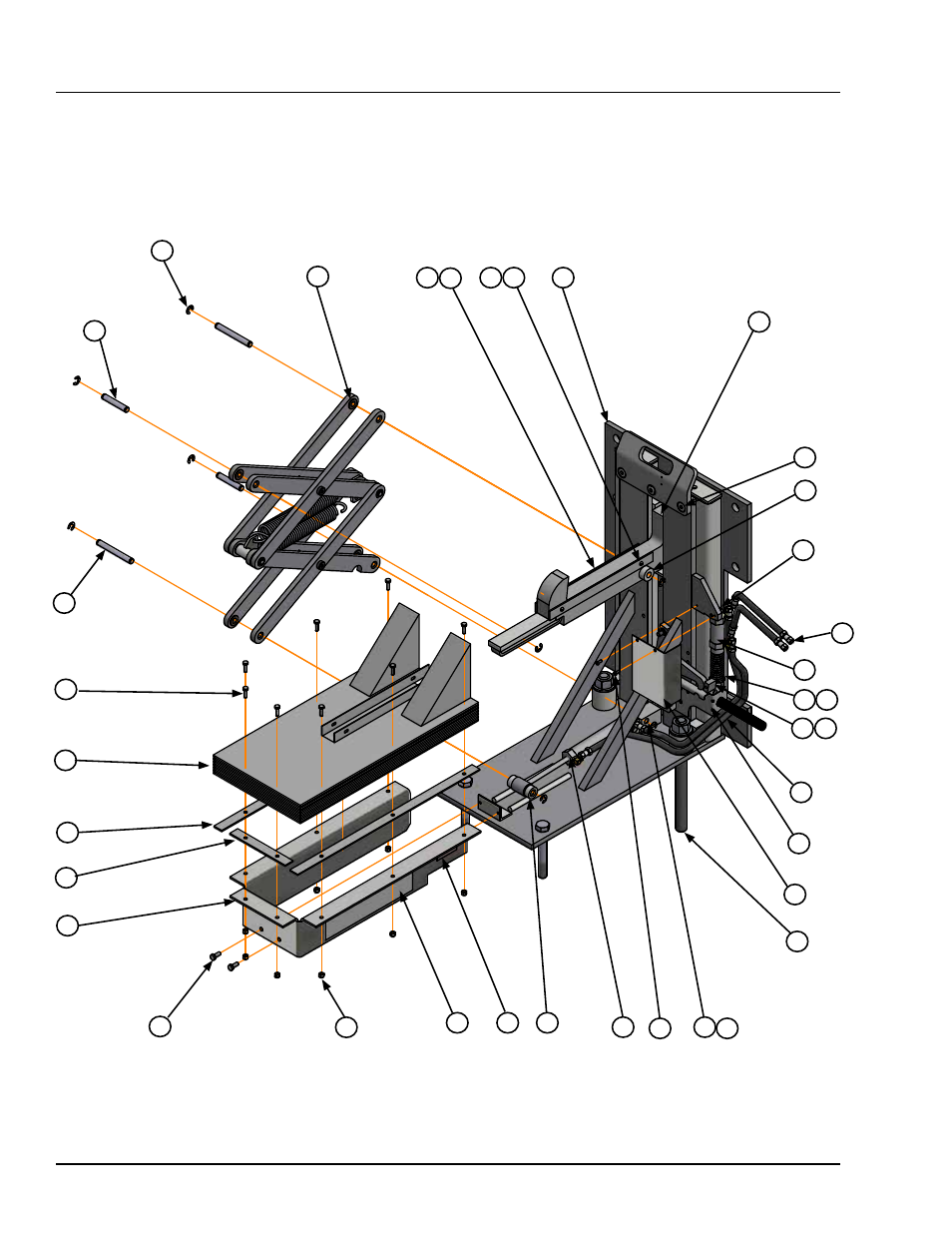

PowerStop A (Hydraulic) Parts Breakdown BILL OF MATERIAL
SIZE DESCRIPTION PART NO. QTY ITEM
BELLOWS W/ 1 +13-1/2 STRIP 0191-0025 1 1
1" STROKE HYD CYLINDER ASM 0524-0063 1 2
5-3/4" STROKE HYD CLINDER ASM 0524-0064 1 3
PROX LIMIT SWITCH - NC KIT 0615-0037 1 4
2 X 4 X 4 DECAL - SERIAL NO 1751-0010 1 5
3-1/4 X 14-1/2 DECAL - POWERAMP/POWERSTOP 1751-0444 1 6
5/16-18 UNC X 3/4 HHCS - GRADE 2 - ZINC PLATED 2101-0009 2 7
5/16-18 UNC NYLON LOCK NUT 2101-0039 1 8
1/2-13 UNC HEX NUT - ZINC PLATED 2101-0041 1 9
1/2 LOCK WASHER 2101-0055 1 10
1/4-20 UNC X 7/8 HHCS - GRADE 5 - ZINC PLATED 2101-0084 8 11
5/16-18 UNC X 1-3/4 HHCS - GRADE 5 - ZINC PLATED 2101-0098 1 12
1/4-20 UNC NYLON LOCK NUT 2101-0143 8 13
10-24 UNC X 2-1/4 RHMS - SLOTTED 2101-0150 2 14
#10-24 UNC NYLON LOCK NUT 2101-0151 2 15
5/16" DIA WASHER - FLAT - ZINC PLATED 2101-0163 1 16
1/2 DIA X 5/8 SHOULDER BOLT 2101-0165 1 17
5/16-18 UNC X 1 HHCS - GRADE 5 2101-0187 1 18
5/16-18 UNC X 1-1/4 HHCS - GRADE 5 2101-0188 1 19
1/2" E-RING 2101-0189 8 20
10-32 UNF X 1-3/4 RHMS - PHILLIPS 2101-0202 2 21
1/2-13 UNC X 1 FLAT HEAD CAP SCREW 2101-0212 3 22
ANCHOR KIT 2103-0001 1 23
1/2 DIA PIN - PIVOT - LONG 9202-0042 2 24
1/2 DIA PIN - PIVOT - SHORT 9202-0043 2 25
16 GA X 5.00 X 6.00 LG SHROUD - CYLINDER 9411-0024 1 26
7 GA X 11 X 23,ZINC PLATED SHROUD,PSTOP,BELLOWS MTG 9411-0028 1 27
1-1/4 OD X 9/16 ID X 5/8 TUBE 9412-0161 2 28
1/8 X 1 X 7.00 LG BAR,BELLOWS MTG,PSTOP,FRONT 9412-0201 1 29
1/8 X 1 X 23.00 LG BAR,BELLOWS MTG,PSTOP,SIDE 9412-0202 2 30
1/8 X 1 X 13.00 LG BAR,BELLOWS MTG,PSTOP,TOP 9412-0215 2 31
LOW PROFILE,YLW DICHROMATE RSTRNT WLDT,PSTOP,SINGLE STEP 9413-0055 1 32
SCISSOR LIFT ASSY,PSTOP 9413-0062 1 33
1-1/8 OD X 11/16 ID X 0.53 LG SPACER ASSY,PSTOP-A,YLW DICH 9413-0069 2 34
YLW DICH PLUS SS RELEASE LEVER ASSY,PSTOP-A 9413-0071 1 35
PROX SW ASSY UPPER 9413-0112 1 36
BAR, ZINC W/SUPER STEEL DEFLECT LIP, POWERSTOP/STOP 9413-0120 1 37
W/O UPPER LIMIT SWITCH BASE WLDT,PSTOP,27",ZINC PLATE 9414-0046 1 38
#4 JICF SWIVEL BOTH ENDS HYD HOSE ASM - 1/4"100R1 X 24.00 9904-0097 1 39
#4 JICF SWIVEL BOTH ENDS HYD HOSE, 1/4" 100R1 X 96 LG 9904-0119 1 40
TOLERANCES
(UNLESS OTHERWISE NOTED)
FRACTIONAL:  1/32"
DECIMAL:
.00 =
 .01"
.000 =  .005"
ANGULAR:  1 
DRAWN BY CHECKED BY
DRAWING NO.
DATE
JX 5/4/2006
9415-0027
FINAL ASM - POWERSTOP
S Y S T E M S, I N C.
L o a d i n g D o c k E q u i p m e n t
P O W E R A M P
D L M
This print is the property of Systems, Inc. and represents a proprietary article in which Systems, Inc. retains any and all patent and other rights, including exclusive rights
of use and/or manufacture and/or sale. Possession of this print does not convey any permission to reproduce, print or manufacture the article or articles shown therein,
such permission to be granted only by written authorization signed by an officer or other authorized agent of Systems,Inc. thereof.
27" LG - LOW - A
26 3/64 REF
27 REF
18 REF
NOTE DESCRIPTION
1 1" X 13-1/2" VELCRO STRIPS COME ATTACHED TO BELLOWS.
9 39
B 12-039 2/12/13 9413-0120 WAS 9413-0087
1
9
7 5 6
3 8
4
2
18
29
34
20
33 15
16
37
14 10
36
24
19
32
28
27
11
25
17
23
22
31 35 30 12 13
26
21
