9
4111-0014 — July 2013
INTRODUCTION
General Information
PowerStop vehicle restraints are available in the
following models and options:
PowerStop M
Mechanical PowerStop
PowerStop M-ML
Mechanical PowerStop
Manual Inside and Outside Lights
PowerStop M-AL
Mechanical PowerStop
Automatic Inside and Outside Lights
PowerStop A-ML
Automatic PowerStop
Manual Lights
PowerStop A-AL
Automatic PowerStop
Automatic Inside and Outside Lights
Note:
All PowerStop models with the standard two level
restraint hook have the same service range of 12” to
29-1/2” (304.8 mm to 749.3 mm)
With the optional Low Profile restraint hook the
service range is 10” to 27-1/2” (254 mm to 698.5 mm)
Call Systems, Inc. to discuss available options to
meet your specific needs.
The Automatic (hydraulic) PowerStop series vehicle
restraint comes equipped with an electrical control
panel, which allows push button operation of the
vehicle restraint functions. Each PowerStop dock
vehicle restraint unit and control panel has been
factory prewired and tested to ensure satisfactory
operation.
To illustrate which connections are to be made in the
field at installation, electrical drawings are included
with each order or by contacting Systems, Inc.
Technical Services.
Once again, thank you and congratulations on your
purchase of a Systems, Inc. vehicle restraint.
PowerStop Stock Specifications
Congratulations on your choice of a Systems, Inc.
vehicle restraint. This manual covers the PowerStop
series hydraulic vehicle restraint.
Designed by Systems, Inc. to be a marvel of
simplicity and efficiency, your vehicle restraint, when
properly installed, will provide many years of trouble-
free performance with an absolute minimum of
maintenance. To obtain maximum performance and
longest possible use, a simple program of preventive
maintenance is recommended.
Manual PowerStop Vehicle Restraint
Specification Sheet and Submittal
• Low Profile, Non-impact Design (wall or
driveway mount)
• Unique Dual Locking Restraint Arm To
Minimize “Trailer Creep”
• Restraining Force In Excess of
30,000 lb Average
• Protective Debris Guard
• Industrial Powder Coated Finish
• Designed to Accommodate Rear Impact Guard
(RIG) Outlined in 1998 NHTSA Regulation
• 1 Year Parts & Labor Warranty
Poweramp z Division of Systems, Inc. z W194 N11481 McCormick Dr. z Germantown, WI 53022
800.643.5424 z fax: 262.255.4199 z www. DockSystemsInc.com

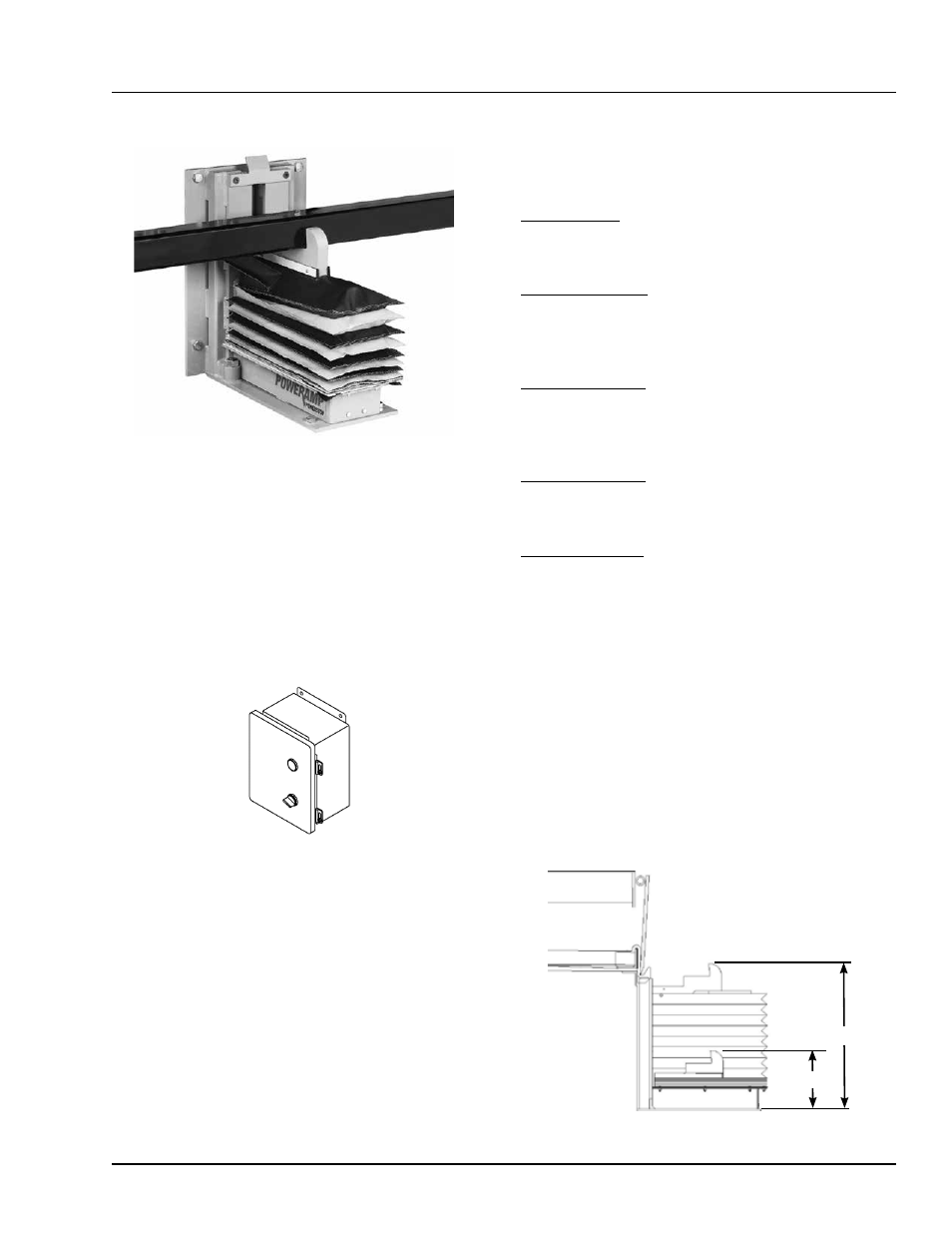

STANDARD FEATURES FOR THE MANUAL POWERSTOP VEHICLE RESTRAINT
PowerStop MML Panel Shown
Manual Dock Alert™ Communication System
Control Panel, Lights and Signs
are part of the optional
Dock Alert™ Communication System
12”
29 ½”
6 3/8”
16 7/8”
11 3/8”
8”
8”
8”
3 1/2”
73 ½”
3 1/2”
5 1/2”
29 ½”
12”
