ADTRAN OPTI-6100 SDH - Manual (Page 2)

STM-1/4 Optical Access MUX
Specifications are subject to change without notice. OPTI-6100 is a trademark, and ADTRAN is a registered trademark of ADTRAN, Inc.
All other registered trademarks and trademarks mentioned in this publication are the property of their respective owners.
Product Specifications
Front Panel Features
■ SCM module: Status and Alarm LEDs
■ OMM, DS3, E1 Trib modules: Status, Alarm, Online,
and Test LEDs
■ Ethernet 10/100 modules: Status, Link, and
Activity LEDs
Mechanical
■ Dimensions MX: 89 mm H X 445 mm W X 293 mm D
■ Dimensions SMX: 89 mm H X 216 mm W X 293 mm.D
■ Weight MX: Chassis 3.9 kg, 6.4 kg fully loaded
■ Weight SMX: Chassis 2.1 kg, 3.2 kg fully loaded
■ Mounting MX: Rackmount
■ Mounting SMX: Rackmount or wallmount
■ Fiber connectors: SC, LC
■ Coax connectors: BNC
■ E1 connectors: Champ
■ Fan assembly: 1U high with integrated alarming
Interfaces
Network Interfaces
■ STM-1 LR, IR (Terminal or SNCP), 1310,1550 nm
■ STM-4 LR, IR (Terminal or SNCP), 1310,1550 nm
Note: STM-1/4 SNCP modules have integrated any-to-any
VC12 and VC3 cross connect capabilities
Tributary Interfaces
■ E1
■ DS3
■ STM-1 IR, LR, MM
■ STM-4 IR, LR, MM
■ Ethernet 10/100/1000
Ethernet over SDH
■ 10/100BaseT, HI/LO VCAT
■ GFP (G.7041)
■ X.86
■ Bridge, L2 switch modes
OPTI-6100 SDH Multiplexer
Protection
■ Network: 1+1 (Linear MSP or SNCP) (optional)
■ Tributary: 1:1 (optional)
Regulatory Standards
■ NEBS Level 3
■ ETS 300 386
■ EN 60950
■ EN 55022
■ ETS 300 019
■ CE Mark
Technical Standards
■ ITU-T G.703
■ ITU-T G.707
■ ITU-T G.957, G.958
■ ITU-T G.813
■ ITU-T G.783
■ ITU-T G.784
■ ITU-T G.7041
Electrical
■ ±20 to 60 VDC, optional AC power supply is available
Management
■ Local: Craft port on front panel
■ Remote: TL1 (DCC), SNMP, Telnet, Ethernet
■ Environmental alarms: 19 inputs (with EFANM)
Environmental
■ Operating temperature: –40ºC to +65ºC
■ Storage temperature: –40ºC to +85ºC
■ Relative humidity: 5 to 95 percent, noncondensing
Ordering Information
For equipment ordering information visit:
http://www.adtran.com/opti-6100
ADTRAN, Inc.
Attention:
International Department
901 Explorer Boulevard
Huntsville, Alabama 35806
USA
www.adtran.com
U.S. Headquarters
+1 256 963 8000 voice
+1 256 963 6300 fax
[email protected]
International
Customer Service
+1 256 963 8716 voice
Asia Pacific—
Beijing, China
+86 10 8857 6415 voice
+86 10 8857 6417 fax
[email protected]
Asia Pacific (Other than
China and Australia)—
Hong Kong, China
+852 2824 8283 voice
+852 2824 8928 fax
[email protected]
Asia Pacific—
Guangzhou, China
+86 20 8384 6015 voice
+86 20 8384 7127 fax
[email protected]
Asia Pacific—
Melbourne, Australia
+61 3 9658 0500 voice
+61 3 9658 0599 fax
[email protected]
Europe/Middle East/Africa—
Bad Homburg, Germany
+49 6172 483 2304 voice
+49 6172 483 2305 fax
[email protected]
Europe/Middle East/Africa—
Dublin, Ireland
+353 1 669 4790 voice
+353 1 669 4791 fax
[email protected]
Latin America/Caribbean
+1 954 474 4424 voice
+1 954 474 1298 fax
[email protected]
Mexico
+1 954 474 4424 voice
+1 954 474 1298 fax
[email protected]
ADTRAN is an ISO 9001, ISO 14001
and a TL 9000 certified supplier
I61184501L1G-8B June 2006
Copyright © 2006 ADTRAN, Inc.
All rights reserved.

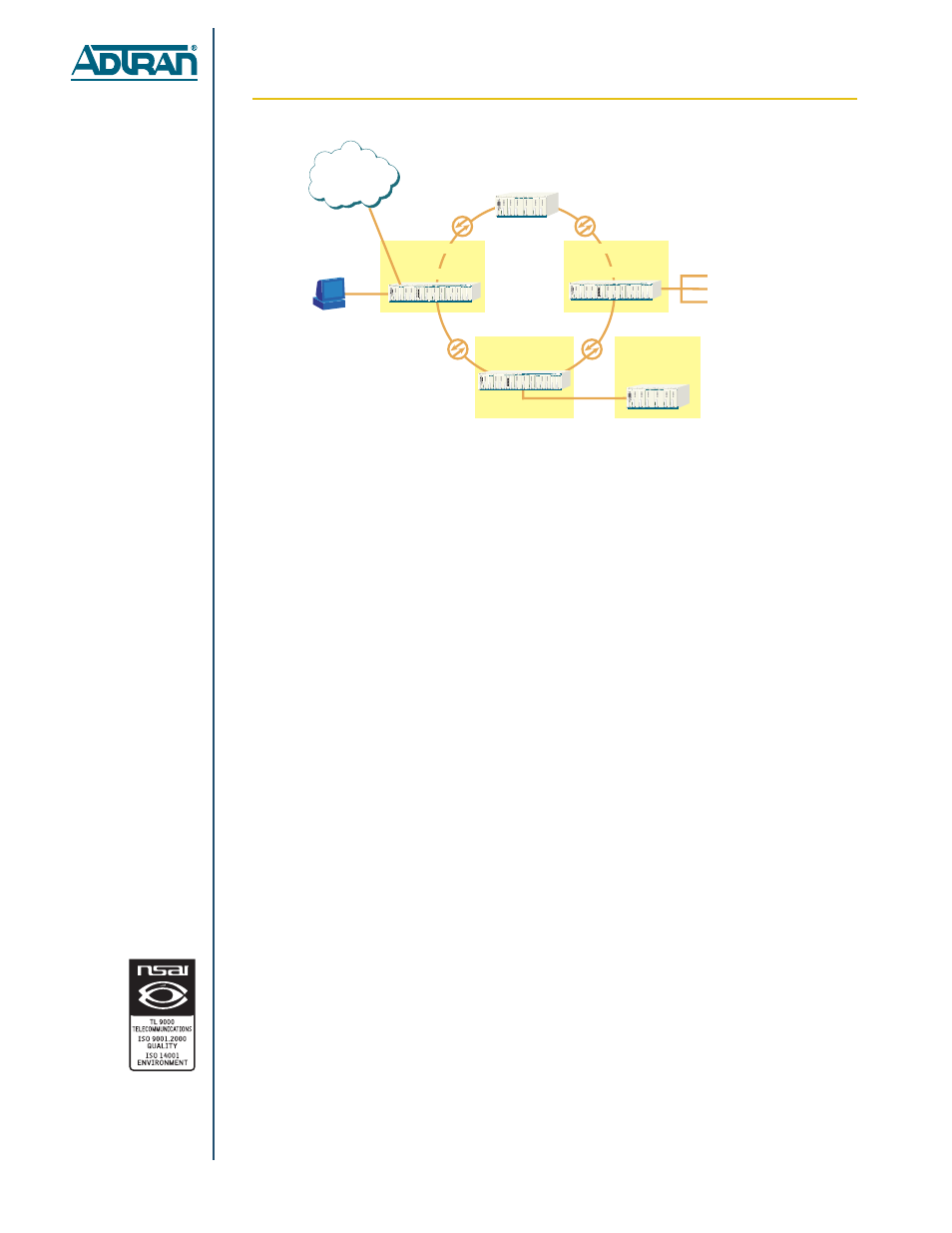

OPTI-6100
Central Office Secondary
Central Office
SDH RING-TO-TERMINATION POINT SDH RING-TO-TERMINATION POINT
SDH
RING
SDH
RING
TL1 or SNMP
Management System
or Total Access EMS
Management, alarms, and
maintenance from a distant
OPTI-6100 over a SDH ring
to the Central Office
MS12 MS11 *3 MS10 MS9 *1*3 MS8 MS7 *1 MS6 MS5 *3 MS4 MS3 *1 MS2 MS1 *3 HS2 HS1 SCM
STATUS ALARM ONLINE TEST
DS3EC1M 1184503L1 STATUS ALARM ONLINE TEST
DS3EC1M 1184503L1 STATUS ALARM ONLINE TEST
DS3EC1M 1184503L1 MS BLANK 1184505L1 MS BLANK 1184505L1 MS BLANK 1184505L1 MS BLANK 1184505L1 MS BLANK 1184505L1 STATUS ALARM ONLINE TEST
DS1M 1184513L1 STATUS ALARM ONLINE TEST
DS1M 1184513L1 STATUS ALARM ONLINE TEST
DS1M 1184513L1 STAT ETHM 1184510L1
ACT
LNK E N E T
1 E N E T
2 E N E T
3
STATUS ALARM ONLINE TEST
OMM12LR
1184504L1 STATUS ALARM ONLINE TEST
OMM12LR
1184504L1 SCM 1184500L1
ACO HST
STAT ALM
MS4 MS3 * MS2 MS1 * HS2 HS1 SCM
STATUS ALARM ON LINE TEST
DS3EC1M 1184503L1 STATUS ALARM ON LINE TEST
DS3EC1M 1184503L1 STATUS ALARM ON LINE TEST
DS1M 1184513L1 STATUS ALARM ON LINE TEST
DS1M 1184513L1 STATUS ALARM ON LINE TEST
OMM3
1184502L1 STATUS ALARM ON LINE TEST
OMM3
1184502L1 SCM 1184500L1
ACO HST
STAT ALM OPTI- SMX
OPTI-6100
MS4 MS3 * MS2 MS1 * HS2 HS1 SCM
STATUS ALARM ON LINE TEST
DS3EC1M 1184503L1 STATUS ALARM ON LINE TEST
DS3EC1M 1184503L1 STATUS ALARM ON LINE TEST
DS1M 1184513L1 STATUS ALARM ON LINE TEST
DS1M 1184513L1 STATUS ALARM ON LINE TEST
OMM3
1184502L1 STATUS ALARM ON LINE TEST
OMM3
1184502L1 SCM 1184500L1
ACO HST
STAT ALM OPTI- SMX
OPTI-6100
MS12 MS11 *3 MS10 MS9 *1*3 MS8 MS7 *1 MS6 MS5 *3 MS4 MS3 *1 MS2 MS1 *3 HS2 HS1 SCM
STATUS ALARM ONLINE TEST
DS3EC1M 1184503L1 STATUS ALARM ONLINE TEST
DS3EC1M 1184503L1 STATUS ALARM ONLINE TEST
DS3EC1M 1184503L1 MS BLANK 1184505L1 MS BLANK 1184505L1 MS BLANK 1184505L1 MS BLANK 1184505L1 MS BLANK 1184505L1 STATUS ALARM ONLINE TEST
DS1M 1184513L1 STATUS ALARM ONLINE TEST
DS1M 1184513L1 STATUS ALARM ONLINE TEST
DS1M 1184513L1 STAT ETHM 1184510L1
ACT
LNK E N E T
1 E N E T
2 E N E T
3
STATUS ALARM ONLINE TEST
OMM12LR
1184504L1 STATUS ALARM ONLINE TEST
OMM12LR
1184504L1 SCM 1184500L1
ACO HST
STAT ALM
OPTI-6100
OPTI-6100
Remote Site Central Office
STM-1/4
Network
E1
DS3
Ethernet
(10/100)
MS12 MS11 *3 MS10 MS9 *1*3 MS8 MS7 *1 MS6 MS5 *3 MS4 MS3 *1 MS2 MS1 *3 HS2 HS1 SCM
STATUS ALARM ONLINE TEST
DS3EC1M 1184503L1 STATUS ALARM ONLINE TEST
DS3EC1M 1184503L1 STATUS ALARM ONLINE TEST
DS3EC1M 1184503L1 MS BLANK 1184505L1 MS BLANK 1184505L1 MS BLANK 1184505L1 MS BLANK 1184505L1 MS BLANK 1184505L1 STATUS ALARM ONLINE TEST
DS1M 1184513L1 STATUS ALARM ONLINE TEST
DS1M 1184513L1 STATUS ALARM ONLINE TEST
DS1M 1184513L1 STAT ETHM 1184510L1
ACT
LNK E N E T
1 E N E T
2 E N E T
3
STATUS ALARM ONLINE TEST
OMM12LR
1184504L1 STATUS ALARM ONLINE TEST
OMM12LR
1184504L1 SCM 1184500L1
ACO HST
STAT ALM
