• Admin P2P: Some of the rapid state transactions that are possible within RSTP are dependent upon
whether the port concerned can only be connected to exactly one other bridge (i.e. it is served by a
point-to-point LAN segment), or can be connected to two or more bridges (i.e. it is served by a shared
medium LAN segment). This function allows the P2P status of the link to be manipulated
administratively. True is P2P enabling. False is P2P disabling.
• Admin Edge: The port directly connected to end stations won’t create bridging loop in the network. To
configure the port as an edge port, set the port to “True” status.
• Admin Non Stp: The port includes the STP mathematic calculation. True is not including STP
mathematic calculation. False is including the STP mathematic calculation.
• Click Apply .

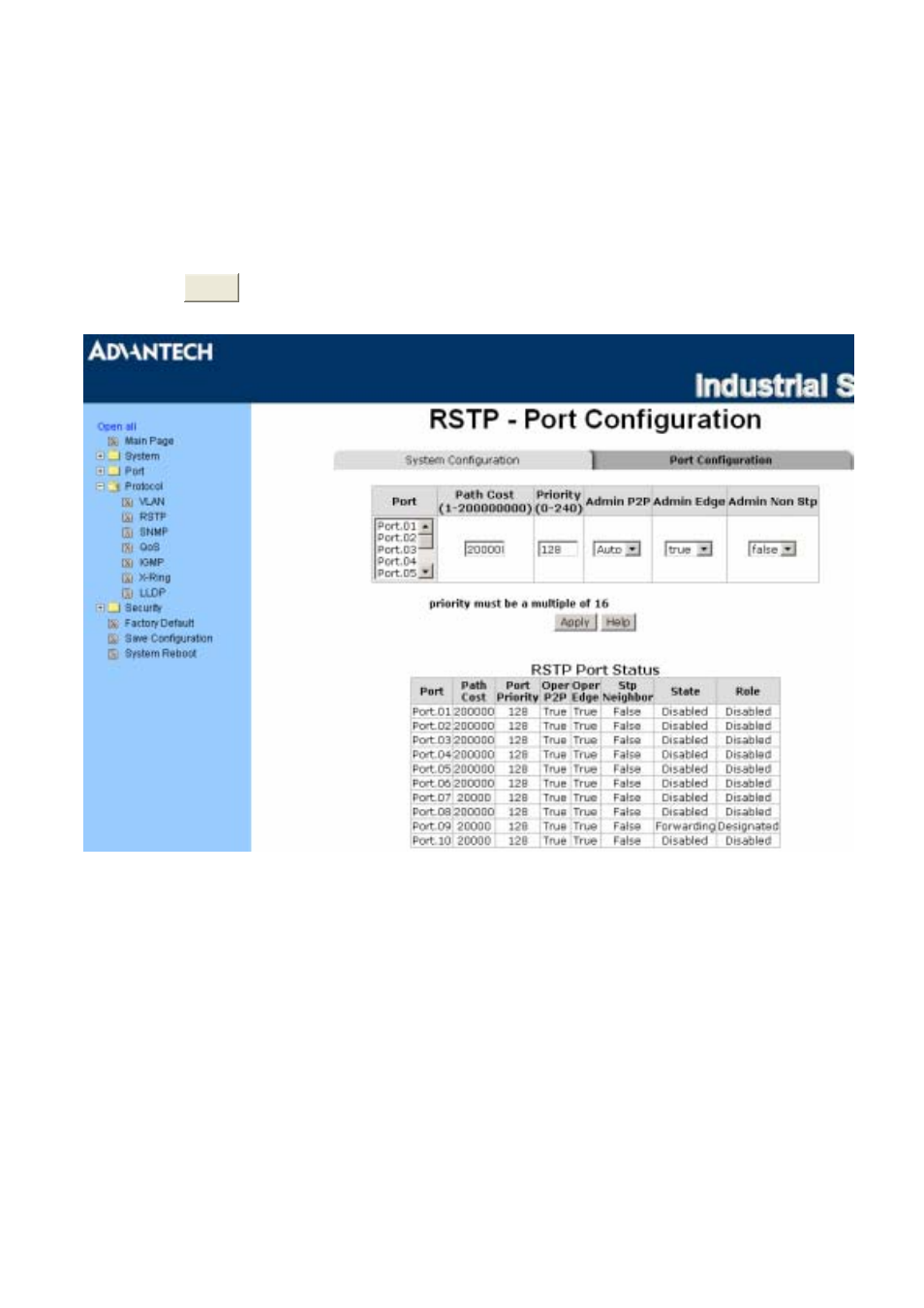

Figure 3.41: RSTP Port Configuration interface
